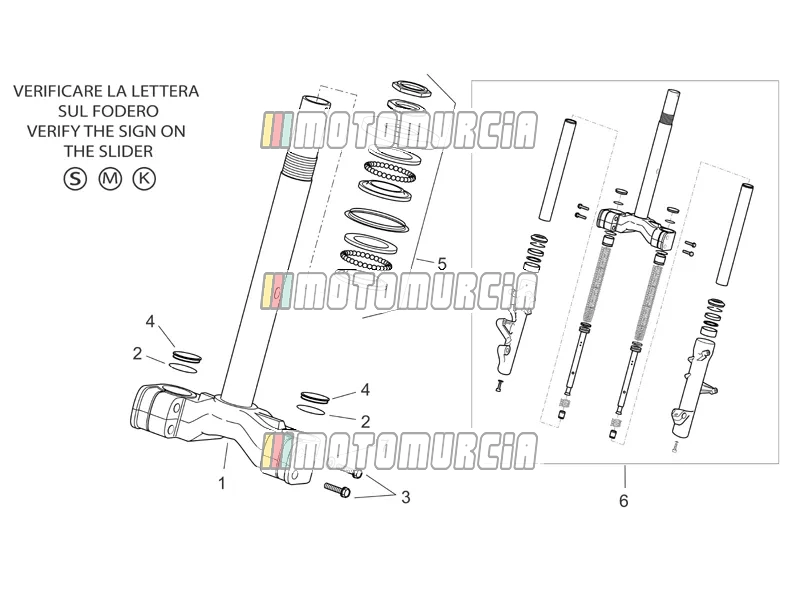

Exploded view — Front Fork I

Products

1 Stem base AP8163221 No longer available

• AP8163221 Stem base
  No longer available
•

  Fork yoke Marzocchi Piaggio Group · AP8163279 Backorder

  € 730,28

  Add to cart
•

  Fork yoke Kaifa Piaggio Group · AP8163307 Backorder

  € 135,52

  Add to cart

2 Seeger Available AP8163304

•

  Circlip Piaggio Group · AP8163304 · Quantity needed: 2 Available

  € 1,37

  Add to cart
•

  O-Ring Piaggio Group · AP8123695 · Quantity needed: 2 Backorder

  € 8,34

  Add to cart
•

  Locking Ring Piaggio Group · AP8123756 · Quantity needed: 2 Available

  € 1,43

  Add to cart

3 Screw Backorder AP8163002

•

  Flanged Screw M8x35 Piaggio Group · AP8163002 · Quantity needed: 4 Backorder

  € 4,16

  Add to cart
• AP8163222 Screw M8x30 Quantity needed: 4
  No longer available

4 Plug Available 600136

•

  Lock Piaggio Group · 600136 · Quantity needed: 2 Available

  € 7,14

  Add to cart
•

  Screw Plug Piaggio Group · AP8123759 · Quantity needed: 2 Backorder

  € 6,45

  Add to cart
•

  Lid Piaggio Group · AP8163303 · Quantity needed: 2 Available

  € 6,41

  Add to cart

5 Steering bearing kit AP8163239 No longer available

• AP8163239 Steering bearing kit
  No longer available

6 Complete front fork 85188R No longer available

• 85188R Complete front fork
  No longer available

7 Washer Backorder 599510

•

  Gasket Piaggio Group · 599510 · Quantity needed: 4 Backorder

  € 3,24

  Add to cart
•

  Washer Piaggio Group · AP8163228 · Quantity needed: 4 Backorder

  € 0,99

  Add to cart
