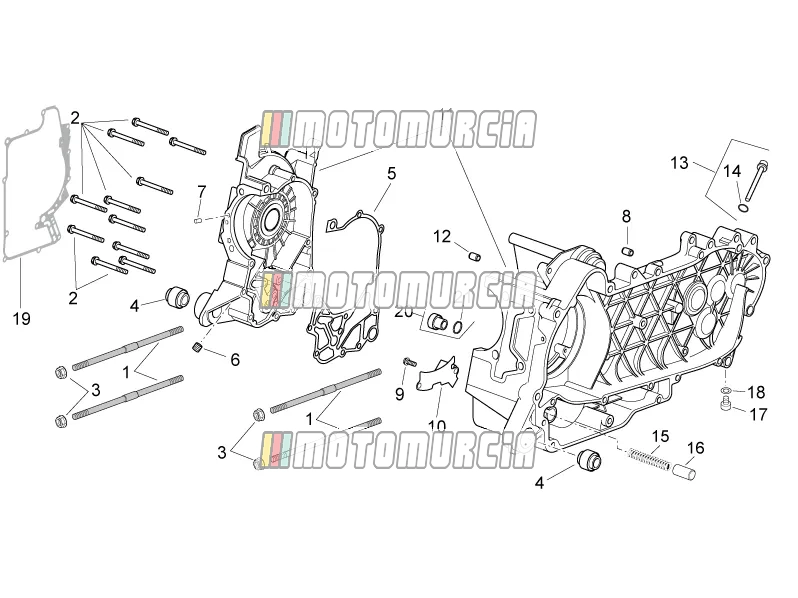

Exploded view — Crankcase

Products

1 Stud bolt (250 - 300 - 350 ccm) Available 1A003628R

•

  Spacer bolt Piaggio Group · 1A003628R · Quantity needed: 4 Available

  € 11,52

  Add to cart

2 Screw Available B016425

•

  Flanged Screw M6x60 Piaggio Group · B016425 · Quantity needed: 11 Available

  € 1,82

  Add to cart

3 Nut (M8x1,25) Available 411296

•

  Standard nut M8x1.25 Piaggio Group · 411296 · Quantity needed: 4 Available

  € 2,35

  Add to cart

4 Silentblock - engine mount Available 486081

•

  Silentblock Piaggio Group · 486081 · Quantity needed: 2 Available

  € 10,29

  Add to cart

5 Gasket - crankcase Available 875111

•

  Housing Gasket Piaggio Group · 875111 Available

  € 18,11

  Add to cart

6 Cover M12x1,5 Available B015433

•

  Screw Plug M12x1.5 Piaggio Group · B015433 · Quantity needed: 2 Available

  € 8,86

  Add to cart

7 Nozzle Available 484034

•

  Jet Piaggio Group · 484034 Available

  € 8,58

  Add to cart

8 Dowel pin Available B015956

•

  Adapter Sleeve 9,5x15 Piaggio Group · B015956 · Quantity needed: 2 Available

  € 1,32

  Add to cart

9 Screw Available 1A003111

•

  Screw M5x10 Piaggio Group · 1A003111 Available

  € 3,06

  Add to cart

10 Upper oil bulkhead Available 485047

•

  Oil Partition Plate, top Piaggio Group · 485047 Available

  € 13,75

  Add to cart

11 Crankcase assembly 1° cat 1A0009740A No longer available

• 1A0009740A Crankcase assembly 1° cat
  No longer available
• 1A0009740B Crankcase assembly 2° cat
  No longer available

12 Dowel pin Available 277916

•

  Adapter Sleeve Piaggio Group · 277916 Available

  € 7,27

  Add to cart

13 Complete oil level dipstick Available 832130

•

  Oil dipstick Piaggio Group · 832130 Available

  € 6,34

  Add to cart

14 Gasket ring Available 827085

•

  Oil seal 14,43x9,19x2,62 mm Piaggio Group · 827085 Available

  € 0,99

  Add to cart

15 Spring Available 485655

•

  Spring Piaggio Group · 485655 Available

  € 1,65

  Add to cart

16 Oil pressure valve Available 829661

•

  Oil pressure Valve Piaggio Group · 829661 Available

  € 12,62

  Add to cart

17 Screw Available 269755

•

  Screw M8x12 Piaggio Group · 269755 Available

  € 1,59

  Add to cart

18 Washer Available 485703

•

  Washer 8,2x12x1 mm Piaggio Group · 485703 Available

  € 1,25

  Add to cart

19 Gasket - generator cover Available 840504

•

  Gasket Piaggio Group · 840504 Available

  € 11,50

  Add to cart

20 Filter door insert Available 845861

•

  Filter Insert Piaggio Group · 845861 Available

  € 11,27

  Add to cart

21 O-Ring Available 431065

•

  Oil seal Piaggio Group · 431065 Available

  € 1,21

  Add to cart
