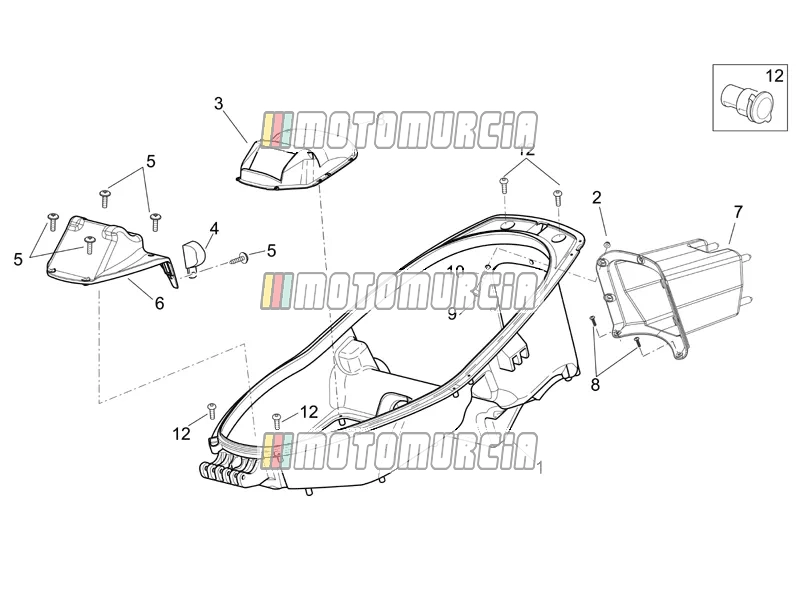

Exploded view — Undersaddle

‹ Back to model

Aprilia Atlantic 400-500 Sprint 2008

Products

1 Helmet compartment AP8178851 No longer available

AP8178851 Helmet compartment
No longer available

2 Nut AP8152306 No longer available

AP8152306 Nut Quantity needed: 5
No longer available

3 Cover Backorder AP8178869

Lid Piaggio Group · AP8178869 Backorder

€ 23,76

4 Light window Backorder AP8212733

Lamp Piaggio Group · AP8212733 Backorder

€ 8,22

5 Screw Available AP8150413

Thread Screw 3,9x14 mm, stainless steel Piaggio Group · AP8150413 · Quantity needed: 5 Available

€ 1,69

6 Battery cover Backorder AP8178867

Battery Cover Piaggio Group · AP8178867 Backorder

€ 22,29

7 Glove holder AP8178868 No longer available

AP8178868 Glove holder
No longer available

8 Screw Available AP8150509

Thread Screw Piaggio Group · AP8150509 · Quantity needed: 9 Available

€ 2,35

9 Screw Available AP8152298

Flanged Screw M5x16 Piaggio Group · AP8152298 · Quantity needed: 5 Available

€ 3,80

10 Spacer Available AP8120253

Spacer disc Piaggio Group · AP8120253 · Quantity needed: 5 Available

€ 1,88

11 Screw Available AP8152108

Screw M6x15 Piaggio Group · AP8152108 · Quantity needed: 4 Available

€ 2,18

12 Socket Backorder B063212

On-board Socket Piaggio Group · B063212 Backorder

€ 55,32
