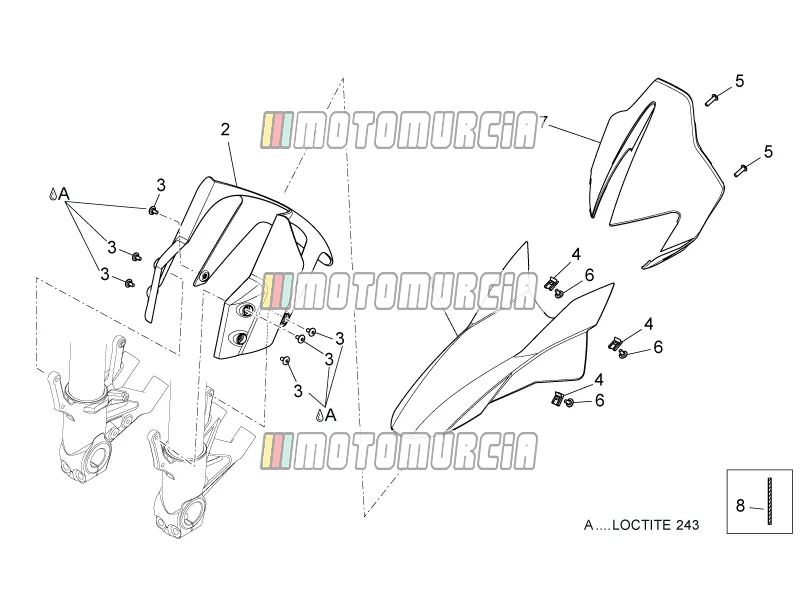

Exploded view — Front Body - Front Mudguard

‹ Back to model

Aprilia Dorsoduro 750 ABS 2012

Aprilia Dorsoduro 750 ABS 2012

Front Body - Front Mudguard

Products

1 Front mudguard Available B044270

Mudguard without decals, front, red Piaggio Group · B044270 Available

€ 349,86

2 Low mudguard Available 856850

Mudguard front Piaggio Group · 856850 Available

€ 72,03

3 Screw Available AP8152339

Flanged Screw M5x9 Piaggio Group · AP8152339 · Quantity needed: 6 Available

€ 2,35

4 Clip nuts (M5) Available AP8102375

Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 3 Available

€ 2,47

5 Screw Available AP8150413

Thread Screw 3,9x14 mm, stainless steel Piaggio Group · AP8150413 · Quantity needed: 4 Available

€ 1,69

6 Screw Available 2B014101

Screw Piaggio Group · 2B014101 · Quantity needed: 3 Available

€ 3,78

7 Front fairing, black Available 856857

Cover, without decals black Piaggio Group · 856857 Available

€ 257,40

8 Biadhesive Available 860447

Glue Sponge Piaggio Group · 860447 · Quantity needed: 2 Available

€ 14,65
