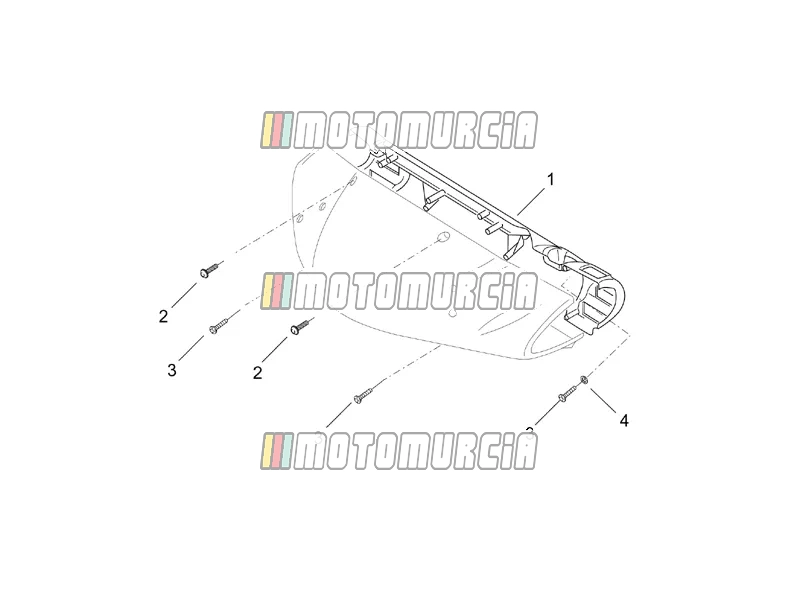

Exploded view — Front Body - Dashboard

‹ Back to model

Aprilia Leonardo 125-150 ST 2003

Products

1 Dashboard panel, grey AP8168656 No longer available

AP8168656 Dashboard panel, grey
No longer available
AP8158515 Dashboard panel, blue
No longer available
AP8158550 Dashboard panel, grey
No longer available
AP8178293 Dashboard panel, blue
No longer available
Handlebar Fairing, rear, grey Piaggio Group · AP8148460 Available

€ 46,22
AP8168674 Dashboard panel, red
No longer available
AP8178306 Dashboard panel, blue
No longer available
AP8158697 Dashboard panel, red
No longer available

2 Screw Available AP8152334

Flanged Screw M3x12 Piaggio Group · AP8152334 · Quantity needed: 4 Available

€ 2,18

3 Screw Available AP8150460

Thread Screw M4x12 Piaggio Group · AP8150460 · Quantity needed: 6 Available

€ 1,86

4 Washer Available AP8150011

Shim 4,3x12x1 mm Piaggio Group · AP8150011 · Quantity needed: 4 Available

€ 2,18
