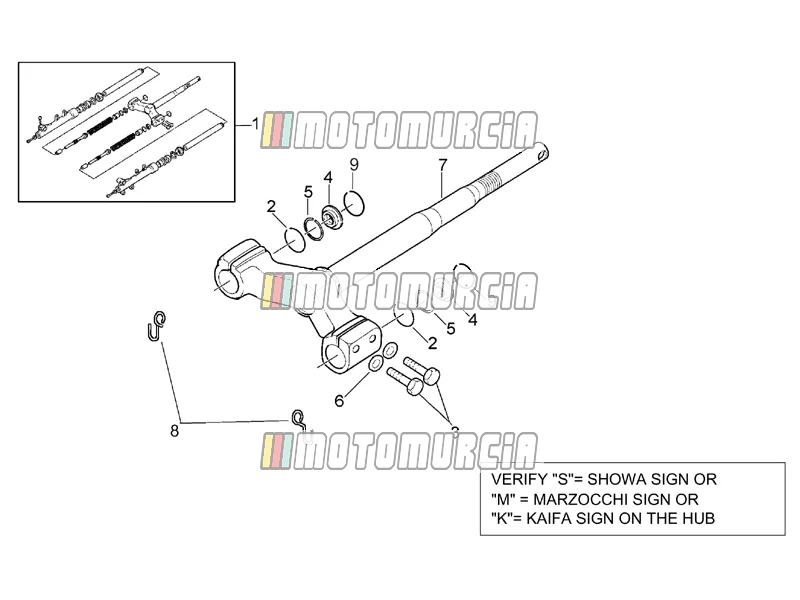

Exploded view — Front Fork - Stem Base

Products

1 Front fork AP8123735 No longer available

• AP8123735 Front fork
  No longer available

2 O-ring Backorder AP8123695

•

  O-Ring Piaggio Group · AP8123695 · Quantity needed: 2 Backorder

  € 8,34

  Add to cart
•

  Locking Ring Piaggio Group · AP8123756 · Quantity needed: 2 Available

  € 1,43

  Add to cart
•

  Oil seal Piaggio Group · AP8163301 · Quantity needed: 2 Available

  € 2,44

  Add to cart

3 Screw (spec) AP8123575 No longer available

• AP8123575 Screw (spec) Quantity needed: 4
  No longer available
• AP8123757 Screw M8x30 Quantity needed: 4
  No longer available

4 Plug Available 600136

•

  Lock Piaggio Group · 600136 · Quantity needed: 2 Available

  € 7,14

  Add to cart
•

  Screw Plug Piaggio Group · AP8123759 · Quantity needed: 2 Backorder

  € 6,45

  Add to cart
•

  Lid Piaggio Group · AP8163303 · Quantity needed: 2 Available

  € 6,41

  Add to cart

5 Seeger Available AP8203950

•

  Circlip Piaggio Group · AP8203950 · Quantity needed: 2 Available

  € 2,84

  Add to cart
•

  Circlip Piaggio Group · AP8163302 · Quantity needed: 2 Available

  € 1,89

  Add to cart
• AP8123760 Stop ring Quantity needed: 2
  No longer available

6 Washer AP8123758 No longer available

• AP8123758 Washer Quantity needed: 4
  No longer available

7 Stem base AP8123694 No longer available

• AP8123694 Stem base
  No longer available

8 Cable-guide AP8144055 No longer available

• AP8144055 Cable-guide Quantity needed: 2
  No longer available

9 Seeger Available AP8163304

•

  Circlip Piaggio Group · AP8163304 · Quantity needed: 2 Available

  € 1,37

  Add to cart
