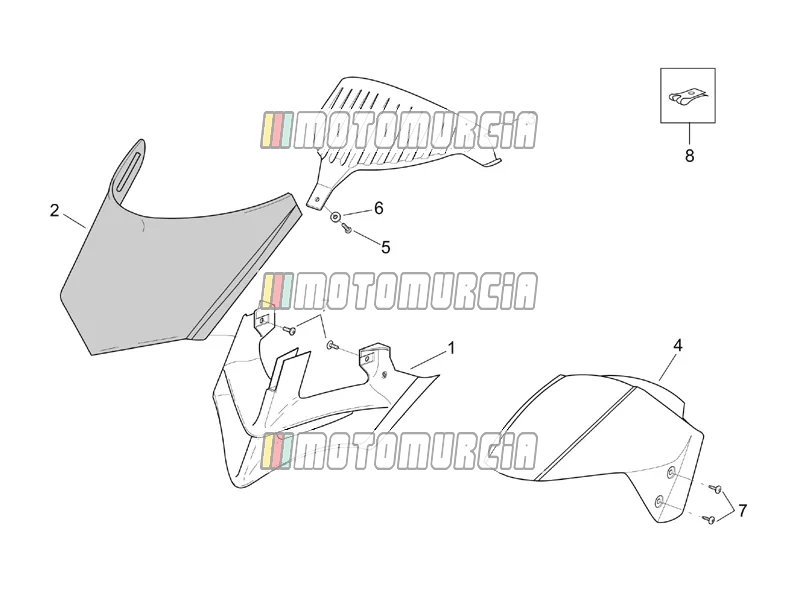

Exploded view — Front Body - Front Fairing

‹ Back to model
Aprilia Leonardo 250-300 (motor.minarelli) 2003 Aprilia Leonardo 250-300 (motor.minarelli) 2003
Front Body - Front Fairing

Products

1 Water cooler grille, black AP8158637 No longer available
  • AP8158637 Water cooler grille, black
    • Colour: Aprilia Black 2001
    • Colour: Aprilia Black 2002
    • Colour: Sbk 2003
    No longer available
  • AP8178635 Water cooler grille, grey
    • Colour: Lead grey 2004
    • Year of manufacture: 2004
    No longer available
  • AP8158691 Water cooler grille, red
    • Colour: Flame Red 2001
    • Colour: Flamingo Red 2001
    • Colour: Flamingo Red 2002
    • Year of manufacture: 2001
    • Year of manufacture: 2002
    No longer available
  • AP8178638 Water cooler grille, grey
    • Colour: Titan Grey 2004
    • Year of manufacture: 2004
    No longer available
  • AP8168668 Water cooler grille, red
    • Colour: Red Tulip 2003
    • Year of manufacture: 2003
    No longer available
  • AP8158512 Water cooler grille, blue
    • Colour: Infinity Blue 2001
    • Colour: Infinity Blue 2002
    • Year of manufacture: 2001
    • Year of manufacture: 2002
    No longer available
  • AP8178644 Water cooler grille, blue
    • Colour: Main Blue 2004
    • Year of manufacture: 2004
    No longer available
2 Front fairing, grey AP8178634 No longer available
  • AP8178634 Front fairing, grey
    • Colour: Lead grey 2004
    • Year of manufacture: 2004
    No longer available
  • AP8178643 Front fairing, blue
    • Colour: Main Blue 2004
    • Year of manufacture: 2004
    No longer available
  • AP8158646 Front fairing, black
    • Colour: Aprilia Black 2001
    • Colour: Aprilia Black 2002
    • Year of manufacture: 2001
    • Year of manufacture: 2002
    No longer available
  • AP8168667 Front fairing, red
    • Colour: Red Tulip 2003
    • Year of manufacture: 2003
    No longer available
  • AP8158523 Front fairing, blue
    • Colour: Infinity Blue 2001
    • Colour: Infinity Blue 2002
    • Year of manufacture: 2001
    • Year of manufacture: 2002
    No longer available
  • AP8178637 Front fairing, grey
    • Colour: Titan Grey 2004
    • Year of manufacture: 2004
    No longer available
  • AP8158702 Front fairing, red
    • Colour: Flame Red 2001
    • Colour: Flamingo Red 2001
    • Colour: Flamingo Red 2002
    • Year of manufacture: 2001
    • Year of manufacture: 2002
    No longer available
3 Upper shield guard, grey Backorder AP8158314
    • Colour: Red Tulip 2003
    • Colour: Titan grey 2003
    Cover, grey Piaggio Group · AP8158314 Backorder · Shipped in 2–4 weeks
    € 32,91
4 Front mudguard, grey AP8156058 No longer available
  • AP8156058 Front mudguard, grey
    • Colour: Titan Grey 2004
    • Colour: Titan grey 2003
    • Year of manufacture: 2003
    • Year of manufacture: 2004
    No longer available
  • AP8126957 Front mudguard, grey
    • Colour: Lead Grey 2001
    • Colour: Lead grey 2004
    • Colour: Plomb Grey 2002
    No longer available
  • AP8126981 Front mudguard
    • Colour: Aprilia Black 2001
    • Colour: Aprilia Black 2002
    • Year of manufacture: 2001
    • Year of manufacture: 2002
    No longer available
  • AP8126976 Front mudguard
    • Colour: Infinity Blue 2001
    • Colour: Infinity Blue 2002
    • Year of manufacture: 2001
    • Year of manufacture: 2002
    No longer available
  • AP8156120 Front mudguard
    • Colour: Main Blue 2004
    • Year of manufacture: 2004
    No longer available
  • AP8126984 Front mudguard (Red)
    • Colour: Flame Red 2001
    • Colour: Flamingo Red 2001
    • Colour: Flamingo Red 2002
    • Year of manufacture: 2001
    • Year of manufacture: 2002
    No longer available
  • AP8156059 Front mudguard (Red)
    • Colour: Red Tulip 2003
    • Year of manufacture: 2003
    No longer available
5 Screw Available AP8152267
  • Screw M5x12 Piaggio Group · AP8152267 Available · Shipped in 3–5 working days
    € 2,54
6 Washer Available AP8150248
    • State police version
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    Shim 5,5x15x1,6 mm Piaggio Group · AP8150248 Available · Shipped in 3–5 working days
    € 1,26
7 Screw Available AP8152298
  • Flanged Screw M5x16 Piaggio Group · AP8152298 · Quantity needed: 6 Available · Shipped in 3–5 working days
    € 3,80
8 Clip nuts (M5) Available AP8102375
  • Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,47
