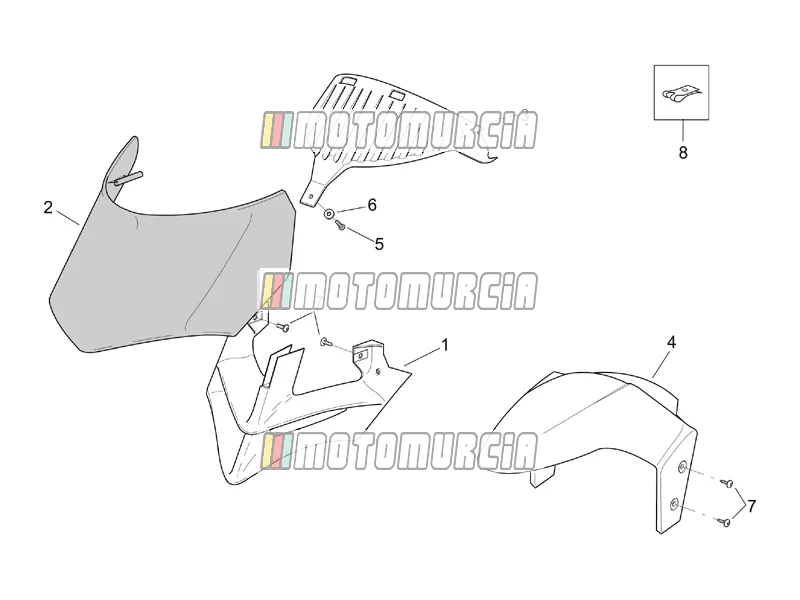

Exploded view — Front Body - Front Fairing

Products

1 Water cooler grille, c.blue AP8148857 No longer available

• AP8148857 Water cooler grille, c.blue
  No longer available
• AP8148323 Water cooler grille, s.yellow
  No longer available
• AP8148968 Water cooler grille, ice green
  No longer available
• AP8248991 Water cooler grille, sh.black
  No longer available
• AP8139432 Water cooler grille, grey
  No longer available
• AP8148293 Water cooler grille, m.red
  No longer available
• AP8139914 Water cooler grille, em.blue
  No longer available

2 Front fairing, grey AP8148370 No longer available

• AP8148370 Front fairing, grey
  No longer available
• AP8148095 Front fairing, sh.black
  No longer available
• AP8148313 Front fairing, m. red
  No longer available
• AP8148867 Front fairing, c.blue
  No longer available
• AP8148322 Front fairing, s.yellow
  No longer available
• AP8139940 Front fairing, em.blue
  No longer available
• AP8148967 Front fairing, i.green
  No longer available

3 Upper shield guard, grey AP8139324 No longer available

• AP8139324 Upper shield guard, grey
  No longer available
• AP8148105 Upper shield guard, green
  No longer available
• AP8139905 Upper shield guard, blue
  No longer available
• AP8149604 Upper shield guard, grey
  No longer available

4 Front mudguard, i.green AP8126844 No longer available

• AP8126844 Front mudguard, i.green
  No longer available
• AP8226558 Front mudguard
  No longer available
• AP8126749 Front mudguard
  No longer available
• AP8126646 Front mudguard, grey
  No longer available
• AP8126836 Front mudguard
  No longer available
• AP8126774 Front mudguard, s.yellow
  No longer available
• AP8126773 Front mudguard, m.red
  No longer available

5 Screw Available AP8152267

•

  Screw M5x12 Piaggio Group · AP8152267 Available

  € 2,54

  Add to cart

6 Washer Available AP8150248

•

  Shim 5,5x15x1,6 mm Piaggio Group · AP8150248 Available

  € 1,26

  Add to cart

7 Screw Available AP8152298

•

  Flanged Screw M5x16 Piaggio Group · AP8152298 · Quantity needed: 6 Available

  € 3,80

  Add to cart

8 Clip nuts (M5) Available AP8102375

•

  Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 2 Available

  € 2,47

  Add to cart
