Aprilia Mana 850 GT (NA 850 GT) 2013

Aprilia Mana 850 GT (NA 850 GT) 2013

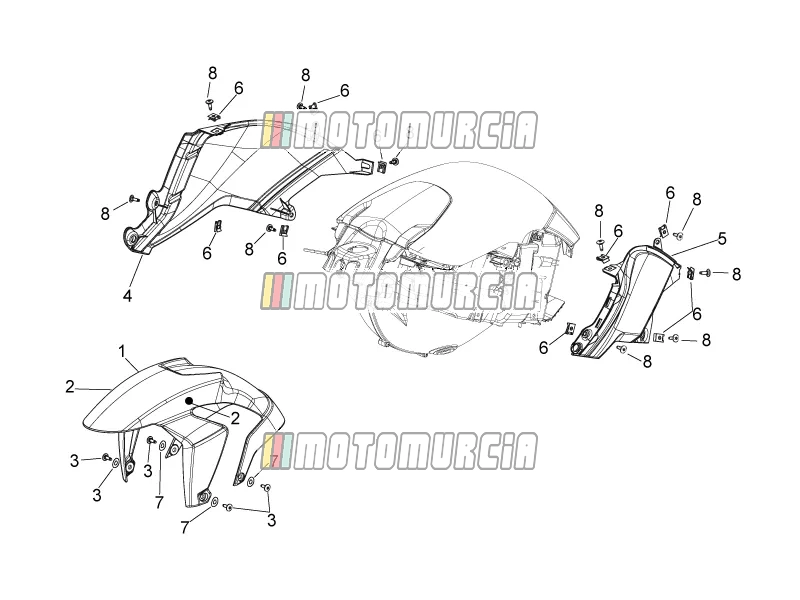

Front Body - Front Mudguard

Products

1 Front mudguard Available 85191700XD2

Mudguard front, blue, Suffix: XD2_blue planet 233/A Piaggio Group · 85191700XD2 Available

€ 89,54
Mudguard front, blue, Suffix: A3_blue sidereal 280/A Piaggio Group · 85191700YA3 Backorder

€ 290,22
85191740XN2 Front mudguard
No longer available
Mudguard front, red, Suffix: XR7_red ibis 854/A Piaggio Group · 85191700XR7 Backorder

€ 153,67
Mudguard front, white, Suffix: BM_bianco diamond 525 Piaggio Group · 85191700BM Backorder

€ 290,22

2 Front mudguard decal ABS Available 893102

Decal, motive: ABS Piaggio Group · 893102 · Quantity needed: 2 Available

€ 7,87

3 Screw Available 2B014101

Screw Piaggio Group · 2B014101 · Quantity needed: 4 Available

€ 3,78

4 RH side panel, grey Backorder 85192700XE8

Air Intake, left, grey Piaggio Group · 85192700XE8 Backorder

€ 228,50

5 LH side panel, grey Backorder 85192800XE8

Fairing, left, grey, Suffix: XE8_grey matt 785/A Piaggio Group · 85192800XE8 Backorder

€ 228,50

6 Clip nuts (M5) Available AP8102375

Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 14 Available

€ 2,47

7 Washer Available AP8150502

Washer 15x8x0,8 mm Piaggio Group · AP8150502 · Quantity needed: 4 Available

€ 2,18

8 Screw Available AP8152339

Flanged Screw M5x9 Piaggio Group · AP8152339 Available

€ 2,35
