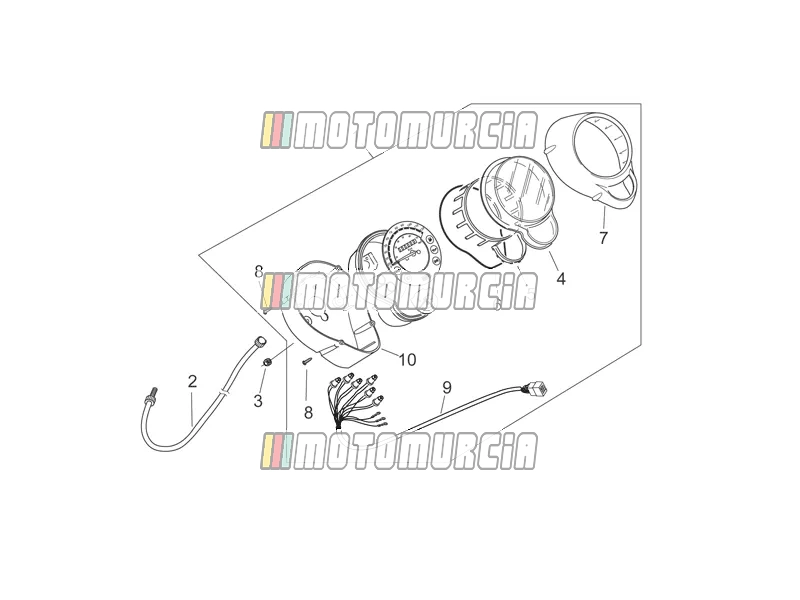

Exploded view — Dashboard

‹ Back to model

Aprilia Mojito 125 E3 2009

Products

1 Dashboard AP8127537 No longer available

AP8127537 Dashboard
No longer available

2 Speedometer cable Available AP8114472

Speedometer shaft Piaggio Group · AP8114472 Available

€ 14,71

3 Nut Available AP8152299

Collar nut M6, self-locking Piaggio Group · AP8152299 · Quantity needed: 3 Available

€ 2,18

4 Dashboard lens Backorder AP8224231

DASHBOARD WINDOW Piaggio Group · AP8224231 Backorder

€ 23,05

5 Diffuser shield Backorder AP8224232

Frame, for cockpit instruments Piaggio Group · AP8224232 Backorder

€ 24,77

6 Dashboard lens seal AP8220555 No longer available

AP8220555 Dashboard lens seal
No longer available

7 Frame, chrom. Backorder AP8224240

Frame, for cockpit instruments, chrome Piaggio Group · AP8224240 Backorder

€ 58,25

8 Self-tap screw 2,2x16 AP8224244 No longer available

AP8224244 Self-tap screw 2,2x16 Quantity needed: 4
No longer available

9 Wiring with lamps AP8124921 No longer available

AP8124921 Wiring with lamps
No longer available

10 Lower shell AP8249265 No longer available

AP8249265 Lower shell
No longer available
