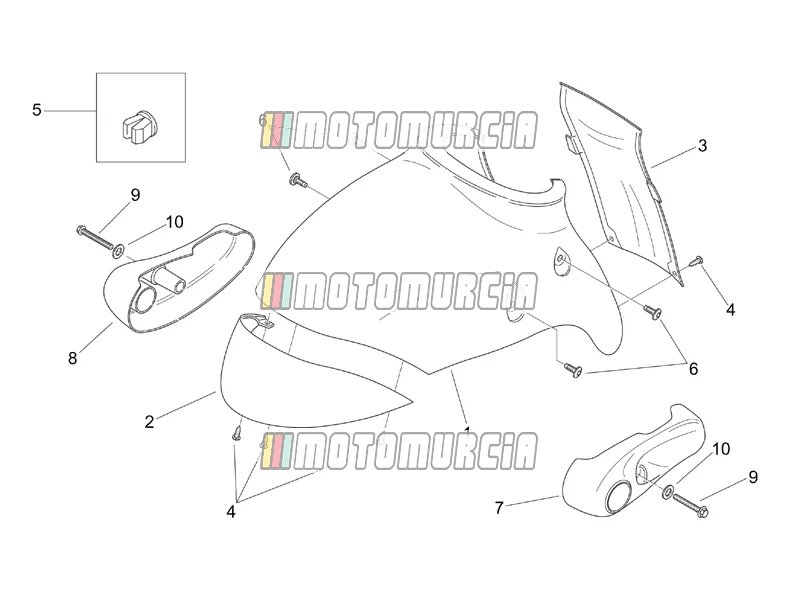

Exploded view — Front Body - Front Mudguard

‹ Back to model

Aprilia Mojito / Habana 125 2000

Products

1 Front mudguard AP8226570 No longer available

AP8226570 Front mudguard
- Habana Custom version
- Habana Retro version
No longer available
AP8226591 Front mudguard, c.red
- Colour: Caribe Red '00-03
- Colour: Caribe Red '99-2000
- Habana Retro version
No longer available
AP8226561 Front mudguard
- Colour: Reef Blue '99-00-03
- Colour: Reef Blue '99-2000
- Habana Retro version
No longer available
AP8226560 Front mudguard (Orange)
- Colour: Apricot Orange '99-00-03
- Colour: Apricot Orange 2000
- Habana Retro version
No longer available
AP8126748 Front mudguard, a.green
- Colour: Atoll Green '99-2000
- Colour: Atoll Green 2000
- Habana Retro version
- Year of manufacture: 1999
- Year of manufacture: 2000
No longer available
AP8226682 Front mudguard
- Colour: Spring Cyan '01-03
- Colour: Spring Cyan '03 (s.t.14185)
- Colour: Spring Cyan 2001
- Habana Retro version
- Mojito Retro version
- Year of manufacture: 2001
- Year of manufacture: 2003
No longer available
AP8248966 Front mudguard
- Colour: Varadero Cyan / Chalk White '03 (s.t.14277)
- Colour: Varadero Cyan / Chalk White '99
- Colour: Varadero Cyan / Chalk White '99-'00-'03-'04
- Colour: Varadero Cyan / Chalk White 2004 (s.t.11588)
- Habana Custom version
- Mojito Custom version
No longer available
AP8226562 Front mudguard
- Colour: Volcano Black '99
- Habana Retro version
- Year of manufacture: 1999
No longer available

2 Front mudguard AP8258115 No longer available

AP8258115 Front mudguard
- Colour: Spring Cyan '01-03
- Colour: Spring Cyan '03 (s.t.14185)
- Colour: Spring Cyan 2001
- Habana Retro version
- Mojito Retro version
- Year of manufacture: 2001
- Year of manufacture: 2003
No longer available
AP8249826 Front mudguard
- Colour: Aprilia Black / Opaque Black 03-05-07 (s.t.14186)
- Colour: Aprilia Black 2000
- Habana Retro version
- Mojito Retro version
- Year of manufacture: 2000
- Year of manufacture: 2003
No longer available
AP8249037 Front mudguard finish, orange
- Colour: Apricot Orange '99-00-03
- Colour: Apricot Orange 2000
- Habana Retro version
No longer available
AP8249058 Front mudguard
- Colour: Reef Blue '99-00-03
- Colour: Reef Blue '99-2000
- Habana Retro version
No longer available
AP8249079 Front mudguard
- Colour: Volcano Black '99
- Habana Retro version
- Year of manufacture: 1999
No longer available
- Colour: Cambridge White 2005-2007 (s.t.14825)
- Habana Custom version
- Mojito Custom version
Cover, chrome Piaggio Group · AP8248967 Available · Shipped in 3–5 working days

€ 116,79
AP8148489 Front mudguard finish, green
- Colour: Atoll Green '99-2000
- Colour: Atoll Green 2000
- Habana Retro version
- Year of manufacture: 1999
- Year of manufacture: 2000
No longer available
AP8249393 Front mudguard finish, red
- Colour: Caribe Red '00-03
- Colour: Caribe Red '99-2000
- Habana Retro version
No longer available

3 Front mudguard lockup, cyan Available AP8249209

- Habana Custom version
- Habana Retro version
- Mojito Custom version
Lock, black, Manufacturer colour: Aprilia black Piaggio Group · AP8249209 Available · Shipped in 3–5 working days

€ 10,44
AP8249080 Front mudguard lockup, black
- Colour: Volcano Black '99
- Habana Retro version
- Year of manufacture: 1999
No longer available
AP8249038 Front mudguard lockup, orange
- Colour: Apricot Orange '99-00-03
- Colour: Apricot Orange 2000
- Habana Retro version
No longer available
AP8139881 Front mudguard lockup, a.green
- Colour: Atoll Green '99-2000
- Colour: Atoll Green 2000
- Habana Retro version
- Year of manufacture: 1999
- Year of manufacture: 2000
No longer available
AP8249394 Front mudguard lockup, c.red
- Colour: Caribe Red '00-03
- Colour: Caribe Red '99-2000
- Habana Retro version
No longer available
AP8258116 Front mudguard lockup, cyan
- Colour: Spring Cyan '01-03
- Colour: Spring Cyan '03 (s.t.14185)
- Colour: Spring Cyan 2001
- Habana Retro version
- Mojito Retro version
- Year of manufacture: 2001
- Year of manufacture: 2003
No longer available

4 Screw Available AP8150413

- Colour: Alitalia (t.s.899864)
- Colour: Replica Alitalia (t.s.899863)
- Colour: Replica MY13
- Colour: Replica SBK MY12
Thread Screw 3,9x14 mm, stainless steel Piaggio Group · AP8150413 · Quantity needed: 5 Available · Shipped in 3–5 working days

€ 1,80

5 Plastic rivet Available AP8102671

- Habana Retro version
- Mojito Retro version
Rivet plastic Piaggio Group · AP8102671 · Quantity needed: 5 Available · Shipped in 3–5 working days

€ 0,99

6 Screw Available 2B014101

Screw Piaggio Group · 2B014101 · Quantity needed: 4 Available · Shipped in 3–5 working days

€ 3,78

7 LH Connecting rod cover, chr. AP8248961 No longer available

AP8248961 LH Connecting rod cover, chr.
No longer available

8 RH Connecting rod cover, chr. AP8248171 No longer available

AP8248171 RH Connecting rod cover, chr.
No longer available

9 Screw Backorder AP8152341

Flanged Screw M5x40 Piaggio Group · AP8152341 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 20,24

10 10 - Washer Available AP8150012

- Country: United States of America
Shim Piaggio Group · AP8150012 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 3,99
