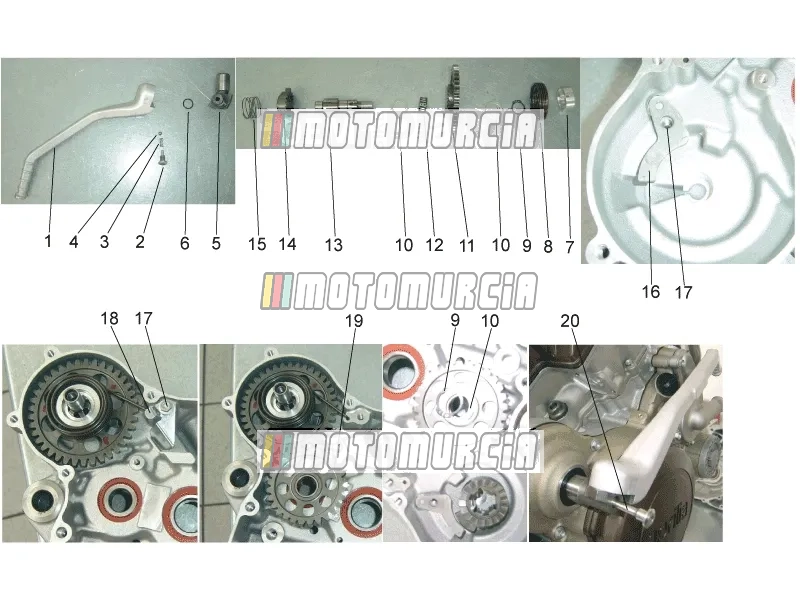

Exploded view — Starter Assembly

‹ Back to model
Aprilia MXV 450 Cross 2010 Aprilia MXV 450 Cross 2010
Starter Assembly

Products

1 Kick - start Backorder 891060
2 Lever screw Backorder 891049
  • Screw Piaggio Group · 891049 Backorder
    € 17,32
3 Coil compress. spring Available 891048
4 Ball D6 295591 No longer available
  • 295591 Ball D6
    No longer available
5 Extension 855006 No longer available
  • 855006 Extension
    No longer available
6 O-ring 17x1 Available 855535
7 Cup Backorder 851126
  • Sleeve Piaggio Group · 851126 Backorder
    € 47,81
8 Return spring Backorder 855528
  • Spring Piaggio Group · 855528 Backorder
    € 20,59
9 Seeger Backorder 006417
  • Circlip Piaggio Group · 006417 · Quantity needed: 2 Backorder
    € 2,34
10 Washer Backorder 851200
  • Washer Piaggio Group · 851200 · Quantity needed: 3 Backorder
    € 3,40
11 Gear Backorder 851062
  • Gear Wheel Piaggio Group · 851062 Backorder
    € 38,72
12 Roller cage 17x21x10 Backorder 855767
13 Starter shaft 855005 No longer available
  • 855005 Starter shaft
    No longer available
14 Starter plate Backorder 851127
  • Lid Piaggio Group · 851127 Backorder
    € 49,90
15 Spring cable lever Available 851128
  • Spring Piaggio Group · 851128 Available
    € 6,63
16 Plate 891090 No longer available
  • 891090 Plate
    No longer available
17 Screw (6x12) Available AP8152277
  • Flanged Screw M6x12 Piaggio Group · AP8152277 · Quantity needed: 2 Available
    € 2,18
18 Plate Backorder 851149
  • Pin Piaggio Group · 851149 Backorder
    € 8,69
19 Intermediate gear Backorder 851358
  • Gear Wheel Piaggio Group · 851358 Backorder
    € 96,96
20 Pin fixing screw Backorder 853518
  • Allen screw Piaggio Group · 853518 Backorder
    € 19,07
