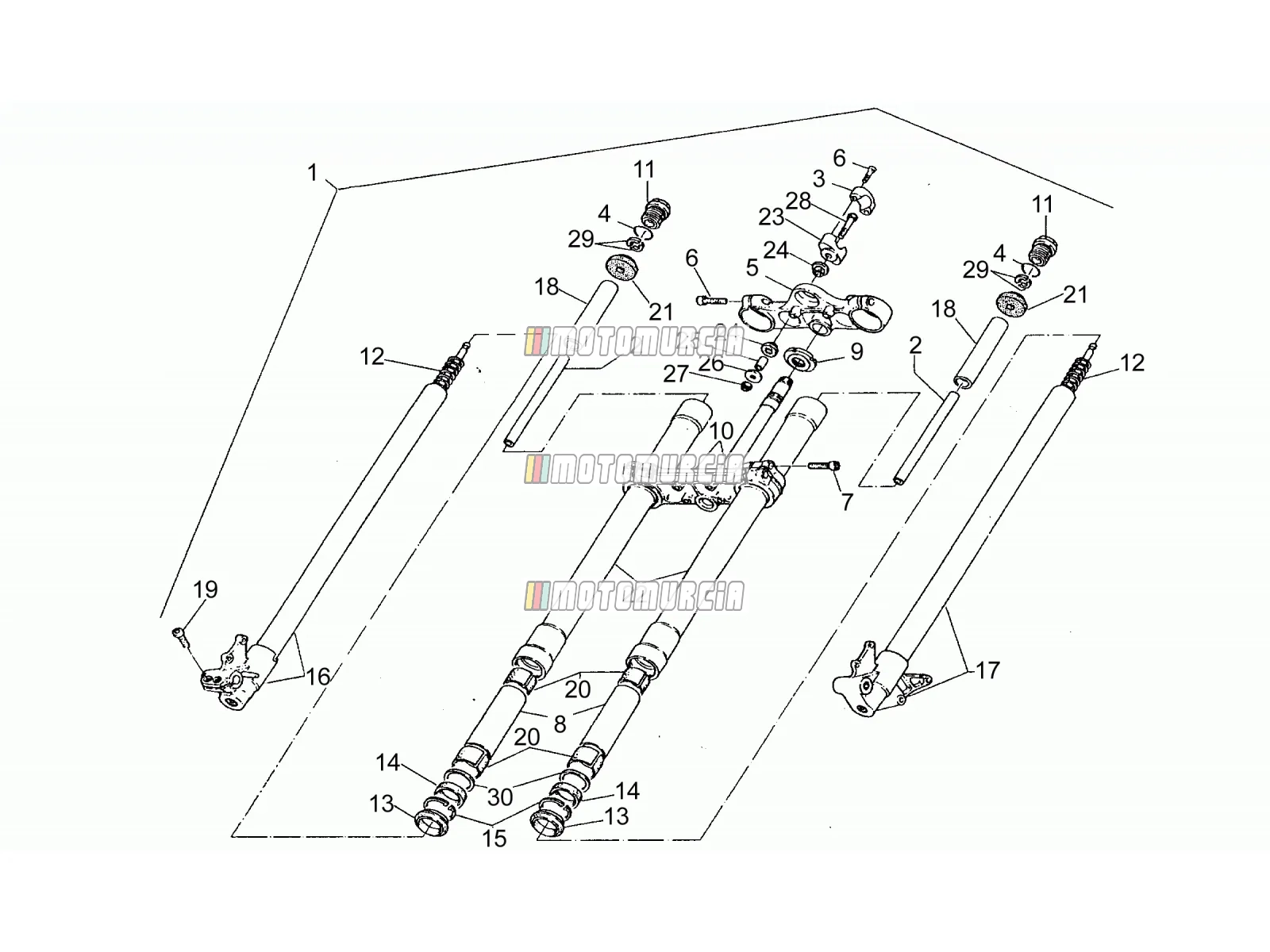

Exploded view — Front Fork T

Products

1 Front fork AP8123730 No longer available

• AP8123730 Front fork
  No longer available

2 Spring guide tube AP8123608 No longer available

• AP8123608 Spring guide tube Quantity needed: 2
  No longer available

3 U-bolt Available AP8123604

•

  Handlebar clamp bracket Piaggio Group · AP8123604 · Quantity needed: 2 Available

  € 26,03

  Add to cart

4 O-Ring Available AP8123346

•

  O-Ring Piaggio Group · AP8123346 · Quantity needed: 2 Available

  € 4,40

  Add to cart

5 Fork upper plate 185/25/50 AP8123723 No longer available

• AP8123723 Fork upper plate 185/25/50
  No longer available

6 Screw Backorder 600123

•

  Screw Piaggio Group · 600123 · Quantity needed: 6 Backorder

  € 1,75

  Add to cart

7 Screw M8x30 AP8123609 No longer available

• AP8123609 Screw M8x30 Quantity needed: 4
  No longer available

8 Spacer AP8123717 No longer available

• AP8123717 Spacer Quantity needed: 2
  No longer available

9 Ring nut Available AP8163500

•

  Standard nut Piaggio Group · AP8163500 Available

  € 19,57

  Add to cart

10 Stem base 185/25/54 AP8123611 No longer available

• AP8123611 Stem base 185/25/54
  No longer available

11 Sleeve plug Backorder AP8123348

•

  Screw Plug Piaggio Group · AP8123348 · Quantity needed: 2 Backorder

  € 82,53

  Add to cart

12 Spring D4,8x398 AP8123606 No longer available

• AP8123606 Spring D4,8x398 Quantity needed: 2
  No longer available

13 Fork dust seal (Marzocchi) Available 599502

•

  Dust guard Piaggio Group · 599502 · Quantity needed: 3 Available

  € 26,34

  Add to cart

14 Fork oil seal (Marzocchi) Available 599501

•

  Oil seal Piaggio Group · 599501 · Quantity needed: 2 Available

  € 30,29

  Add to cart

15 Stop ring AP8123199 No longer available

• AP8123199 Stop ring Quantity needed: 2
  No longer available

16 RH hub AP8123731 No longer available

• AP8123731 RH hub
  No longer available

17 LH hub AP8123732 No longer available

• AP8123732 LH hub
  No longer available

18 Preload tube 31x2,5x215 AP8123607 No longer available

• AP8123607 Preload tube 31x2,5x215 Quantity needed: 2
  No longer available

19 Screw Available AP8123920

•

  Screw Piaggio Group · AP8123920 · Quantity needed: 2 Available

  € 2,49

  Add to cart

20 Bush AP8123689 No longer available

• AP8123689 Bush Quantity needed: 4
  No longer available

21 Ring spring Available AP8123357

•

  Spacer Ring Piaggio Group · AP8123357 · Quantity needed: 2 Available

  € 14,35

  Add to cart

22 Sleeve AP8123733 No longer available

• AP8123733 Sleeve Quantity needed: 2
  No longer available

23 Lower U-bolt Backorder AP8123605

•

  Handlebar clamp bracket bottom Piaggio Group · AP8123605 · Quantity needed: 2 Backorder

  € 68,12

  Add to cart

24 Silent-block Available AP8103504

•

  Vibrations Dampener Piaggio Group · AP8103504 · Quantity needed: 4 Available

  € 15,08

  Add to cart

25 Pipe Available AP8123510

•

  Spacer Piaggio Group · AP8123510 · Quantity needed: 2 Available

  € 18,39

  Add to cart

26 Washer Available AP8123721

•

  Sleeve Piaggio Group · AP8123721 · Quantity needed: 2 Available

  € 7,82

  Add to cart

27 Nut Available AP8123512

•

  Standard nut Piaggio Group · AP8123512 · Quantity needed: 2 Available

  € 10,35

  Add to cart

28 Screw AP8123513 No longer available

• AP8123513 Screw Quantity needed: 2
  No longer available

29 Half ring AP8123441 No longer available

• AP8123441 Half ring Quantity needed: 4
  No longer available

30 Cup (Marzocchi) 599504 No longer available

• 599504 Cup (Marzocchi) Quantity needed: 2
  No longer available
