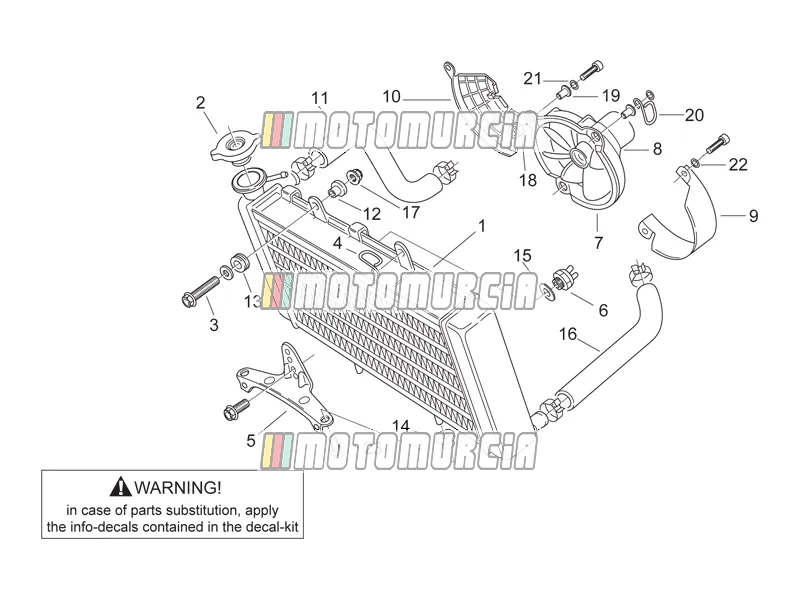

Exploded view — Cooling System

Products

1 Water cooler with plug AP8102469 No longer available

• AP8102469 Water cooler with plug
  No longer available

2 Water cooler filler cap Available AP8102771

•

  Radiator Cap Piaggio Group · AP8102771 Available · Shipped in 3–5 working days

  € 51,73

  Add to cart

3 Screw Available AP8152281

•

  Flanged Screw M6x30 Piaggio Group · AP8152281 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

4 Cable-guide AP8120512 No longer available

• AP8120512 Cable-guide
  No longer available

5 Lower water cooler support AP8134924 No longer available

• AP8134924 Lower water cooler support
  No longer available

6 Thermal switch AP8112677 No longer available

• AP8112677 Thermal switch
  • Leonardo 125
  • Leonardo 150
  • Year of manufacture: 1997
  • Year of manufacture: 1998
  No longer available

7 Fan support AP8138103 No longer available

• AP8138103 Fan support
  No longer available

8 Fan AP8124335 No longer available

• AP8124335 Fan
  No longer available

9 Fan cover AP8135446 No longer available

• AP8135446 Fan cover
  No longer available

10 Fan guard AP8138771 No longer available

• AP8138771 Fan guard
  No longer available

11 Water cooler-head tube Available AP8120924

•

  Radiator hose Piaggio Group · AP8120924 Available · Shipped in 3–5 working days

  € 50,17

  Add to cart

12 Water cooler bush AP8121922 No longer available

• AP8121922 Water cooler bush Quantity needed: 2
  No longer available

13 Rubber spacer Available AP8120594

• • Country: United States of America


  Silentblock Piaggio Group · AP8120594 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 4,20

  Add to cart

14 Damper Available AP8101372

• • Enduro version
  • Motard version
  • Van Den Bosch version


  Vibrations Damper Piaggio Group · AP8101372 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,49

  Add to cart

15 Aluminium washer Available AP8121837

•

  Washer Piaggio Group · AP8121837 Available · Shipped in 3–5 working days

  € 1,94

  Add to cart

16 Water return hose AP8120673 No longer available

• AP8120673 Water return hose
  No longer available

17 Nut Available AP8152299

• • Colour: Limited Edition green 2013
  • Colour: Public Authorities China
  • Colour: Tuscany Tibet 2003


  Collar nut M6, self-locking Piaggio Group · AP8152299 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

18 Damper Available AP8120223

• • Country: Japan


  Vibrations Damper Piaggio Group · AP8120223 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 3,36

  Add to cart

19 Spacer Available AP8121725

• • LB homologation


  Sleeve Piaggio Group · AP8121725 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

20 Cable-guide Available AP8121856

• • Rear drum brake


  Cable Guide Piaggio Group · AP8121856 Available · Shipped in 3–5 working days

  € 14,90

  Add to cart

21 Washer Available AP8150011

•

  Shim 4,3x12x1 mm Piaggio Group · AP8150011 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

22 Washer (spring) Available 658830

• • Year of manufacture: 2012
  • Year of manufacture: 2013
  • Country: Canada
  • Country: China
  • Country: United States of America


  Washer Piaggio Group · 658830 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 2,00

  Add to cart

23 Screw (6x12) Available AP8152277

• • Colour: Royal Hashemite Court
  • Country: Canada
  • Country: Germany
  • Country: United States of America


  Flanged Screw M6x12 Piaggio Group · AP8152277 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart
