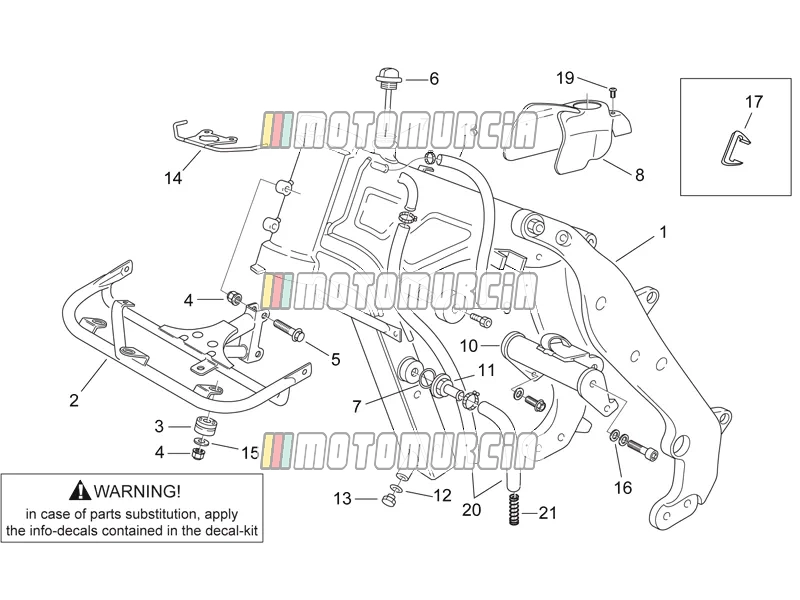

Exploded view — Frame I

Products

1 Frame AP8146044 No longer available

• AP8146044 Frame
  No longer available
• AP8146365 Frame
  • Year of manufacture: 2000
  No longer available

2 Frng sup. snd. phor. AP8146310 No longer available

• AP8146310 Frng sup. snd. phor.
  • Country: United States of America
  No longer available
• AP8135708 Frng sup. snd. phor.
  No longer available

3 Damper Available AP8220150

•

  Buffer Piaggio Group · AP8220150 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 4,20

  Add to cart

4 Nut Available AP8152299

• • Colour: Limited Edition green 2013
  • Colour: Public Authorities China
  • Colour: Tuscany Tibet 2003


  Collar nut M6, self-locking Piaggio Group · AP8152299 · Quantity needed: 5 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

5 Screw Available AP8152281

•

  Flanged Screw M6x30 Piaggio Group · AP8152281 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

6 Cap oil filler Backorder AP8102393

•

  Oil dipstick Piaggio Group · AP8102393 Backorder · Shipped in 2–4 weeks

  € 24,27

  Add to cart

7 O-Ring Available AP8120280

•

  O-Ring Piaggio Group · AP8120280 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,32

  Add to cart

8 Frame protection, black AP8138772 No longer available

• AP8138772 Frame protection, black
  No longer available

9 Rubber spacer * Available AP8201124

•

  Rubber Piaggio Group · AP8201124 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 8,58

  Add to cart

10 Shck sup. snd. phor AP8134864 No longer available

• AP8134864 Shck sup. snd. phor
  No longer available

11 Oil filter AP8104911 No longer available

• AP8104911 Oil filter
  No longer available

12 Washer Available AP8121862

•

  Washer 8x16x1,5 mm Piaggio Group · AP8121862 Available · Shipped in 3–5 working days

  € 1,32

  Add to cart

13 Screw Available AP8152286

• • Colour: Tuscany Tibet 2003


  Flanged Screw M8x20 Piaggio Group · AP8152286 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,93

  Add to cart

14 Steering lock cover AP8138124 No longer available

• AP8138124 Steering lock cover
  No longer available

15 Washer Available AP8152037

•

  Washer Piaggio Group · AP8152037 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 2,77

  Add to cart

16 Washer Available AP8150292

• • Enduro Trail version
  • Municipal police
  • Strada version


  Snap Ring Piaggio Group · AP8150292 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

17 Plugs spring Available AP8121309

• • Year of manufacture: 1999


  Clip Piaggio Group · AP8121309 Available · Shipped in 3–5 working days

  € 2,13

  Add to cart

18 Oil breather pipe D6x11 Available 890498

•

  Breather Pipe Piaggio Group · 890498 Available · Shipped in 3–5 working days

  € 44,42

  Add to cart

19 Screw Available AP8152272

• • Country: United States of America


  Flanged Screw M5x12 Piaggio Group · AP8152272 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

20 Pipe d10x18 2R000278 No longer available

• 2R000278 Pipe d10x18
  No longer available

21 Engine oil tube spring AP8121977 No longer available

• AP8121977 Engine oil tube spring
  No longer available
