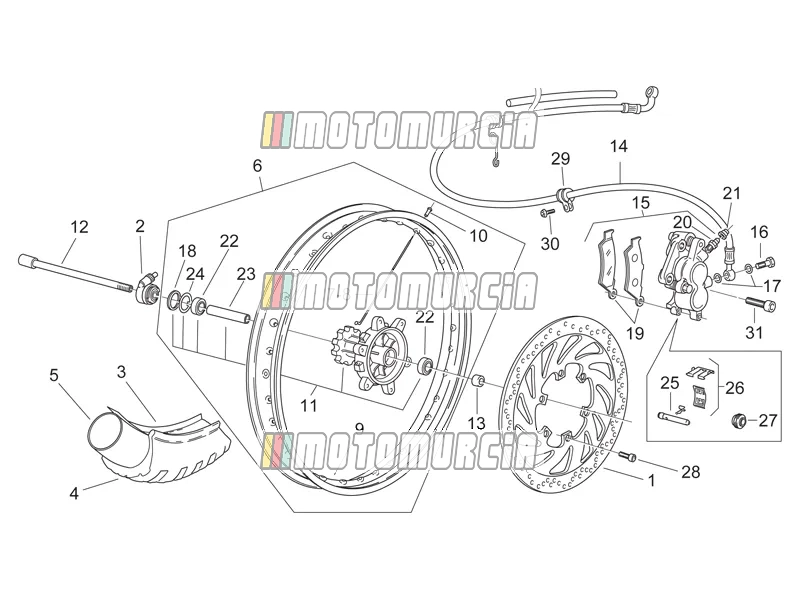

Exploded view — Front Wheel

Products

1 Brake disc AP8113485 No longer available

• AP8113485 Brake disc
  No longer available

2 Odometer gear AP8104218 No longer available

• AP8104218 Odometer gear
  No longer available
•

  Speedo drive Piaggio Group · AP8102176 Available

  € 110,70

  Add to cart

3 Front wheel flap 19" AP8109280 No longer available

• AP8109280 Front wheel flap 19"
  No longer available

4 Tyre 0000000 No longer available

• 0000000 Tyre
  No longer available

6 Front wheel(complete) AP8108781 No longer available

• AP8108781 Front wheel(complete)
  No longer available

7 LH front spoke Available AP8108757

•

  Spoke front Piaggio Group · AP8108757 · Quantity needed: 18 Available

  € 5,38

  Add to cart

8 RH front spoke Available AP8108758

•

  Spoke front Piaggio Group · AP8108758 · Quantity needed: 18 Available

  € 5,38

  Add to cart

9 Wheel D19" AP8108469 No longer available

• AP8108469 Wheel D19"
  No longer available

10 Nipple d.3,5 Available AP8108672

•

  Spoke Nipples thickness: 3,50 mm Piaggio Group · AP8108672 · Quantity needed: 36 Available

  € 6,30

  Add to cart

11 Front hub AP8125542 No longer available

• AP8125542 Front hub
  No longer available

12 Front wheel spindle Front AP8125755 No longer available

• AP8125755 Front wheel spindle Front
  No longer available

13 Front wheel spacer Backorder AP8125720

•

  Spacer Piaggio Group · AP8125720 Backorder

  € 8,83

  Add to cart

14 Brake hose AP8113484 No longer available

• AP8113484 Brake hose
  No longer available

15 Front brake caliper Front AP8113557 No longer available

• AP8113557 Front brake caliper Front
  No longer available

16 Oil pipe screw Available AP8113003

•

  Screw Piaggio Group · AP8113003 · Quantity needed: 2 Available

  € 2,35

  Add to cart

17 Washer gasket Available AP8113004

• AP8113004 Washer gasket Quantity needed: 4


  Oil seal 10x14x1,6 mm Piaggio Group · AP8113004 Available

  € 2,18

  Add to cart


  Oil seal 10x14x1,6 mm Piaggio Group · Ap8113004 Available

  € 2,18

  Add to cart

18 Oil seal Backorder AP8125743

•

  Oil seal 40x50x4 mm Piaggio Group · AP8125743 Backorder

  € 37,43

  Add to cart

19 Brake pads Available AP8113533

•

  Brake pad set Brembo Piaggio Group · AP8113533 Available

  € 41,04

  Add to cart

20 Air bleed valve AP8113549 No longer available

• AP8113549 Air bleed valve
  No longer available

21 Bleed valve cap Available AP8113070

•

  Covering Cap Piaggio Group · AP8113070 Available

  € 15,62

  Add to cart

22 Bearing AP8110045 No longer available

• AP8110045 Bearing Quantity needed: 2
  No longer available

23 Spacer (Front hub) AP8125604 No longer available

• AP8125604 Spacer (Front hub)
  No longer available

24 Drive key Available AP8120865

•

  Tab Washer Piaggio Group · AP8120865 Available

  € 11,14

  Add to cart

25 Pin with cotter D8x32 AP8121265 No longer available

• AP8121265 Pin with cotter D8x32
  No longer available

26 Plate with spring AP8113546 No longer available

• AP8113546 Plate with spring
  No longer available

27 Guard Available AP8113548

•

  Cap Piaggio Group · AP8113548 Available

  € 45,75

  Add to cart

28 Screw Available AP8152156

•

  Screw M6x14 Piaggio Group · AP8152156 · Quantity needed: 6 Available

  € 2,18

  Add to cart

29 Brake hose hanger Available AP8134167

•

  Clamp Piaggio Group · AP8134167 Available

  € 20,56

  Add to cart

30 Screw Available AP8152338

•

  Flanged Screw Piaggio Group · AP8152338 Available

  € 2,63

  Add to cart

31 Screw Available AP8150048

•

  Screw Piaggio Group · AP8150048 · Quantity needed: 2 Available

  € 2,77

  Add to cart
