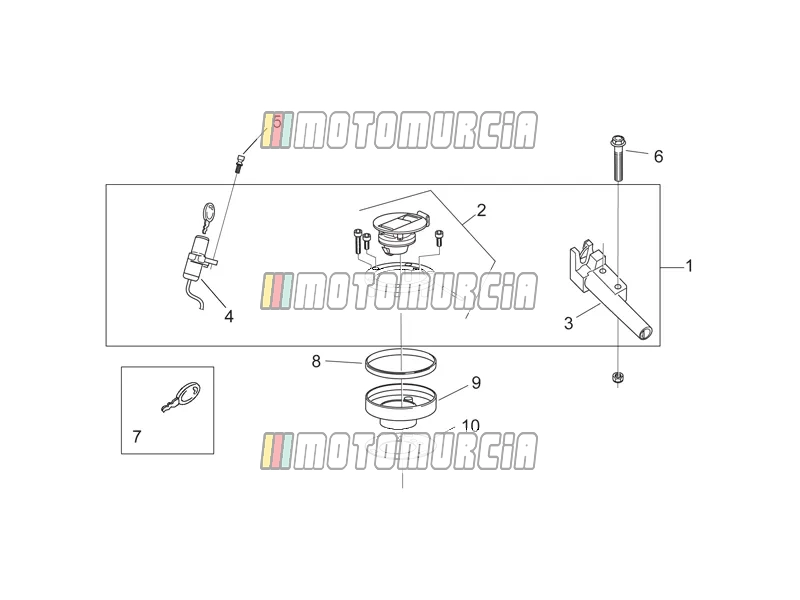

Exploded view — Lock Hardware Kit

Products

1 Lock kit AP8102958 No longer available

• AP8102958 Lock kit
  No longer available
• AP8102997 Lock kit
  No longer available

2 Fuel filler cap AP8102435 No longer available

• AP8102435 Fuel filler cap
  No longer available
• AP8144246 Fuel filler cap
  No longer available
• AP8102583 Fuel filler cap
  No longer available

3 Saddle lock Backorder AP8201564

•

  Seat Lock Piaggio Group · AP8201564 Backorder

  € 87,22

  Add to cart
•

  Seat Lock Piaggio Group · AP8104144 Backorder

  € 87,24

  Add to cart

4 Main switch - steering lock AP8112710 No longer available

• AP8112710 Main switch - steering lock
  No longer available
• AP8124698 Main switch - steering lock
  No longer available

5 Screw Available AP8150349

•

  Screw M8x16 Piaggio Group · AP8150349 Available

  € 7,82

  Add to cart

6 Screw Available AP8152281

•

  Flanged Screw M6x30 Piaggio Group · AP8152281 · Quantity needed: 2 Available

  € 2,18

  Add to cart

7 Key blank Available AP8104613

•

  Key blank without transponder Piaggio Group · AP8104613 Available

  € 19,66

  Add to cart

8 Cap seal Available AP8120893

•

  Gasket Piaggio Group · AP8120893 Available

  € 19,54

  Add to cart

9 Float chamber AP8102526 No longer available

• AP8102526 Float chamber
  No longer available
•

  Drip tray Piaggio Group · AP8102535 Backorder

  € 31,45

  Add to cart

10 Fuel tank gasket AP8120894 No longer available

• AP8120894 Fuel tank gasket
  No longer available
