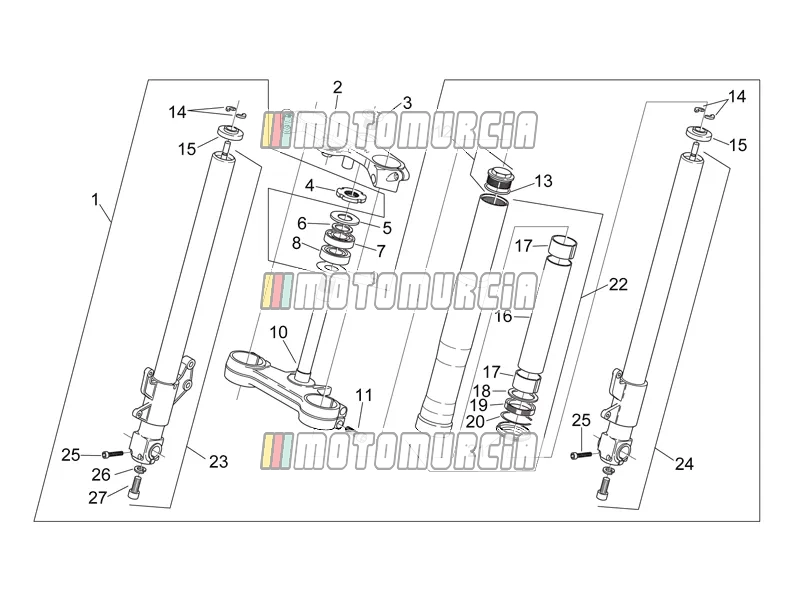

Exploded view — Front Fork

Products

1 Front fork AP8163116 No longer available

• AP8163116 Front fork
  No longer available

2 Fork upper plate AP8123889 No longer available

• AP8123889 Fork upper plate
  No longer available

3 Plug AP8150352 No longer available

• AP8150352 Plug
  No longer available

4 Fork lower ring nut Available AP8203588

•

  Threaded ring Piaggio Group · AP8203588 Available

  € 29,78

  Add to cart

5 Gasket Available AP8104597

•

  Gasket Piaggio Group · AP8104597 Available

  € 13,12

  Add to cart

6 Washer Available AP8203550

•

  Washer Piaggio Group · AP8203550 Available

  € 1,48

  Add to cart

7 Steering bearing Available AP8110025

•

  Ball bearing Piaggio Group · AP8110025 Available

  € 31,86

  Add to cart

8 Steering bearing Available AP8110024

•

  Roller bearing 25x52x15 mm Piaggio Group · AP8110024 Available

  € 66,01

  Add to cart

9 Lower dust cover ring Available AP8101271

•

  Dust guard Piaggio Group · AP8101271 Available

  € 1,59

  Add to cart

10 Stem base AP8123879 No longer available

• AP8123879 Stem base
  No longer available

11 Screw Backorder 600123

•

  Screw Piaggio Group · 600123 · Quantity needed: 2 Backorder

  € 1,75

  Add to cart

12 Sleeve plug AP8123878 No longer available

• AP8123878 Sleeve plug Quantity needed: 2
  No longer available

13 O-Ring Available AP8123346

•

  O-Ring Piaggio Group · AP8123346 · Quantity needed: 2 Available

  € 4,40

  Add to cart

14 Half ring AP8123441 No longer available

• AP8123441 Half ring Quantity needed: 4
  No longer available

15 Ring spring Available AP8123357

•

  Spacer Ring Piaggio Group · AP8123357 · Quantity needed: 2 Available

  € 14,35

  Add to cart

16 Spacer AP8123355 No longer available

• AP8123355 Spacer Quantity needed: 2
  No longer available

17 Bush AP8123689 No longer available

• AP8123689 Bush Quantity needed: 4
  No longer available

18 Cup (Marzocchi) 599504 No longer available

• 599504 Cup (Marzocchi) Quantity needed: 2
  No longer available

19 Fork oil seal (Marzocchi) Available 599501

•

  Oil seal Piaggio Group · 599501 · Quantity needed: 2 Available

  € 30,29

  Add to cart

20 Stop ring AP8123199 No longer available

• AP8123199 Stop ring Quantity needed: 2
  No longer available

21 Fork dust seal (Marzocchi) Available 599502

•

  Dust guard Piaggio Group · 599502 · Quantity needed: 2 Available

  € 26,34

  Add to cart

22 Sleeve, black Available AP8123691

•

  Sleeve black Piaggio Group · AP8123691 · Quantity needed: 2 Available

  € 175,45

  Add to cart

23 Hub+RH fork leg AP8163190 No longer available

• AP8163190 Hub+RH fork leg
  No longer available

24 Hub+LH fork leg AP8163191 No longer available

• AP8163191 Hub+LH fork leg
  No longer available

25 Screw AP8163385 No longer available

• AP8163385 Screw Quantity needed: 2
  No longer available

26 Seal washer AP8123191 No longer available

• AP8123191 Seal washer
  No longer available

27 Screw AP8163491 No longer available

• AP8163491 Screw
  No longer available
