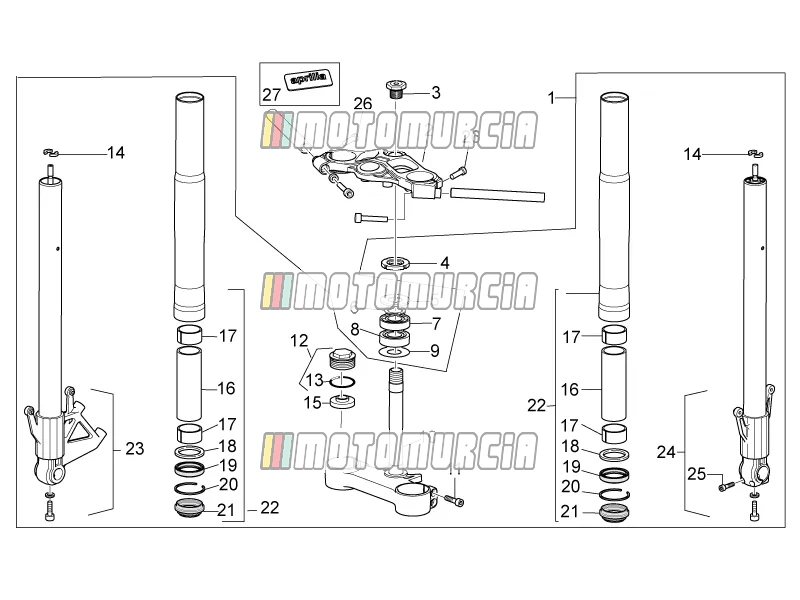

Exploded view — Front Fork

‹ Back to model

Aprilia RS 125 2T 2008

Products

Position: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

1 Front fork 85226R No longer available

85226R Front fork
No longer available
899770 Front fork
No longer available

2 Fork upper plate Backorder AP8163584

Yoke Piaggio Group · AP8163584 Backorder · Shipped in 2–4 weeks

€ 532,69

3 Plug AP8161129 No longer available

AP8161129 Plug
No longer available

4 Ring nut Available B044706

Threaded ring Piaggio Group · B044706 Available · Shipped in 3–5 working days

€ 14,28
- Fork without letter S on hub
Threaded ring Piaggio Group · AP8203588 Available · Shipped in 3–5 working days

€ 29,78

5 Gasket Available AP8104597

Gasket Piaggio Group · AP8104597 Available · Shipped in 3–5 working days

€ 13,12

6 Washer Available AP8203550

Washer Piaggio Group · AP8203550 Available · Shipped in 3–5 working days

€ 1,48

7 Steering bearing Available AP8110025

- Year of manufacture: 1992
- Year of manufacture: 1993
Ball bearing Piaggio Group · AP8110025 Available · Shipped in 3–5 working days

€ 31,86

8 Steering bearing Available AP8110024

- Challenge version United States
- Country: United States of America
Roller bearing 25x52x15 mm Piaggio Group · AP8110024 Available · Shipped in 3–5 working days

€ 66,01

9 Lower dust cover ring Available AP8101271

- Year of manufacture: 1992
- Year of manufacture: 1993
Dust guard Piaggio Group · AP8101271 Available · Shipped in 3–5 working days

€ 1,59

10 FORK/STEERING COLUMN B044705 No longer available

B044705 FORK/STEERING COLUMN
No longer available
AP8123879 Stem base
No longer available

11 Screw Backorder 600123

Screw Piaggio Group · 600123 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 1,75
- Country: United States of America
Screw M8x30 Piaggio Group · AP8150107 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 2,35

12 Plug cpl. B044708 No longer available

B044708 Plug cpl. Quantity needed: 2
No longer available
AP8123878 Sleeve plug Quantity needed: 2
No longer available

13 O-Ring Backorder B044704

O-Ring Piaggio Group · B044704 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 5,60
O-Ring Piaggio Group · AP8123346 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 4,40

14 Half ring AP8123441 No longer available

AP8123441 Half ring Quantity needed: 4
No longer available
Semiring Piaggio Group · B044051 · Quantity needed: 4 Available · Shipped in 3–5 working days

€ 2,78

15 Ring spring Available B044052

Dust guard Piaggio Group · B044052 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 7,54
Spacer Ring Piaggio Group · AP8123357 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 14,35

16 Spacer AP8123355 No longer available

AP8123355 Spacer Quantity needed: 2
No longer available
Sleeve Piaggio Group · B044703 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 11,37

17 Bush AP8123689 No longer available

AP8123689 Bush Quantity needed: 4
No longer available
Fork Tube Piaggio Group · B044053 · Quantity needed: 4 Available · Shipped in 3–5 working days

€ 221,94

18 4 - Washer Available B044054

Shim Piaggio Group · B044054 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 2,86
599504 Cup (Marzocchi) Quantity needed: 2
- Marzocchi
No longer available

19 Fork oil seal (Marzocchi) Available 599501

- Marzocchi
Oil seal Piaggio Group · 599501 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 30,29

Alternatives from other brands

Front Fork Seal Set 40x52x10/10.5 Athena · P40FORK455050 Available · Shipped in 4–7 working days

€ 9,72
Fork Seal 40x52x10/10,5 mm Piaggio Group · B044055 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 13,03

Alternatives from other brands

Fork Oil Seal Kit 40x52x10 Athena · P40FORK455199 Available · Shipped in 4–7 working days

€ 9,98

20 Snap ring Available B044056

Snap-in Ring Piaggio Group · B044056 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 2,86
AP8123199 Stop ring Quantity needed: 2
No longer available

21 Fork dust seal (Marzocchi) Available 599502

- Marzocchi
Dust guard Piaggio Group · 599502 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 26,34
Dust guard Piaggio Group · B044057 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 7,72

22 Sleeve, black Backorder AP8123691

Sleeve black Piaggio Group · AP8123691 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 175,45
B044707 LEFT STEM Quantity needed: 2
No longer available

23 Hub+RH fork leg AP8163566 No longer available

AP8163566 Hub+RH fork leg
No longer available
B044702 LEFT STEM
No longer available

24 LEFT STEM B044701 No longer available

B044701 LEFT STEM
No longer available
AP8163567 Hub+LH fork leg
No longer available

25 Screw Available AP8150220

- Colour: Hot red 02-03
- Colour: Peltro Grey 02-03
- For engines from V4-G 1000 to V4-G 1339
- Up to engine V4-A 1645
- Year of manufacture: 2002
- Country: Denmark
Screw M6x30 Piaggio Group · AP8150220 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 1,21
AP8163385 Screw Quantity needed: 2
No longer available

26 Screw Available AP8150236

- Country: Japan
Screw M8x35 Piaggio Group · AP8150236 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 1,48

27 "Aprilia" dataplate Available AP8157770

- Country: United States of America
Decal, motive: Aprilia Piaggio Group · AP8157770 Available · Shipped in 3–5 working days

€ 20,45
