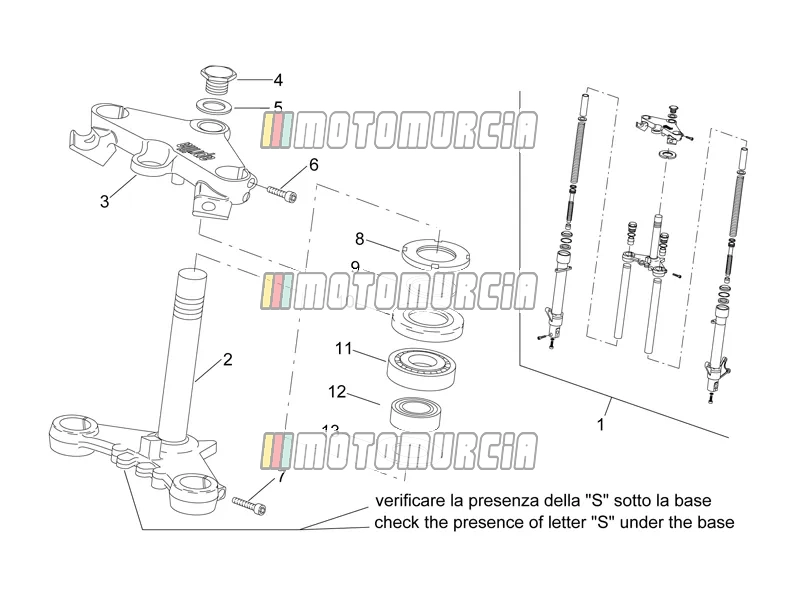

Exploded view — Front Fork I

Products

1 Front fork AP8203576 No longer available

• AP8203576 Front fork
  No longer available

2 Stem base AP8203586 No longer available

• AP8203586 Stem base
  No longer available
• AP8203849 Stem base
  No longer available

3 Fork upper plate AP8203852 No longer available

• AP8203852 Fork upper plate
  No longer available
• AP8203587 Fork upper plate
  No longer available

4 Plug AP8203855 No longer available

• AP8203855 Plug
  No longer available
•

  Screw M20x1.5 Piaggio Group · AP8203251 Available

  € 29,23

  Add to cart

5 Washer AP8203854 No longer available

• AP8203854 Washer
  No longer available
• AP8203252 Washer
  No longer available

6 Screw M8x25 AP8203853 No longer available

• AP8203853 Screw M8x25 Quantity needed: 2
  No longer available
• AP8203589 Screw M8x25 Quantity needed: 2
  No longer available

7 Screw (M8x35) AP8203850 No longer available

• AP8203850 Screw (M8x35) Quantity needed: 2
  No longer available
•

  Screw M8x35 Piaggio Group · AP8203590 · Quantity needed: 2 Backorder

  € 3,99

  Add to cart

8 Fork lower ring nut Available AP8203588

•

  Threaded ring Piaggio Group · AP8203588 Available

  € 29,78

  Add to cart
• AP8203851 Ring nut
  No longer available

9 Spacer Available AP8101272

•

  Spacer disc Piaggio Group · AP8101272 Available

  € 12,41

  Add to cart

10 Dust cover Available AP8120211

•

  Dust guard Piaggio Group · AP8120211 Available

  € 15,61

  Add to cart

11 Steering bearing Available AP8110025

•

  Ball bearing Piaggio Group · AP8110025 Available

  € 31,86

  Add to cart

12 Steering bearing Available AP8110024

•

  Roller bearing 25x52x15 mm Piaggio Group · AP8110024 Available

  € 66,01

  Add to cart

13 Lower dust cover ring Available AP8101271

•

  Dust guard Piaggio Group · AP8101271 Available

  € 1,59

  Add to cart
