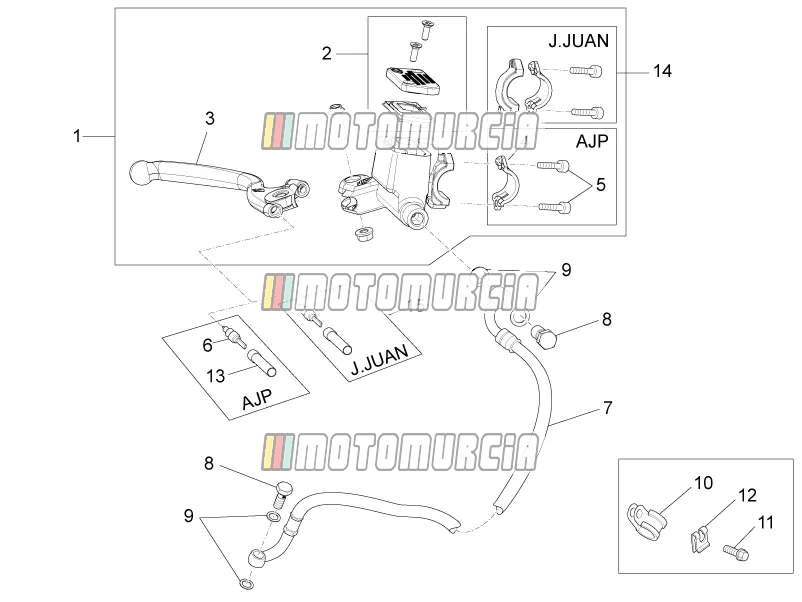

Exploded view — Front Master Cilinder

Products

1 Brake hose 85238R No longer available

• 85238R Brake hose
  No longer available
•

  Master brake cylinder J.Juan, right Piaggio Group · B044194 Available

  € 339,80

  Add to cart

2 Cover Available 867283

•

  Lid, J.Juan Piaggio Group · 867283 Available

  € 36,49

  Add to cart
•

  Lid, AJP Industrial Piaggio Group · 862534 Available

  € 73,98

  Add to cart

3 Brake lever Available 864339

•

  Brake Lever right, AJP Industrial Piaggio Group · 864339 Available

  € 45,68

  Add to cart
•

  Brake Lever right, J.Juan Piaggio Group · B044198 Available

  € 53,55

  Add to cart

4 Pump support U-bolt Backorder 00H02100901

•

  Handlebar clamp bracket AJP Industrial Piaggio Group · 00H02100901 Backorder

  € 45,46

  Add to cart

5 Screw Available 00000004512

•

  Allen screw M5 Piaggio Group · 00000004512 · Quantity needed: 2 Available

  € 7,07

  Add to cart

6 Brake light switch Available 642032

•

  Stop light switch Piaggio Group · 642032 Available

  € 11,54

  Add to cart

7 Brake hose Backorder B044195

•

  Brake line, front Piaggio Group · B044195 Backorder

  € 383,35

  Add to cart
• 85238R Brake hose
  No longer available

8 Oil pipe screw Available 862494

•

  Hollow screw Piaggio Group · 862494 · Quantity needed: 2 Available

  € 9,33

  Add to cart
•

  Hollow screw J.Juan Piaggio Group · 867237 · Quantity needed: 2 Available

  € 21,55

  Add to cart

9 Washer gasket Available 867238

•

  Shim Piaggio Group · 867238 · Quantity needed: 4 Available

  € 4,85

  Add to cart

10 Brake hose hanger Available AP8134167

•

  Clamp Piaggio Group · AP8134167 Available

  € 20,56

  Add to cart

11 Screw Available 598839

•

  Flanged Screw M6x16 Piaggio Group · 598839 Available

  € 1,48

  Add to cart

12 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

13 Rubber spacer Available AP8220135

•

  Rubber bellows Piaggio Group · AP8220135 Available

  € 6,98

  Add to cart

14 U-bolt Backorder B044408

•

  Handlebar clamp bracket Piaggio Group · B044408 Backorder

  € 45,68

  Add to cart

15 Brake light switch Backorder B044409

•

  Stop light switch Piaggio Group · B044409 Backorder

  € 66,89

  Add to cart
