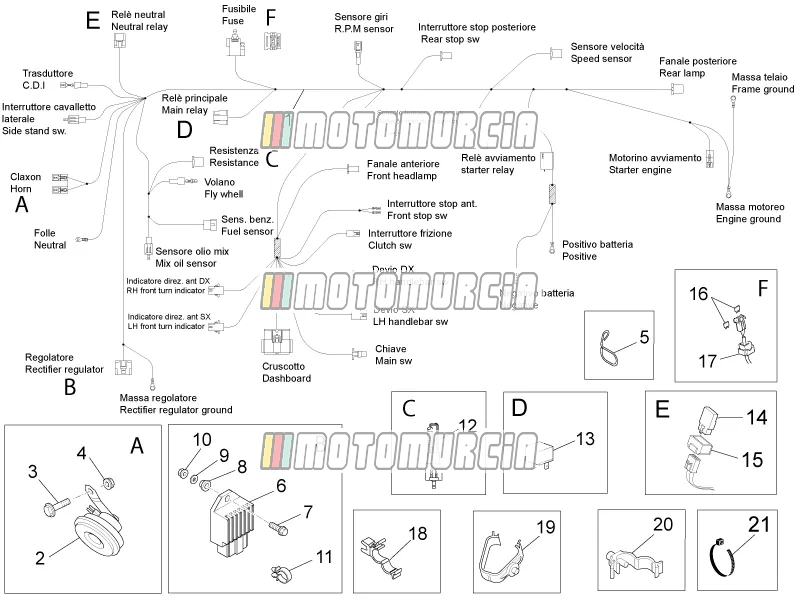

Exploded view — Front Electrical System

Products

1 Main wiring harness 898458 No longer available

• 898458 Main wiring harness
  No longer available

2 Horn 12v cc Available 58237R

•

  Horn Piaggio Group · 58237R Available

  € 15,69

  Add to cart

3 Screw Available AP8152285

•

  Flanged Screw M8x16 Piaggio Group · AP8152285 Available

  € 2,18

  Add to cart

4 Nut Available AP8152300

•

  Standard nut M8 Piaggio Group · AP8152300 Available

  € 2,35

  Add to cart

5 Cable-guide Available AP8120428

•

  Cable Guide Piaggio Group · AP8120428 Available

  € 29,23

  Add to cart

6 Voltage regulator Available 898891

•

  Regulator Piaggio Group · 898891 Available

  € 94,66

  Add to cart

7 Screw Available AP8152279

•

  Flanged Screw M6x20 Piaggio Group · AP8152279 Available

  € 2,18

  Add to cart

8 Spacer Available AP8121075

•

  Sleeve Piaggio Group · AP8121075 Available

  € 2,35

  Add to cart

9 Washer Available AP8150179

•

  Shim 6,6x18 mm Piaggio Group · AP8150179 Available

  € 1,48

  Add to cart

10 Nut Available AP8152299

•

  Collar nut M6, self-locking Piaggio Group · AP8152299 Available

  € 2,18

  Add to cart

11 Elastic spring Available 231590

•

  Clip Piaggio Group · 231590 Available

  € 0,99

  Add to cart

12 Resistor Module Backorder 899436

•

  Resistor Piaggio Group · 899436 Backorder

  € 11,14

  Add to cart

13 Relay - starter Available GU29732550

•

  Side stand switch Piaggio Group · GU29732550 Available

  € 40,49

  Add to cart

14 Relay - starter Available AP8224462

•

  Starting Relay 12 V, 30 A Piaggio Group · AP8224462 Available

  € 25,36

  Add to cart

15 Relay rubber Available AP8220546

•

  Rubber Piaggio Group · AP8220546 Available

  € 4,51

  Add to cart

16 Fuse 7,5A Available CM225707

•

  Fuse 7,5 A Piaggio Group · CM225707 Available

  € 7,51

  Add to cart

17 Rubber fuse box AP8220342 No longer available

• AP8220342 Rubber fuse box
  No longer available

18 Spring Backorder AP9100765

•

  Clip Piaggio Group · AP9100765 · Quantity needed: 8 Backorder

  € 32,00

  Add to cart

19 Cable-guide Available AP8120582

•

  Cable Guide Piaggio Group · AP8120582 Available

  € 7,14

  Add to cart

20 Cable-guide Available AP8134186

•

  Cable Guide Piaggio Group · AP8134186 Available

  € 1,31

  Add to cart

21 Hose clamp 4.5X280 Available AP8120657

•

  Clamp Piaggio Group · AP8120657 Available

  € 2,18

  Add to cart
