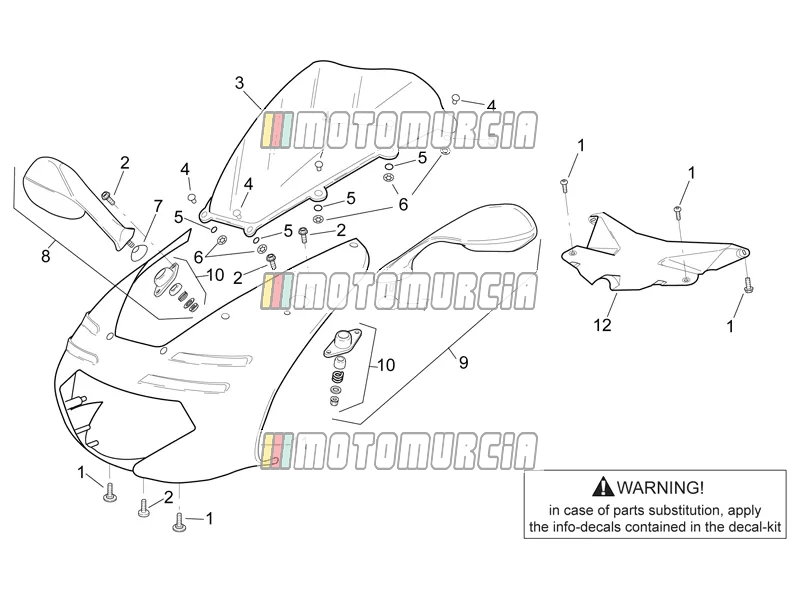

Exploded view — Front Body - Front Fairing

‹ Back to model

Aprilia RSV 1000 1999

Products

1 Screw Available AP8152298

Flanged Screw M5x16 Piaggio Group · AP8152298 · Quantity needed: 6 Available · Shipped in 3–5 working days

€ 3,80

2 Screw Available AP8152246

- Colour: Public Authorities China
- Business
- Business version
Screw M6x16 Piaggio Group · AP8152246 · Quantity needed: 5 Available · Shipped in 3–5 working days

€ 4,37

3 Windshield AP8138560 No longer available

AP8138560 Windshield
No longer available
AP8148459 Windshield
- Country: Australia
- Country: United States of America
No longer available

4 Fixing pin Available AP8144109

- Year of manufacture: 1998
- Year of manufacture: 2003
- Country: United States of America
Pin Piaggio Group · AP8144109 · Quantity needed: 8 Available · Shipped in 3–5 working days

€ 10,48

5 Rubber spacer Available AP8102504

- Colour: Alitalia (t.s.899864)
- Colour: Replica Alitalia (t.s.899863)
- Colour: Replica MY13
- Colour: Replica SBK MY12
- Country: Canada
- Country: United States of America
Gasket Piaggio Group · AP8102504 · Quantity needed: 8 Available · Shipped in 3–5 working days

€ 3,18

6 Washer for shafts D5 (D5) Available AP8150450

- Colour: Alitalia (t.s.899864)
- Colour: Replica Alitalia (t.s.899863)
- Colour: Replica MY13
- Colour: Replica SBK MY12
- Country: Canada
- Country: United States of America
Waved Washer Ø 5,00 mm Piaggio Group · AP8150450 · Quantity needed: 8 Available · Shipped in 3–5 working days

€ 2,47

7 Mirror joint cup Available AP8102341

- Country: Australia
- Country: Europe
- Country: Indonesia-Malaysia-New Zealand-Singapore
Sleeve Piaggio Group · AP8102341 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 2,78

8 RH rearview mirror, blue AP8102886 No longer available

AP8102886 RH rearview mirror, blue
- Colour: Cosmos Blue / Fluo Red
No longer available
AP8102883 RH rearview mirror, black
No longer available

9 LH rearview mirror, blue AP8102887 No longer available

AP8102887 LH rearview mirror, blue
- Colour: Cosmos Blue / Fluo Red
No longer available
AP8102884 LH rearview mirror, black
No longer available

10 Mirror insertion kit Available AP8102909

- Country: Australia
- Country: Europe
Mirror mount Piaggio Group · AP8102909 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 18,84

11 Front fairing, cosmos blue AP8138561 No longer available

AP8138561 Front fairing, cosmos blue
- Colour: Cosmos Blue / Fluo Red
No longer available
AP8139409 Front fairing, black
No longer available

12 Front fairing-dashboard lockup AP8138580 No longer available

AP8138580 Front fairing-dashboard lockup
- Colour: Aprilia Black 2000
- Colour: Electric Blue 2000
- Colour: Flashy Yellow 2000
- Colour: Hot Red 2000
- Year of manufacture: 2000
No longer available
