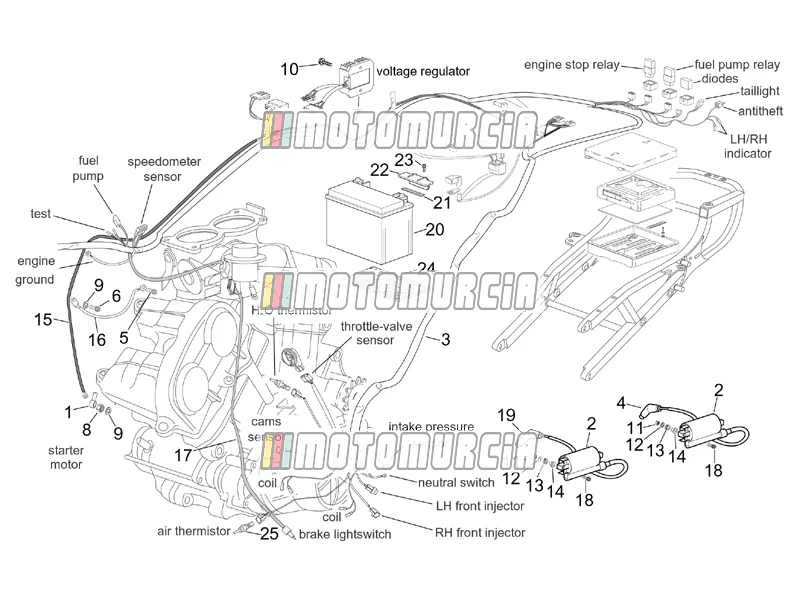

Exploded view — Central Electrical System

‹ Back to model
Aprilia RSV 1000 2002 Aprilia RSV 1000 2002
Central Electrical System

Products

1 Terminal cap Available AP8120218
  • Covering Cap Piaggio Group · AP8120218 Available · Shipped in 3–5 working days
    € 4,39
2 Ignition coil AP0265480 No longer available
  • AP0265480 Ignition coil Quantity needed: 2
    No longer available
3 Main wiring harness AP8127039 No longer available
  • AP8127039 Main wiring harness
    • Country: United States of America
    No longer available
  • AP8127022 Main wiring harness
    No longer available
4 Ext.sparkplug cap AP0265244 No longer available
  • AP0265244 Ext.sparkplug cap
    No longer available
5 Screw (6x12) Available AP8152277
    • Colour: Royal Hashemite Court
    • Country: Canada
    • Country: Germany
    • Country: United States of America
    Flanged Screw M6x12 Piaggio Group · AP8152277 Available · Shipped in 3–5 working days
    € 2,18
6 Screw Available AP8152123
  • Screw M6x8 Piaggio Group · AP8152123 Available · Shipped in 3–5 working days
    € 1,65
7 Voltage regulator AP8124267 No longer available
  • AP8124267 Voltage regulator
    No longer available

    Alternatives from other brands

    REGULATOR, 67 3912 GHMparts · ESR912 Available · Shipped in 4–7 working days
    € 176,61
8 Nut Available AP8150026
    • ABS version
    • Engine with carburettor
    • Standard version
    • Year of manufacture: 2002
    • Year of manufacture: 2003
    • Country: Japan
    • Country: United States of America
    Standard nut Piaggio Group · AP8150026 Available · Shipped in 3–5 working days
    € 1,25
9 Washer (spring) Available 658830
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    • Country: Canada
    • Country: China
    • Country: United States of America
    Washer Piaggio Group · 658830 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 2,00
10 Screw Available AP8152282
    • Country: Canada
    • Country: United States of America
    Flanged Screw M6x35 Piaggio Group · AP8152282 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,48
11 Nut Available AP8150451
    • Country: Canada
    • Country: Italy
    • Country: United States of America
    Standard nut Piaggio Group · AP8150451 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 1,88
12 10 - Washer Available AP8150012
    • Country: United States of America
    Shim Piaggio Group · AP8150012 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 3,99
13 Damper Available AP8120405
  • Sheet nut Piaggio Group · AP8120405 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 6,27
14 10 - Spacer Available AP8121736
    • Full power version
    Sleeve Piaggio Group · AP8121736 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 1,88
15 Relay-starter motor cable Backorder AP8124935
  • Starter Motor Cable Piaggio Group · AP8124935 Backorder · Shipped in 2–4 weeks
    € 48,98
16 Ground-battery lead AP8112832 No longer available
  • AP8112832 Ground-battery lead
    No longer available
17 Brake light switch Available AP8112996
  • Clutch switch Piaggio Group · AP8112996 Available · Shipped in 3–5 working days
    € 82,79
18 Screw Available 855799
    • Carburettor version (C364M)
    Flanged Screw M5x25 Piaggio Group · 855799 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 5,83
19 Int.sparkplug cap AP0265246 No longer available
  • AP0265246 Int.sparkplug cap
    No longer available
20 Battery Available 1R000318
21 Damper Available AP8117033
    • Colour: Multimedia platform
    • ETV Capo Nord RALLY/RAID version
    • ETV Capo Nord Standard version
    Thermal Protection Piaggio Group · AP8117033 Available · Shipped in 3–5 working days
    € 8,66
22 Battery fixing plate AP8148660 No longer available
  • AP8148660 Battery fixing plate
    • RSV Mille "R"acing version
    No longer available
23 Screw Available 598839
    • Colour: Off Black 2009 (s.t.890773)
    • Colour: Off Black 2010 (s.t.895847)
    • Country: China
    • Country: Japan
    • Country: United States of America
    Flanged Screw M6x16 Piaggio Group · 598839 Available · Shipped in 3–5 working days
    € 1,48
24 Battery support rubber Available AP8144045
  • Rubber Piaggio Group · AP8144045 Available · Shipped in 3–5 working days
    € 15,44
25 Air temp. Sensor Backorder AP8124300

More drawings of this model
