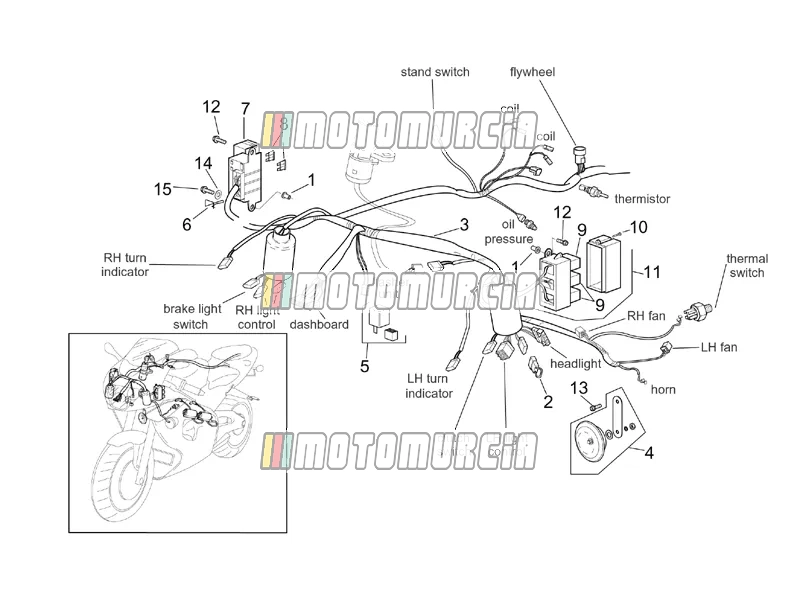

Exploded view — Front Electrical System

‹ Back to model
Aprilia RSV 1000 2002 Aprilia RSV 1000 2002
Front Electrical System

Products

1 Spacer Available AP8121020
  • Spacer 6,5x10x19 Piaggio Group · AP8121020 · Quantity needed: 4 Available
    € 4,38
2 Diode Available AP8212588
  • Diode Piaggio Group · AP8212588 Available
    € 13,30
3 Main wiring harness AP8127022 No longer available
  • AP8127022 Main wiring harness
    No longer available
  • AP8127039 Main wiring harness
    No longer available
4 Horn AP8127391 No longer available
  • AP8127391 Horn
    No longer available
5 Flasher relay Available AP8124235
6 Fuses hook AP8134632 No longer available
  • AP8134632 Fuses hook
    No longer available
  • Clamp Piaggio Group · AP8134480 Backorder
    € 32,95
7 Fuse holder box Available AP8124274
  • Fuse Box Piaggio Group · AP8124274 Available
    € 52,08
8 Fuse (15A) Backorder CM225715
  • Fuse 15 A Piaggio Group · CM225715 · Quantity needed: 8 Backorder
    € 7,51
9 Microrelay with resistance 12V 30A/10A (12V 30A/10A) Available 1D001636
10 Screw Available AP8150421
11 Relais support Backorder AP8124293
  • Clip Board Piaggio Group · AP8124293 Backorder
    € 8,83
12 Screw Available AP8152283
  • Flanged Screw M6x40 Piaggio Group · AP8152283 · Quantity needed: 4 Available
    € 2,47
  • Flanged Screw M6x20 Piaggio Group · AP8152279 · Quantity needed: 3 Available
    € 2,18
13 Screw Available AP8152285
14 Washer Available AP8150014
  • Shim Piaggio Group · AP8150014 · Quantity needed: 2 Available
    € 1,48
15 Screw Available AP8152280

More drawings of this model
