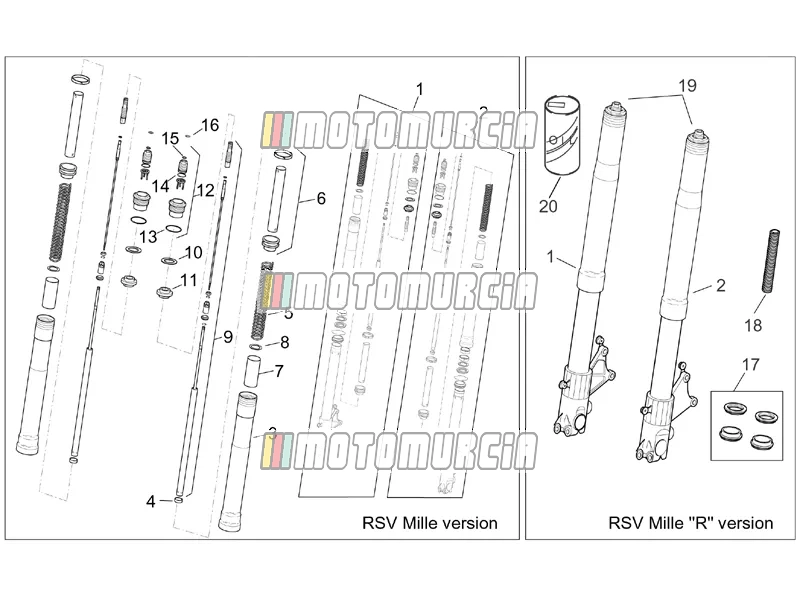

Exploded view — Front Fork I

Products

1 RH hub cpl. AP8123970 No longer available

• AP8123970 RH hub cpl.
  No longer available
• AP8123637 RH hub cpl.
  No longer available

2 LH hub cpl. AP8123971 No longer available

• AP8123971 LH hub cpl.
  No longer available
• AP8123638 LH hub cpl.
  No longer available

3 Sleeve AP8123829 No longer available

• AP8123829 Sleeve Quantity needed: 2
  No longer available

4 Plunger attachment bush Available AP8123810

•

  Lock Piaggio Group · AP8123810 · Quantity needed: 2 Available

  € 17,12

  Add to cart

5 Spring AP8123831 No longer available

• AP8123831 Spring Quantity needed: 2
  No longer available

6 Preload tube cpl. Available AP8123832

•

  Preload Tube Piaggio Group · AP8123832 · Quantity needed: 2 Available

  € 183,46

  Add to cart

7 Spacer Backorder AP8123835

•

  Spacer Piaggio Group · AP8123835 · Quantity needed: 2 Backorder

  € 17,12

  Add to cart

8 Washer Available AP8123836

•

  Shim Piaggio Group · AP8123836 · Quantity needed: 2 Available

  € 9,00

  Add to cart

9 Plunger, complete AP8123830 No longer available

• AP8123830 Plunger, complete Quantity needed: 2
  No longer available

10 Washer Available AP8123816

•

  Shim Piaggio Group · AP8123816 · Quantity needed: 2 Available

  € 14,34

  Add to cart

11 Ring Available AP8123815

•

  Dust guard Piaggio Group · AP8123815 · Quantity needed: 2 Available

  € 17,12

  Add to cart

12 Sleeve plug cpl. AP8123833 No longer available

• AP8123833 Sleeve plug cpl. Quantity needed: 2
  No longer available

13 O-Ring Available AP8123834

•

  O-Ring Piaggio Group · AP8123834 · Quantity needed: 2 Available

  € 8,74

  Add to cart

14 O-Ring Backorder AP8123819

•

  O-Ring Piaggio Group · AP8123819 · Quantity needed: 2 Backorder

  € 17,12

  Add to cart

15 O-Ring Backorder AP8123820

•

  O-Ring Piaggio Group · AP8123820 · Quantity needed: 2 Backorder

  € 17,12

  Add to cart

16 Stop ring Available AP8123821

•

  Locking Ring Piaggio Group · AP8123821 · Quantity needed: 2 Available

  € 14,34

  Add to cart

17 Front fork revision kit Available 2B006021

•

  Fork oil seal set Piaggio Group · 2B006021 Available

  € 127,82

  Add to cart

18 Spring AP8163057 No longer available

• AP8163057 Spring Quantity needed: 2
  No longer available

19 Plug cpl. AP8123977 No longer available

• AP8123977 Plug cpl. Quantity needed: 2
  No longer available

20 Front fork oil 1 lt. Available AP8116071

•

  Fork Oil, 1 l, SAE 7,5W, Öhlins Piaggio Group · AP8116071 Available

  € 87,10

  Add to cart
