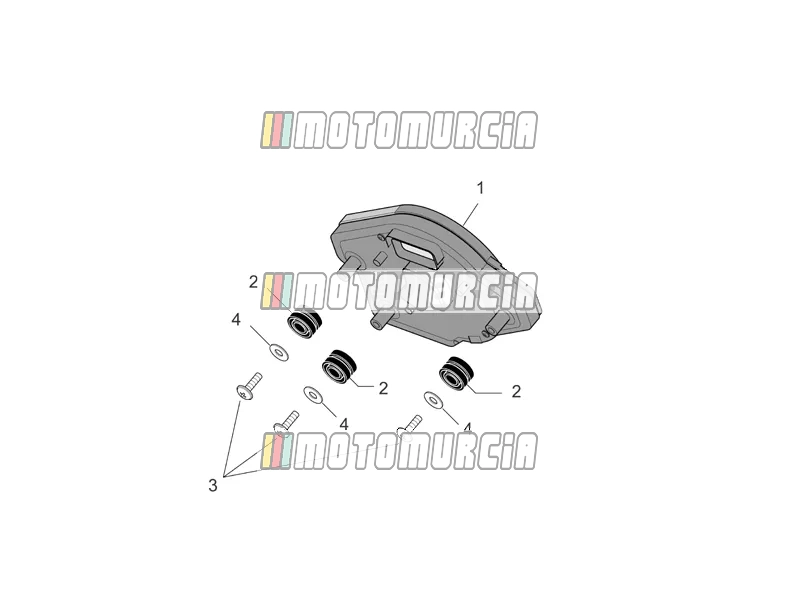

Exploded view — Dashboard

‹ Back to model

Aprilia RSV 1000 2006

Products

1 Dashboard AP8127689 No longer available

AP8127689 Dashboard
- RSV Mille "R" version
No longer available
AP8127833 Dashboard
- Factory "R" RSV version
No longer available

2 Damper Available AP8220150

Buffer Piaggio Group · AP8220150 · Quantity needed: 3 Available · Shipped in 3–5 working days

€ 4,20

3 Screw Available AP8150509

- Colour: Special Edition
- "GTL" version
- Year of manufacture: 2012
- Year of manufacture: 2013
Thread Screw Piaggio Group · AP8150509 · Quantity needed: 3 Available · Shipped in 3–5 working days

€ 2,35

4 Washer Available AP8150382

- Colour: Tuscany Tibet 2003
Shim 15x5,5x1,2 mm Piaggio Group · AP8150382 · Quantity needed: 3 Available · Shipped in 3–5 working days

€ 2,18
