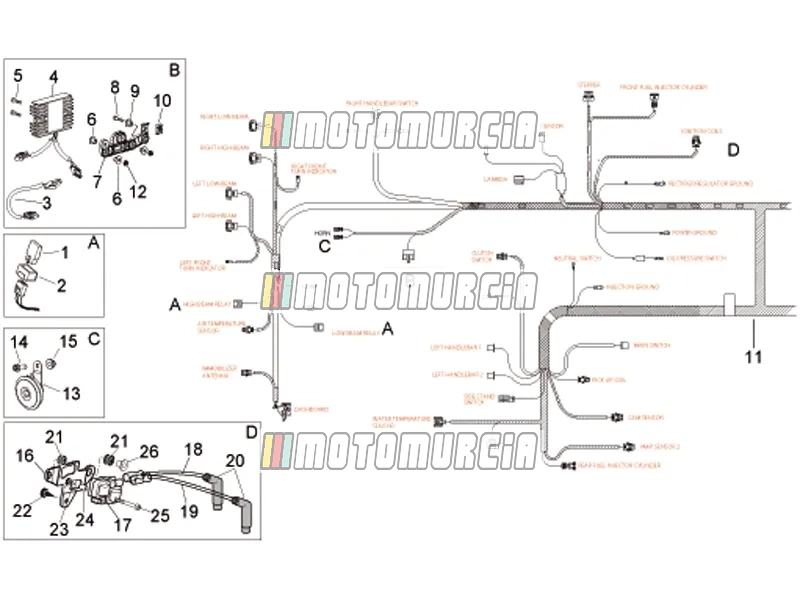

Exploded view — Electrical System I

Products

1 Relay - starter Available AP8224462

•

  Starting Relay 12 V, 30 A Piaggio Group · AP8224462 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 25,36

  Add to cart

2 Rubber spacer * Available AP8220283

• • "DITECH" engine with direct fuel injection
  • Injection version (C361M)
  • State police version


  Bracket Piaggio Group · AP8220283 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 3,03

  Add to cart

3 Wiring Available AP8127711

•

  Cable from controller to armature plate Piaggio Group · AP8127711 Available · Shipped in 3–5 working days

  € 89,90

  Add to cart

4 Voltage regulator Available AP8127144

•

  Regulator Piaggio Group · AP8127144 Available · Shipped in 3–5 working days

  € 276,78

  Add to cart

  Alternatives from other brands



  REGULATOR, 67 3549 GHMparts · ESR549 Available · Shipped in 4–7 working days

  € 189,93

  Add to cart

5 Screw Available AP8152280

•

  Flanged Screw M6x25 Piaggio Group · AP8152280 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,77

  Add to cart

7 Voltage regulator support AP8146914 No longer available

• AP8146914 Voltage regulator support
  No longer available

8 Screw Available AP8152003

• • Year of manufacture: MY 2024/2025


  Screw M6x40 Piaggio Group · AP8152003 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

9 Spacer Available AP8121032

• • Country: Canada
  • Country: China
  • Country: United States of America


  Sleeve Piaggio Group · AP8121032 Available · Shipped in 3–5 working days

  € 4,36

  Add to cart

10 Clip nuts (M6) Available 254485

• • Year of manufacture: 2012
  • Year of manufacture: 2013


  Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days

  € 2,04

  Add to cart

11 Main wiring harness AP8127704 No longer available

• AP8127704 Main wiring harness
  No longer available

12 Nut Available AP8152299

• • Colour: Limited Edition green 2013
  • Colour: Public Authorities China
  • Colour: Tuscany Tibet 2003


  Collar nut M6, self-locking Piaggio Group · AP8152299 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

13 Horn AP8127727 No longer available

• AP8127727 Horn
  No longer available

14 Screw Available AP8152286

• • Colour: Tuscany Tibet 2003


  Flanged Screw M8x20 Piaggio Group · AP8152286 Available · Shipped in 3–5 working days

  € 2,93

  Add to cart

15 Nut Available AP8152300

• • Colour: Tuscany Tibet 2003


  Standard nut M8 Piaggio Group · AP8152300 Available · Shipped in 3–5 working days

  € 2,35

  Add to cart

16 Coil holder AP8134889 No longer available

• AP8134889 Coil holder
  No longer available

17 Ignition coil AP0266070 No longer available

• AP0266070 Ignition coil
  No longer available

18 HT wire AP0266145 No longer available

• AP0266145 HT wire
  No longer available

19 HT wire AP0266140 No longer available

• AP0266140 HT wire
  No longer available

20 Int.sparkplug cap AP0265246 No longer available

• AP0265246 Int.sparkplug cap Quantity needed: 2
  No longer available

21 Rubber spacer Available AP8120030

• • Year of manufacture: 1995
  • Year of manufacture: 2010


  Buffer Piaggio Group · AP8120030 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,83

  Add to cart

22 Damper Available AP8220238

• • Colour: Alitalia (t.s.899864)
  • Colour: Replica Alitalia (t.s.899863)
  • Colour: Replica MY13
  • Colour: Replica SBK MY12


  Rubber stop Piaggio Group · AP8220238 Available · Shipped in 3–5 working days

  € 3,18

  Add to cart

23 Washer Available AP8150015

• • Colour: """GARDA"" Bluevert 2001"
  • Colour: Tuscany Tibet 2003


  Shim Piaggio Group · AP8150015 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

24 Spacer Available AP8121020

• • Engine with carburettor
  • Country: China
  • Country: United States of America


  Spacer 6,5x10x19 Piaggio Group · AP8121020 Available · Shipped in 3–5 working days

  € 4,38

  Add to cart

25 Screw Available AP8150202

• • Full power version
  • Country: Europe
  • Country: Switzerland


  Screw M6x50 Piaggio Group · AP8150202 Available · Shipped in 3–5 working days

  € 2,47

  Add to cart

26 Spacer Available AP8121075

• • Year of manufacture: 1996
  • Year of manufacture: 2007


  Sleeve Piaggio Group · AP8121075 Available · Shipped in 3–5 working days

  € 2,35

  Add to cart
