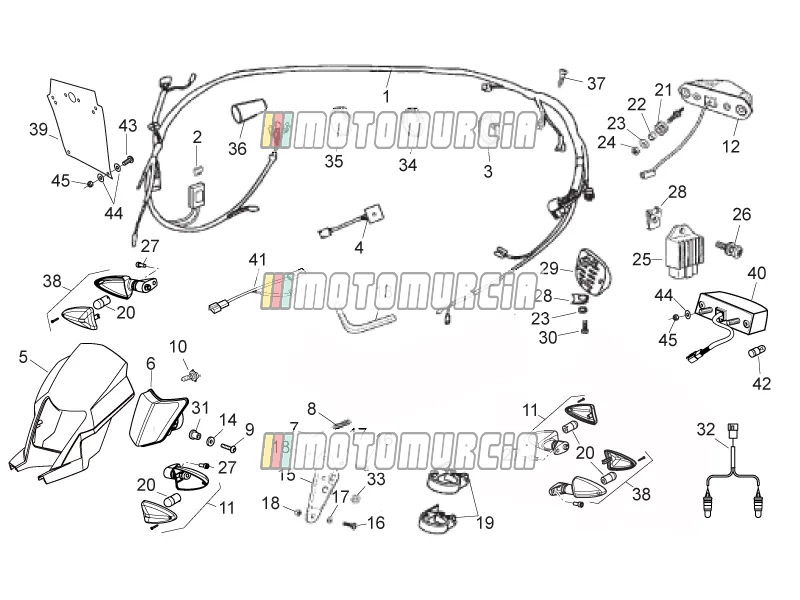

Exploded view — Electrical System

‹ Back to model
Aprilia RX 50 2017 Aprilia RX 50 2017
Electrical System

Products

1 Main wiring harness Backorder 867477
2 Fuse (7,5A) Backorder 00H01001911
  • Fuse 7,5 A Piaggio Group · 00H01001911 Backorder
    € 15,67
3 Hose clamp Available 00D00900531
  • Clamp Piaggio Group · 00D00900531 Available
    € 1,65
4 Flasher relay Available 00H05700481
5 Front headlight cov. Backorder 2B000016000XN4
6 Headlight Available 855038
  • Head Lights Piaggio Group · 855038 Available
    € 151,79
7 Screw Available 00012045000
  • Screw M4 Piaggio Group · 00012045000 Available
    € 1,25
8 Spring Available 00H02304501
  • Spring Piaggio Group · 00H02304501 Available
    € 3,91
9 Screw Available AP8152137
  • Screw M6x20 Piaggio Group · AP8152137 · Quantity needed: 2 Available
    € 2,63
10 Bulb (HS1 35 35W 12V) Available 231215
11 Turn indicator Available AP8127784
12 Taillight assy. Available 00H01009321
  • Rear light Piaggio Group · 00H01009321 Available
    € 110,78
13 Gasket Available 00H05700101
  • Gasket Piaggio Group · 00H05700101 Available
    € 8,72
14 Washer Available AP8152181
  • Washer 6,4x15x1 mm Piaggio Group · AP8152181 · Quantity needed: 2 Available
    € 0,99
15 Maintenance Available 00H01502741
16 Screw Available 00012051200
  • Screw M5 Piaggio Group · 00012051200 Available
    € 1,72
17 Washer Available 847181
  • Washer Piaggio Group · 847181 · Quantity needed: 4 Available
    € 21,21
18 Nut Backorder 00026005000
  • Standard nut Piaggio Group · 00026005000 · Quantity needed: 4 Backorder
    € 1,48
19 Hose clamp Backorder 00H04603841
  • Clamp Piaggio Group · 00H04603841 · Quantity needed: 4 Backorder
    € 9,90
20 Bulb (12V 10W BA15s) Available AP8127489
21 Damper Available 00008915020
  • Vibrations Damper Piaggio Group · 00008915020 · Quantity needed: 2 Available
    € 2,49
22 Spacer Available 00D01500471
  • Standard nut Piaggio Group · 00D01500471 · Quantity needed: 2 Available
    € 8,66
23 Washer Available 00D01200171
  • Shim Ø 6,00 mm Piaggio Group · 00D01200171 · Quantity needed: 2 Available
    € 1,48
24 Nut Available 00000023060
  • Standard nut M6 Piaggio Group · 00000023060 · Quantity needed: 4 Available
    € 0,99
25 Voltage regulator Available 898891
  • Regulator Piaggio Group · 898891 Available
    € 94,66
26 Screw Available 00D05910081
  • Screw M6x16 Piaggio Group · 00D05910081 Available
    € 1,48
27 Screw Available AP8150044
  • Screw M6x20 Piaggio Group · AP8150044 · Quantity needed: 4 Available
    € 1,48
28 Clip nuts (M6) Available 254485
  • Sheet nut Piaggio Group · 254485 Available
    € 2,04
29 Horn 00H01005311 No longer available
  • 00H01005311 Horn
    No longer available
30 Screw Available 00012061200
  • Screw M6 Piaggio Group · 00012061200 Available
    € 1,44
31 Spacer Available AP8121991
  • Sleeve Piaggio Group · AP8121991 · Quantity needed: 2 Available
    € 3,93
32 Town lights switch wiring Backorder 856610
  • Wiring Harness Piaggio Group · 856610 Backorder
    € 45,87
  • Spring Piaggio Group · 00003710120 Available
    € 10,59
33 Spacer (rubber) Available 00H05701061
  • Connector Piaggio Group · 00H05701061 Available
    € 4,01
34 Hose clamp 290X4,8 Backorder 00F00900531
36 Guard Backorder 00H02300961
37 Screw Backorder 00011061300
  • Screw Piaggio Group · 00011061300 Backorder
    € 5,60
38 Turn indicator Available AP8127783
39 License plate Backorder 861313
40 Lamp assy, number plate Backorder 00H05700471
41 Plate light wiring Backorder 861315
42 Bulb (12V 5W) Available 00H01003131
43 Screw Available AP8150280
  • Screw Piaggio Group · AP8150280 Available
    € 5,83
44 Washer Available AP8150248
  • Shim 5,5x15x1,6 mm Piaggio Group · AP8150248 · Quantity needed: 4 Available
    € 1,26
45 Low self-locking nut Available AP8150311
  • Standard nut Piaggio Group · AP8150311 · Quantity needed: 6 Available
    € 0,99
