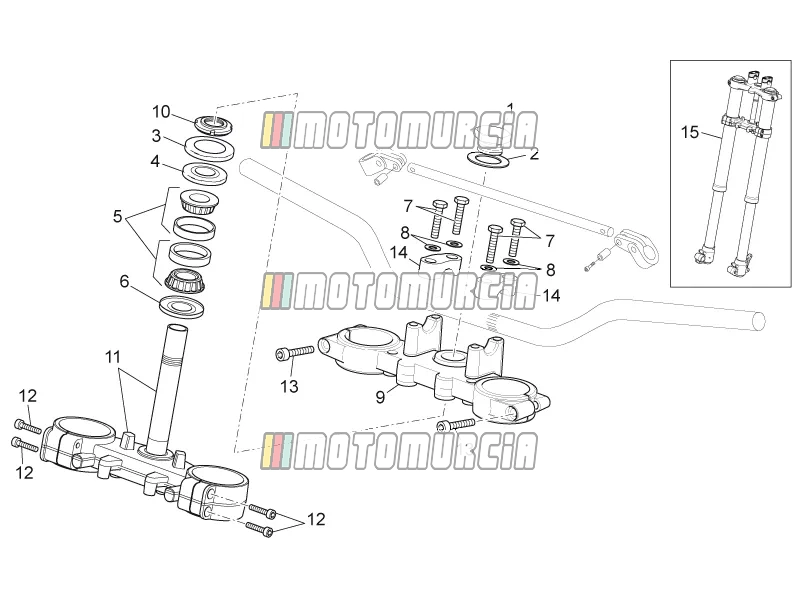

Exploded view — Front Fork

‹ Back to model

Aprilia RX - SX 125 2009

Products

1 Plug Available AP8203251

Screw M20x1.5 Piaggio Group · AP8203251 Available · Shipped in 3–5 working days

€ 29,23

2 Washer AP8123189 No longer available

AP8123189 Washer
No longer available

3 Dust cover Available AP8120211

Dust guard Piaggio Group · AP8120211 Available · Shipped in 3–5 working days

€ 15,61

4 Spacer Available AP8101272

- Challenge version United States
- Country: United States of America
Spacer disc Piaggio Group · AP8101272 Available · Shipped in 3–5 working days

€ 12,41

5 Steering bearing Available AP8110024

- Challenge version United States
- Country: United States of America
Roller bearing 25x52x15 mm Piaggio Group · AP8110024 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 66,01

6 Gasket Available AP8104597

Gasket Piaggio Group · AP8104597 Available · Shipped in 3–5 working days

€ 13,12

7 Hex screw M7x35 (M7x35) AP8203426 No longer available

AP8203426 Hex screw M7x35 (M7x35) Quantity needed: 4
No longer available

8 Washer AP8203427 No longer available

AP8203427 Washer Quantity needed: 4
No longer available

9 Fork upper plate Available AP8203424

- European approval (Euro 1 limits)
- Limited version 45 km/h
- National approval
Yoke Piaggio Group · AP8203424 Available · Shipped in 3–5 working days

€ 148,83

10 Fork lower ring nut Available AP8203588

- Fork without letter S on hub
Threaded ring Piaggio Group · AP8203588 Available · Shipped in 3–5 working days

€ 29,78

11 Stem base AP8163384 No longer available

AP8163384 Stem base
No longer available

12 Screw AP8163385 No longer available

AP8163385 Screw Quantity needed: 4
No longer available

13 Screw Available AP8150236

- Country: Japan
Screw M8x35 Piaggio Group · AP8150236 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 1,48

14 U-bolt Backorder AP8203425

Handlebar clamp bracket Piaggio Group · AP8203425 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 28,10

15 Front fork 856714 No longer available

856714 Front fork
No longer available
