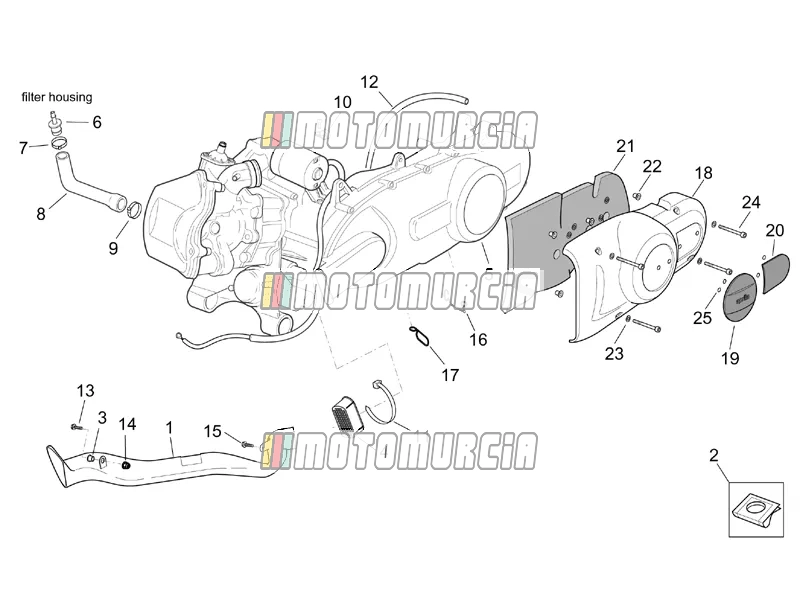

Exploded view — Engine » Engine Assembly

‹ Back to model
Aprilia Scarabeo 125-150-200 (Rotax) 2000 Aprilia Scarabeo 125-150-200 (Rotax) 2000
Engine » Engine Assembly

Products

1 Variator air intake AP8139249 No longer available
  • AP8139249 Variator air intake
    No longer available
2 Clip nuts (M6) Available 254485
  • Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available
    € 2,04
3 Spacer Available AP8121075
  • Sleeve Piaggio Group · AP8121075 Available
    € 2,35
4 Variator air intake grid AP8168045 No longer available
  • AP8168045 Variator air intake grid
    No longer available
5 Engine 180 AP8106943 No longer available
  • AP8106943 Engine 180
    No longer available
  • AP8176107 Engine
    No longer available
  • AP8106601 Engine 120s
    No longer available
  • AP8106843 Complete engine, water cooled s
    No longer available
  • AP8106552 Engine 154s
    No longer available
  • AP8106860 Engine 180
    No longer available
  • AP8106842 Engine, complete 120 s
    No longer available
6 2-way union Available AP8102576
7 Clamp Available AP8201169
  • Hose clamp Piaggio Group · AP8201169 Available
    € 5,82
8 Oil breather pipe AP8120977 No longer available
  • AP8120977 Oil breather pipe
    No longer available
9 Clamp Available AP8201409
10 Brake hose hanger Available AP8134167
  • Clamp Piaggio Group · AP8134167 Available
    € 20,56
11 Hose clamp 4.5X280 Available AP8120657
  • Clamp Piaggio Group · AP8120657 Available
    € 2,18
12 Fuel pipe 5,5x10 (5,5x10) Available 896544
13 Screw Available AP8152279
14 Nut Available AP8152299
15 Screw Available 598839
16 Cable-guide Available AP8121889
  • Cable Guide Piaggio Group · AP8121889 Available
    € 5,83
17 Cable-guide AP8120802 No longer available
  • AP8120802 Cable-guide
    No longer available
18 Crank-case cover AP8158477 No longer available
  • AP8158477 Crank-case cover
    No longer available
  • AP8168213 Crank-case cover
    No longer available
19 Front slide piece Backorder AP8144547
  • Covering Cap Piaggio Group · AP8144547 Backorder
    € 6,32
20 Rear slide piece AP8144548 No longer available
  • AP8144548 Rear slide piece
    No longer available
21 Insulator AP8117202 No longer available
  • AP8117202 Insulator
    No longer available
22 Spacer AP8121593 No longer available
  • AP8121593 Spacer Quantity needed: 4
    No longer available
23 Washer for shafts D5 (D5) Available AP8150450
24 Screw Available AP8150045
  • Screw M6x55 Piaggio Group · AP8150045 · Quantity needed: 4 Available
    € 5,13
25 Rubber spacer Available AP8102504
  • Gasket Piaggio Group · AP8102504 · Quantity needed: 4 Available
    € 3,18
