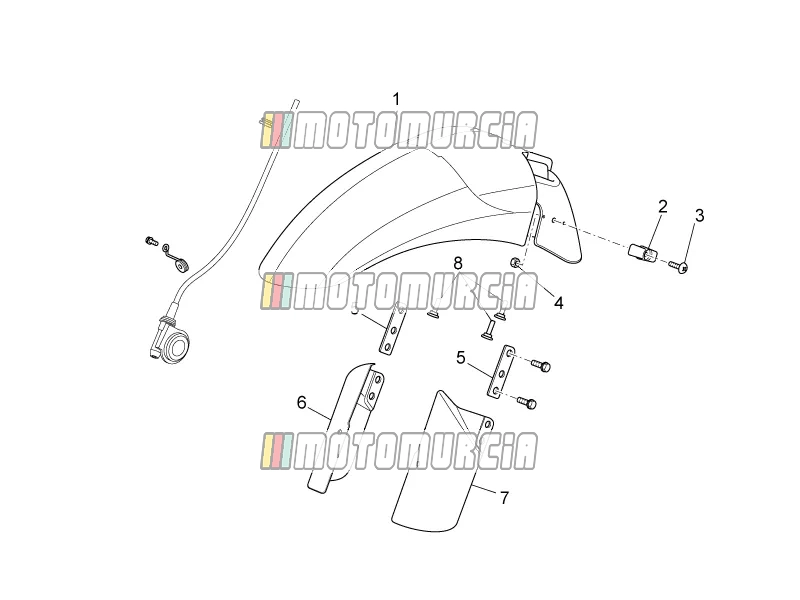

Exploded view — Frame » Front Body - Front Mudguard

‹ Back to model

Aprilia Scarabeo 125-200 IE Light 2010

Products

1 Front mudguard JC531119200007B No longer available

JC531119200007B Front mudguard
No longer available
Mudguard front, white Piaggio Group · JC531119200007D Backorder

€ 224,89
Mudguard front, primed Piaggio Group · JC53111X92000 Available

€ 175,41
JC531119200007M Front mudguard, yellow
No longer available
Mudguard front, blue Piaggio Group · JC531119200006Z Backorder

€ 213,65
JC531119200006B Front mudguard
No longer available
JC531119200007L Front mudguard, green
No longer available
JC531119200007C Front mudguard, grey
No longer available

2 Cable-guide Backorder JC53511X92000

Clamp Piaggio Group · JC53511X92000 Backorder

€ 6,16

3 Screw Backorder JC02142X05253

Screw Piaggio Group · JC02142X05253 Backorder

€ 1,82

4 Nut Backorder JCB51100500JN00

Standard nut Piaggio Group · JCB51100500JN00 Backorder

€ 2,09

5 Plate Backorder JC53313X92000

Bracket Piaggio Group · JC53313X92000 · Quantity needed: 2 Backorder

€ 5,09

6 Rh hub cover Backorder JC53412X92000

Cover, right Piaggio Group · JC53412X92000 Backorder

€ 39,76

7 Lh hub cover Backorder JC53312X92000

Cover, left Piaggio Group · JC53312X92000 Backorder

€ 39,76

More drawings of this model

View all →
