Exploded view — Frame » Front Body - Front Fairing

‹ Back to model
Aprilia Scarabeo 125-200 IE Light 2012 Aprilia Scarabeo 125-200 IE Light 2012

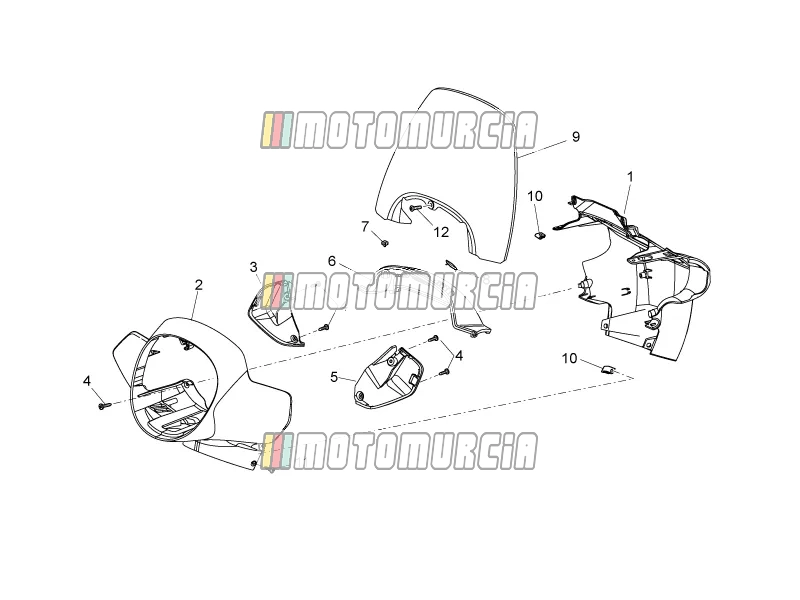

Frame » Front Body - Front Fairing

Products

1 Handlebar cover, red 672600008G No longer available
2 White handlebar cover Backorder 672598007D
3 Rh handguard Backorder 672590000C
4 Screw Available AP8150413
5 Lh handguard Backorder 672589000C
6 Dashboard panel blank Backorder JC47321X92000
  • Cover Piaggio Group · JC47321X92000 · Quantity needed: 2 Backorder
    € 14,94
7 Rh cover Available JC47323X92000
  • Lid, right Piaggio Group · JC47323X92000 · Quantity needed: 2 Available
    € 6,21
8 Lh cover Available JC47322X92000
  • Lid, left Piaggio Group · JC47322X92000 · Quantity needed: 2 Available
    € 6,21
9 Windshield 672076 No longer available
  • 672076 Windshield
    No longer available
  • Windscreen Piaggio Group · 672079 Backorder
    € 120,58
10 Clip nuts Available AP8202449
  • Sheet nut Piaggio Group · AP8202449 · Quantity needed: 6 Available
    € 2,18
11 Screw (4,2x13) Backorder JC09137X92000
  • Oval Head Screw Piaggio Group · JC09137X92000 · Quantity needed: 6 Backorder
    € 3,18
12 Screw Available JC02142X05203
  • Screw Piaggio Group · JC02142X05203 · Quantity needed: 3 Available
    € 0,99

More drawings of this model
