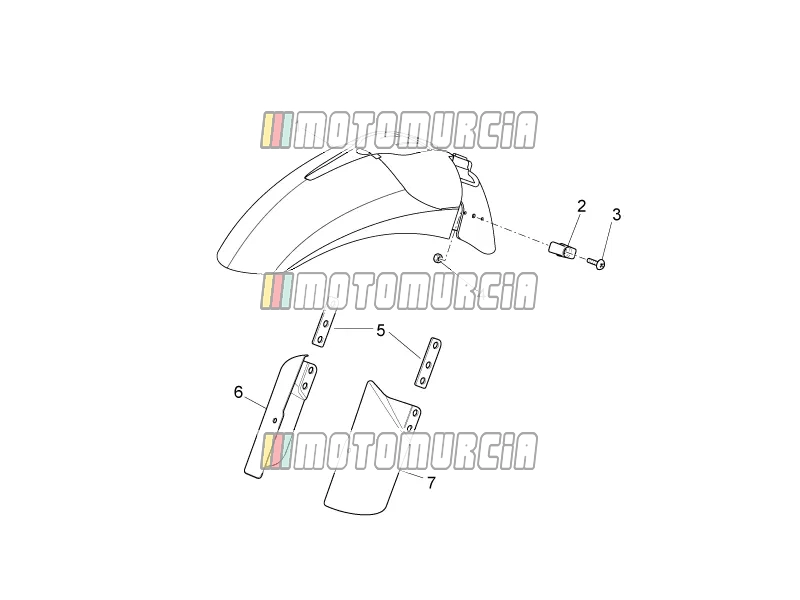

Exploded view — Frame » Front Body - Front Mudguard

‹ Back to model

Aprilia Scarabeo 125-200 IE Light 2012

Products

1 Front mudguard Backorder 672586007D

Mudguard front, white, Suffix: 7D_white flair Piaggio Group · 672586007D Backorder

€ 229,90
Mudguard front, black, Suffix: 7B_black Aprilia Piaggio Group · 672586007B Backorder

€ 229,90
672586007C Front mudguard
No longer available
Mudguard front, red, Suffix: 8G_red garnet Piaggio Group · 672586008G Backorder

€ 229,90
Mudguard front, primed Piaggio Group · 672586 Backorder

€ 170,95
672586008F Front mudguard
No longer available
672586006B Front mudguard
No longer available

2 Cable-guide Backorder JC53511X92000

Clamp Piaggio Group · JC53511X92000 Backorder

€ 6,16

3 Screw Backorder JC02142X05253

Screw Piaggio Group · JC02142X05253 Backorder

€ 1,82

4 Nut Backorder JCB51100500JN00

Standard nut Piaggio Group · JCB51100500JN00 Backorder

€ 2,09

5 Plate Backorder JC53313X92000

Bracket Piaggio Group · JC53313X92000 · Quantity needed: 2 Backorder

€ 5,09

6 Rh hub cover Backorder JC53412X92000

Cover, right Piaggio Group · JC53412X92000 Backorder

€ 39,76

7 Lh hub cover Backorder JC53312X92000

Cover, left Piaggio Group · JC53312X92000 Backorder

€ 39,76
