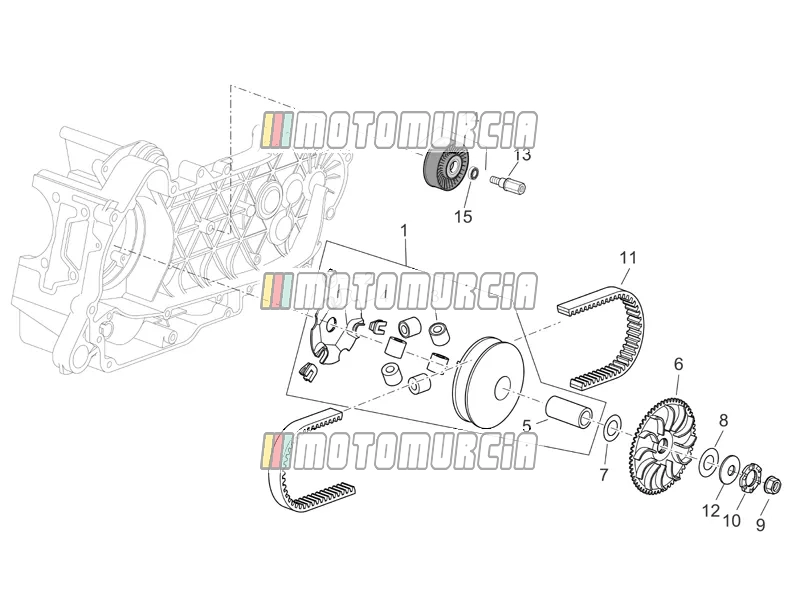

Exploded view — Engine » Variator Assembly
‹ Back to model
Aprilia Scarabeo 125-250 (Piaggio) 2006
Products
1 Variator Available
-
Variator with 6 rollers Piaggio Group · CM144403 Available€ 103,14
-
Variator with 6 rollers Piaggio Group · CM144407 Available€ 101,66
2 Variator slider Available
3 Pin roller (- 11,2 g) Available
-
Variator roller 21x17 mm, 12,0 g, Content: 1 Stk Piaggio Group · 842870 · Quantity needed: 6 Available€ 6,10
-
Variator weights 19x17 mm, 7,4 g, Content: 6 Stk Piaggio Group · CM1038045 Available€ 18,68
4 Roller housing back plate Available
5 Spacer Available
-
Converter Hub Piaggio Group · 483889 Available€ 39,86
6 V-Belt Pulley Available
-
Pulley halves Piaggio Group · 845607 Available€ 53,86
-
Pulley halves Piaggio Group · 840193 Available€ 45,17
7 Washer Available
-
Shim Piaggio Group · 434885 Available€ 2,35
8 Washer Available
-
Shim 12,1x36x2 mm Piaggio Group · 840533 Available€ 2,57
-
Shim Piaggio Group · 433391 Available€ 4,96
9 Flanged nut M12 Available
-
Standard nut Piaggio Group · B015804 Available€ 8,00
-
Standard nut M12x1.25 Piaggio Group · 486324 Available€ 1,31
10 Teethed bush Available
-
Star disk 34,58x17,1x4 mm Piaggio Group · 827386 Available€ 17,81
11 V-Belt Available
12 Belleville spring 0,5x35x17 Available
-
Cup Spring Piaggio Group · 880950 Available€ 8,68
13 Screw Available
-
Screw Piaggio Group · 829326 Available€ 6,73
14 Toothed pulley Available
-
Toothed Belt Pulley Piaggio Group · 833989 Available€ 74,26
