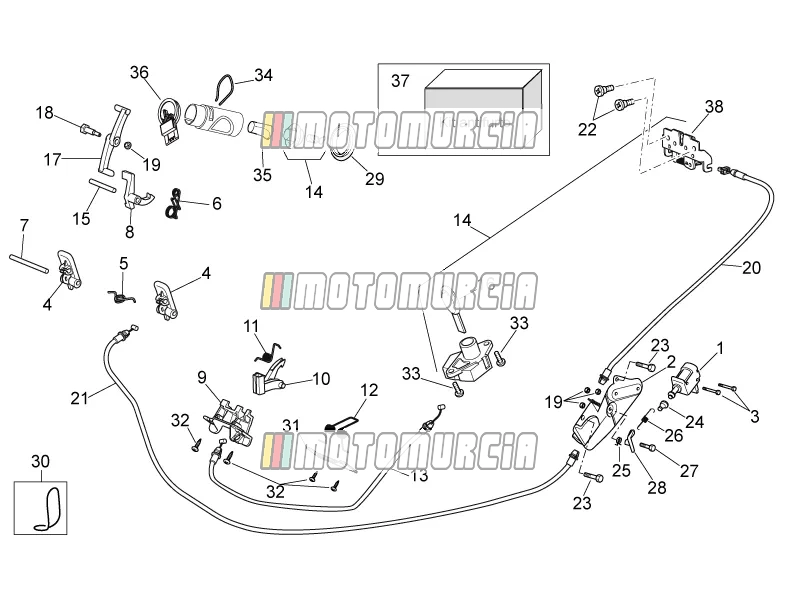

Exploded view — Frame » Lock Hardware Kit
‹ Back to model
Aprilia Scarabeo 300 Light 2012
Products
1 Solenoid valve Available
-
Actuator Piaggio Group · 1D002276R Available · Shipped in 3–5 working days€ 71,33
2 Saddle lock plate Backorder
-
Plate Piaggio Group · 577130 Backorder · Shipped in 2–4 weeks€ 22,19
3 Screw Available
-
Hexagon Screw Piaggio Group · 584121 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 11,85
4 Lever Available
-
Lever Piaggio Group · 577861 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 6,59
5 Spring
-
575610 SpringNo longer available
6 Spring Available
-
Spring Piaggio Group · 1B003658 Available · Shipped in 3–5 working days€ 3,86
7 Pin Backorder
-
Bolts Piaggio Group · 575062 Backorder · Shipped in 2–4 weeks€ 4,16
8 Pawl Available
-
Lever Piaggio Group · 575607 Available · Shipped in 3–5 working days€ 3,28
9 Maintenance Available
-
Bracket for fairing Piaggio Group · 620491 Available · Shipped in 3–5 working days€ 4,43
10 Cam lever Available
-
Hooks Piaggio Group · 576626 Available · Shipped in 3–5 working days€ 2,44
11 Spring Available
-
Spring Piaggio Group · 575604 Available · Shipped in 3–5 working days€ 3,27
12 Spring
-
851532 SpringNo longer available
13 Door fastener Backorder
-
Actuating cable Piaggio Group · AP8114492 Backorder · Shipped in 2–4 weeks€ 40,23
14 Rotor kit with key
-
AP8202455 Rotor kit with keyNo longer available
15 2 - Pin Available
-
Bracket Piaggio Group · 575021 Available · Shipped in 3–5 working days€ 14,82
16 Key blank
-
AP8104598 Key blank
- Red keyhole
- Year of manufacture: 2003
- Year of manufacture: 2004
-
AP8202409 "scarabeo" key w/out transpo.
- Keyhole black
17 Lock lever Available
-
Lever Piaggio Group · AP8202456 Available · Shipped in 3–5 working days€ 8,74
18 Lever pin Backorder
-
Screw Piaggio Group · AP8202457 Backorder · Shipped in 2–4 weeks€ 8,74
19 Nut Available
-
- Colour: Public Authorities China
- Colour: Special Edition
Standard nut M4 Piaggio Group · AP8150204 Available · Shipped in 3–5 working days€ 2,18
20 Saddle fastener Backorder
-
Seat release cable Piaggio Group · AP8114499 Backorder · Shipped in 2–4 weeks€ 15,40
21 Saddle release cable Available
-
Seat release cable Piaggio Group · AP8114498 Available · Shipped in 3–5 working days€ 13,66
22 Screw Available
-
- Colour: Public Authorities China
- Business
- Business version
Screw M6x16 Piaggio Group · AP8152246 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 4,37
23 5 - Screw Available
-
Oval Head Screw M4x12 Piaggio Group · AP8150359 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,48
24 Joint Available
-
Universal Joint Piaggio Group · 577128 Available · Shipped in 3–5 working days€ 4,59
25 Spring Available
-
Wire Tensioning Spring Piaggio Group · 253937 Available · Shipped in 3–5 working days€ 2,77
26 Spring Available
-
Spring Piaggio Group · 620415 Available · Shipped in 3–5 working days€ 6,12
27 Screw Available
-
Screw M4 Piaggio Group · 299972 Available · Shipped in 3–5 working days€ 1,43
28 Lever Available
-
Lever Piaggio Group · 577129 Available · Shipped in 3–5 working days€ 7,03
29 2 - Commutator cap Available
-
Covering Cap Piaggio Group · 582041 Available · Shipped in 3–5 working days€ 2,73
30 Cable-guide Available
-
- Rear drum brake
Cable Guide Piaggio Group · AP8121856 Available · Shipped in 3–5 working days€ 14,90
31 Plate
-
575605 PlateNo longer available
32 Screw Available
-
- Colour: Alitalia (t.s.899864)
- Colour: Replica Alitalia (t.s.899863)
- Colour: Replica MY13
- Colour: Replica SBK MY12
Thread Screw 3,9x14 mm, stainless steel Piaggio Group · AP8150413 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 1,80
33 Screw Available
-
Flanged Screw M5x16 Piaggio Group · AP8152298 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 3,80
34 Cylinder retainer spring Available
-
Spring Piaggio Group · 298838 Available · Shipped in 3–5 working days€ 2,26
35 Block Available
-
Lock Bolt Piaggio Group · 577816 Available · Shipped in 3–5 working days€ 41,82
36 Key switch Available
-
Ignition switch Piaggio Group · 643132 Available · Shipped in 3–5 working days€ 31,02
37 Anti-theft kit
-
AP8127796 Anti-theft kitNo longer available
38 Saddle/flap tightening Available
-
Lock Mounting Piaggio Group · CM023704 Available · Shipped in 3–5 working days€ 28,29
