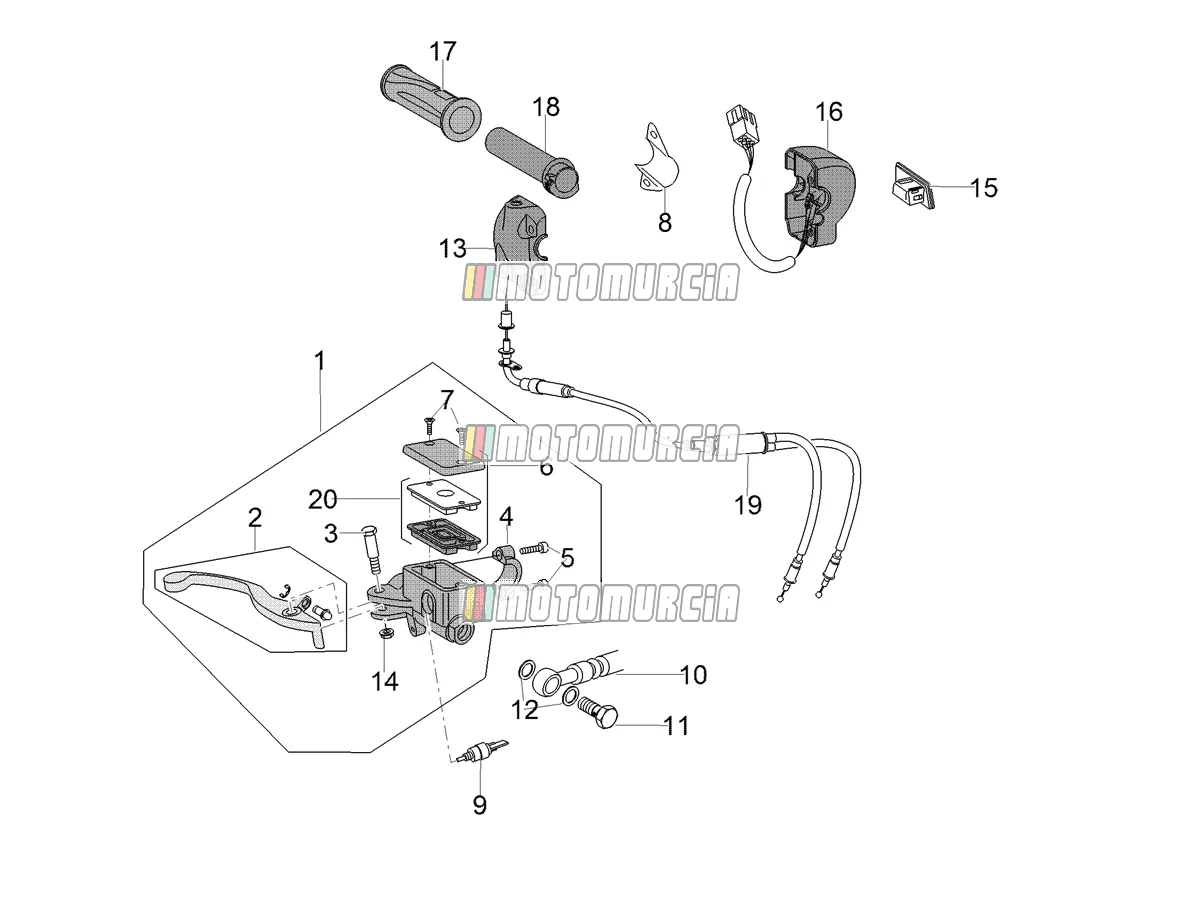

Exploded view — Brake System » Front Master Cilinder

‹ Back to model

Aprilia Scarabeo 50 2T Classic 2019

Products

Position: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

1 Brake hydraulic pump Available CM074904

Master brake cylinder right Piaggio Group · CM074904 Available

€ 124,91

2 Brake lever Available 497042

Brake Lever silver Piaggio Group · 497042 Available

€ 13,37

3 Brake lever pin Backorder AP8213584

Screw Piaggio Group · AP8213584 Backorder

€ 14,90

4 Brake lever U-bolt Available AP8213586

Handlebar clamp bracket Piaggio Group · AP8213586 Available

€ 36,08

5 Cap screw Available AP8213582

Screw Heng Tong Piaggio Group · AP8213582 · Quantity needed: 2 Available

€ 14,33

6 Pump cover Backorder AP8213587

Brake Cylinder Cover Piaggio Group · AP8213587 Backorder

€ 53,69

7 Screw (HT) Available AP8213583

Screw Heng Tong Piaggio Group · AP8213583 · Quantity needed: 2 Available

€ 14,33

8 U-bolt Backorder AP8118570

Clamp Piaggio Group · AP8118570 Backorder

€ 8,17

9 Brake light switch Available 642032

Stop light switch Piaggio Group · 642032 · Quantity needed: 2 Available

€ 11,54

10 Brake hose Backorder 1C003597

Brake line, front Piaggio Group · 1C003597 Backorder

€ 66,42

11 Screw (spec) 1C002059R No longer available

1C002059R Screw (spec)
No longer available

12 Washer gasket Available 127927

Copper Flange Gasket 10x16x1 mm Piaggio Group · 127927 · Quantity needed: 2 Available

€ 1,31

13 Rh light control cover Backorder AP8118569

Lid, right Piaggio Group · AP8118569 Backorder

€ 51,01

14 Nut Available AP8213585

Standard nut Piaggio Group · AP8213585 Available

€ 8,57

15 Cover Backorder AP8224539

Lid Piaggio Group · AP8224539 Backorder

€ 5,34

16 Rh lights sel. w/wiring Backorder 852240

Light switch Piaggio Group · 852240 Backorder

€ 127,47

17 Throttle grip Right Available 896564

Rubber Grip Set Piaggio Group · 896564 Available

€ 15,56

18 Throttle grip Available AP8218214

Throttle grip Piaggio Group · AP8218214 Available

€ 16,26

19 Throttle Backorder 2B000830

Throttle cable Piaggio Group · 2B000830 Backorder

€ 94,14

20 Brake repair set AP8113636 No longer available

AP8113636 Brake repair set
No longer available
