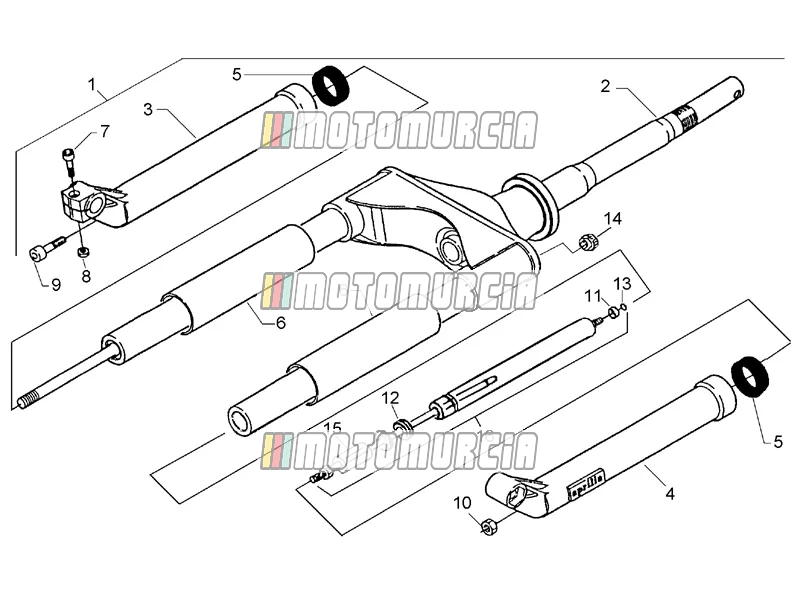

Exploded view — Frame » Front Fork

Products

1 Front fork 854575 No longer available

• 854575 Front fork
  No longer available

2 Stem base AP8203711 No longer available

• AP8203711 Stem base
  No longer available

3 Fork tube Right AP8203636 No longer available

• AP8203636 Fork tube Right
  No longer available

4 Fork tube Left AP8203637 No longer available

• AP8203637 Fork tube Left
  No longer available

5 Fork oil seal (M) Available AP8163565

•

  Fork Seal 28x38x8/9 mm Piaggio Group · AP8163565 Available

  € 16,37

  Add to cart

6 Tube protection, pair AP8203938 No longer available

• AP8203938 Tube protection, pair
  No longer available

7 Screw AP8203639 No longer available

• AP8203639 Screw
  No longer available

8 Nut AP8203638 No longer available

• AP8203638 Nut
  No longer available

9 Screw AP8203717 No longer available

• AP8203717 Screw
  No longer available

10 Cap nut AP8203689 No longer available

• AP8203689 Cap nut
  No longer available

11 Washer AP8203706 No longer available

• AP8203706 Washer
  No longer available

12 Stop washer AP8203707 No longer available

• AP8203707 Stop washer
  No longer available

13 Stop ring AP8203709 No longer available

• AP8203709 Stop ring
  No longer available

14 Sleeve plug Backorder AP8203710

•

  Screw Plug Piaggio Group · AP8203710 Backorder

  € 30,64

  Add to cart

15 Rubber bumper h36 AP8203713 No longer available

• AP8203713 Rubber bumper h36
  No longer available

16 Plunger, complete AP8203716 No longer available

• AP8203716 Plunger, complete
  No longer available
