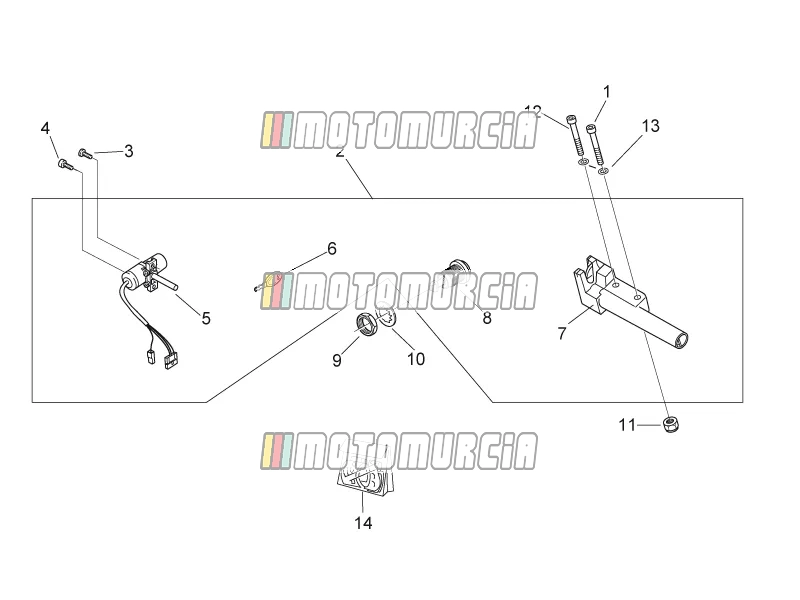

Exploded view — Frame » Lock Hardware Kit - Decals

‹ Back to model

Aprilia Scarabeo 50 2T NET 2009

Products

2 Lock kit Backorder AP8202452

Lock Set Piaggio Group · AP8202452 Backorder

€ 141,17

3 Screw Available AP8152140

Shear / Snap Off Screw M6x17 Piaggio Group · AP8152140 Available

€ 2,63

4 Screw Available AP8150137

Screw M6x16 Piaggio Group · AP8150137 Available

€ 1,48

5 Main switch - steering lock 860579 No longer available

860579 Main switch - steering lock
No longer available

6 Key blank Backorder AP8104598

Key Blank with Transponder Piaggio Group · AP8104598 Backorder

€ 17,35

7 Saddle lock Backorder AP8202355

Seat Lock Piaggio Group · AP8202355 Backorder

€ 97,95

8 Box lock Available AP8104600

Lock Piaggio Group · AP8104600 Available

€ 94,26

9 Nut Available AP8152194

Standard nut Piaggio Group · AP8152194 Available

€ 2,77

10 Washer Available AP8221312

Toothed Lock Washer Piaggio Group · AP8221312 Available

€ 2,18

11 Nut Available AP8150430

Standard nut Piaggio Group · AP8150430 · Quantity needed: 2 Available

€ 1,48

12 Screw Available AP8152284

Flanged Screw M6x45 Piaggio Group · AP8152284 Available

€ 2,18

13 Washer Available AP8150014

Shim Piaggio Group · AP8150014 · Quantity needed: 2 Available

€ 1,48

14 Decal set net 897407 No longer available

897407 Decal set net
No longer available
