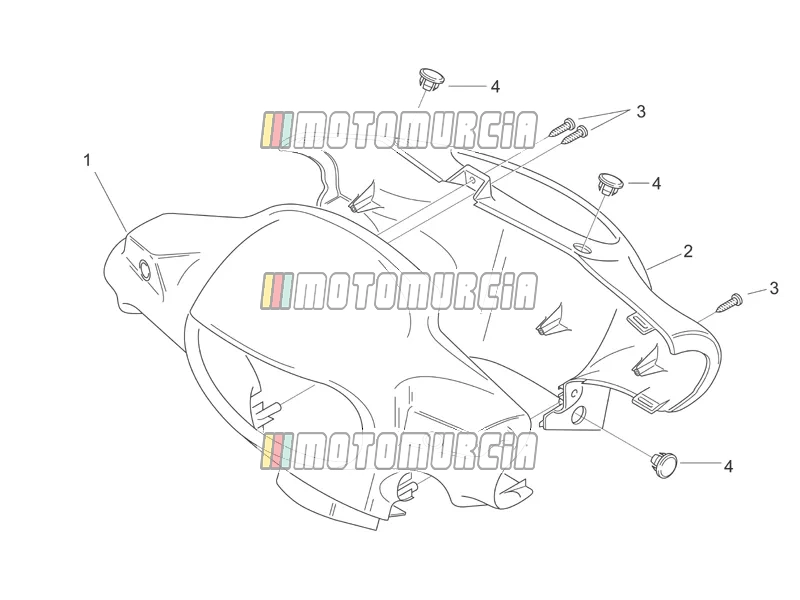

Exploded view Frame » Front Body I - Headlight Support — Aprilia Scarabeo 50 2T (Piaggio) 2006

‹ Back to model
Aprilia Scarabeo 50 2T (Piaggio) 2006 Aprilia Scarabeo 50 2T (Piaggio) 2006
Frame » Front Body I - Headlight Support

Products

1 Headlight support, white AP8268365 No longer available
  • AP8268365 Headlight support, white
    • Colour: Cambridge White 2005
    • Colour: Cambridge White 2005 (s.t.15020)
    • Colour: Cambridge white 2006 (s.t.15243)
    • Without decals
    • Year of manufacture: 2005
    • Year of manufacture: 2006
    No longer available
  • AP8179654 Headlight support, cyan
    • Colour: Coast Cyan 2006 (s.t.15244)
    • Without decals
    • Year of manufacture: 2006
    No longer available
  • AP8268361 Headlight support, grey
    • Colour: Titanic Grey 2005
    • Colour: Titanic Grey 2005 (s.t.15019)
    • Without decals
    • Year of manufacture: 2005
    No longer available
  • AP8179667 Headlight support, pink
    • Colour: Make-Up rose 2006 (s.t.15245)
    • Without decals
    • Year of manufacture: 2006
    No longer available
  • AP8268194 Headlight support, black varn.
    • Colour: Aprilia Black 2005 (s.t.15018)
    • Colour: Aprilia Black 2006 (s.t.15242)
    • Colour: Aprilia black 2004
    • Without decals
    No longer available
  • AP8268184 Headlight support, blue
    • Colour: Main Blue (s.t.15017)
    • Colour: Main Blue 2004
    • Without decals
    • Year of manufacture: 2004
    • Year of manufacture: 2005
    No longer available
2 Cyan dashboard pane AP8179660 No longer available
  • AP8179660 Cyan dashboard pane
    • Colour: Coast Cyan 2006 (s.t.15244)
    • Year of manufacture: 2006
    No longer available
  • AP8268371 Dashboard panel, white
    • Colour: Cambridge White 2005
    • Colour: Cambridge White 2005 (s.t.15020)
    • Year of manufacture: 2005
    No longer available
  • AP8268200 Dashboard panel, black a.
    • Colour: Aprilia Black 2005 (s.t.15018)
    • Colour: Aprilia black 2004
    • Year of manufacture: 2004
    • Year of manufacture: 2005
    No longer available
  • AP8179643 Dashboard panel, black d.
    • Colour: Aprilia Black 2006 (s.t.15242)
    • Year of manufacture: 2006
    No longer available
  • AP8179650 Dashboard panel, grey
    • Colour: Cambridge white 2006 (s.t.15243)
    • Year of manufacture: 2006
    No longer available
  • AP8179673 Pink dashboard pane
    • Colour: Make-Up rose 2006 (s.t.15245)
    • Year of manufacture: 2006
    No longer available
  • AP8268190 Dashboard panel, blue
    • Colour: Main Blue (s.t.15017)
    • Colour: Main Blue 2004
    • Year of manufacture: 2004
    • Year of manufacture: 2005
    No longer available
  • AP8268357 Dashboard panel, grey
    • Colour: Titanic Grey 2005
    • Colour: Titanic Grey 2005 (s.t.15019)
    • Year of manufacture: 2005
    No longer available
3 Screw Available AP8150421
    • Colour: Alitalia (t.s.899864)
    • Colour: Replica Alitalia (t.s.899863)
    • Colour: Replica MY13
    • Colour: Replica SBK MY12
    • Country: Canada
    • Country: Italy
    • Country: United States of America
    Thread Screw 2,9x12 mm, stainless steel Piaggio Group · AP8150421 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 2,18
4 Black plug d14 AP8258641 No longer available
  • AP8258641 Black plug d14 Quantity needed: 3
    • Colour: Aprilia Black 2002
    • Colour: Aprilia Black 2005 (s.t.15018)
    • Colour: Aprilia black "Graphique" 2004
    • Colour: Aprilia black 2004
    No longer available
  • AP8268374 Plug, white d14 Quantity needed: 3
    • Colour: Cambridge White 2005
    • Colour: Cambridge White 2005 (s.t.15020)
    • Year of manufacture: 2005
    No longer available
  • AP8179646 Black plug d14 Quantity needed: 3
    • Colour: Aprilia Black 2006 (s.t.15242)
    • Year of manufacture: 2006
    No longer available
  • AP8268360 Grey plug d14 Quantity needed: 3
    • Colour: Titanic Grey 2005
    • Colour: Titanic Grey 2005 (s.t.15019)
    • Year of manufacture: 2005
    No longer available
  • AP8179663 Cyan plug d14 Quantity needed: 3
    • Colour: Coast Cyan 2006 (s.t.15244)
    • Year of manufacture: 2006
    No longer available
  • AP8179676 Pink plug d14 Quantity needed: 3
    • Colour: Make-Up rose 2006 (s.t.15245)
    • Year of manufacture: 2006
    No longer available
  • AP8258895 Blue plug d14 Quantity needed: 3
    • Colour: Main Blue (s.t.15017)
    • Colour: Main Blue 2003
    • Colour: Main Blue 2004
    No longer available
  • AP8179653 Grey plug d14 Quantity needed: 3
    • Colour: Cambridge white 2006 (s.t.15243)
    • Year of manufacture: 2006
    No longer available
