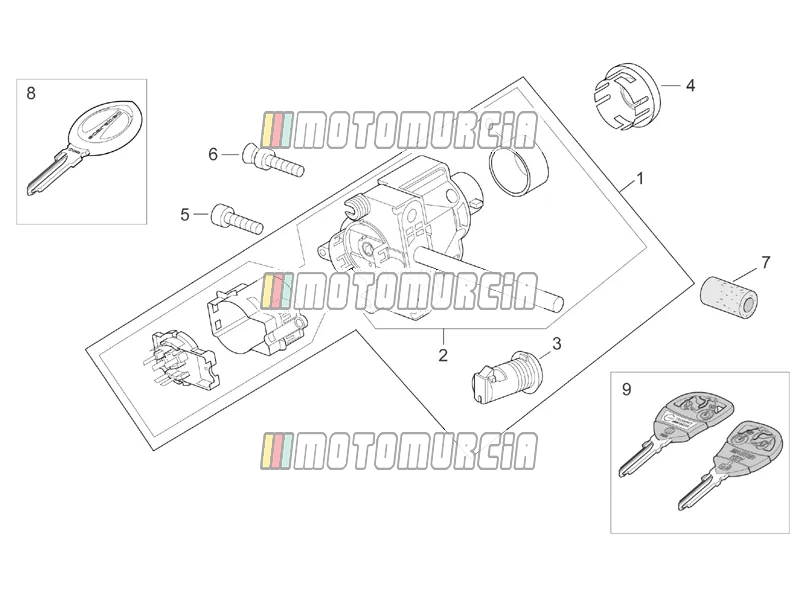

Exploded view — Frame » Lock Hardware Kit

‹ Back to model

Aprilia Scarabeo 500 2004

Aprilia Scarabeo 500 2004

Frame » Lock Hardware Kit

Products

1 Lock kit AP8104202 No longer available

AP8104202 Lock kit
No longer available

2 Main switch - steering lock Backorder AP8127460

Steering Lock Piaggio Group · AP8127460 Backorder

€ 494,59

3 Top box lock AP8104584 No longer available

AP8104584 Top box lock
No longer available

4 Cover Backorder AP8104779

Covering Cap Piaggio Group · AP8104779 Backorder

€ 4,85

5 Screw Available AP8150165

Screw M6x25 Piaggio Group · AP8150165 Available

€ 1,21

6 Screw Available AP8152330

Shear / Snap Off Screw M6x25 Piaggio Group · AP8152330 Available

€ 12,83

7 Pipe Backorder 890514

Pipe Piaggio Group · 890514 Backorder

€ 13,44

8 Key blank Backorder AP8140669

Key Blank with Transponder Piaggio Group · AP8140669 Backorder

€ 100,32

9 Master key with transpo. AP8104607 No longer available

AP8104607 Master key with transpo.
No longer available

10 Immobilizer antenna AP8104697 No longer available

AP8104697 Immobilizer antenna
No longer available
