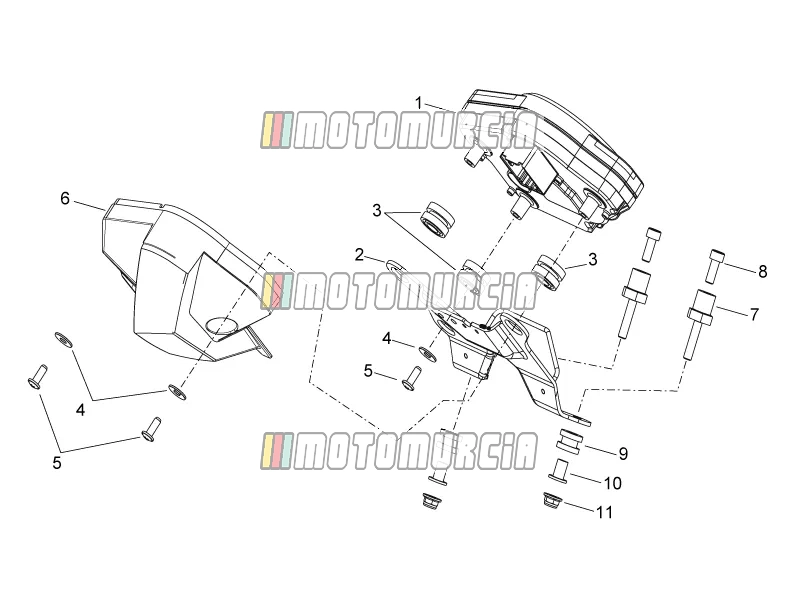

Exploded view — Dashboard

Products

1 Dashboard Available 896370

•

  Instrument Cluster Piaggio Group · 896370 Available

  € 689,70

  Add to cart

2 Socket support Available 854592

•

  Bracket Piaggio Group · 854592 Available

  € 49,17

  Add to cart

3 Spacer (rubber) Available AP8144662

•

  Vibrations Damper Piaggio Group · AP8144662 · Quantity needed: 3 Available

  € 7,66

  Add to cart

4 Washer Available AP8150382

•

  Shim 15x5,5x1,2 mm Piaggio Group · AP8150382 · Quantity needed: 3 Available

  € 2,18

  Add to cart

5 Screw Available AP8150509

•

  Thread Screw Piaggio Group · AP8150509 · Quantity needed: 3 Available

  € 2,35

  Add to cart

6 Dashboard cover Available 851636

•

  Housing Piaggio Group · 851636 Available

  € 19,01

  Add to cart

7 Screw (spec) Available 853212

•

  Screw Piaggio Group · 853212 · Quantity needed: 2 Available

  € 11,70

  Add to cart

8 Screw Available AP8150137

•

  Screw M6x16 Piaggio Group · AP8150137 · Quantity needed: 2 Available

  € 1,48

  Add to cart

9 Damper Available AP8220370

•

  Rubber Piaggio Group · AP8220370 · Quantity needed: 2 Available

  € 3,84

  Add to cart

10 Spacer Available AP8121725

•

  Sleeve Piaggio Group · AP8121725 · Quantity needed: 2 Available

  € 2,18

  Add to cart

11 Nut Available AP8152299

•

  Collar nut M6, self-locking Piaggio Group · AP8152299 · Quantity needed: 2 Available

  € 2,18

  Add to cart
