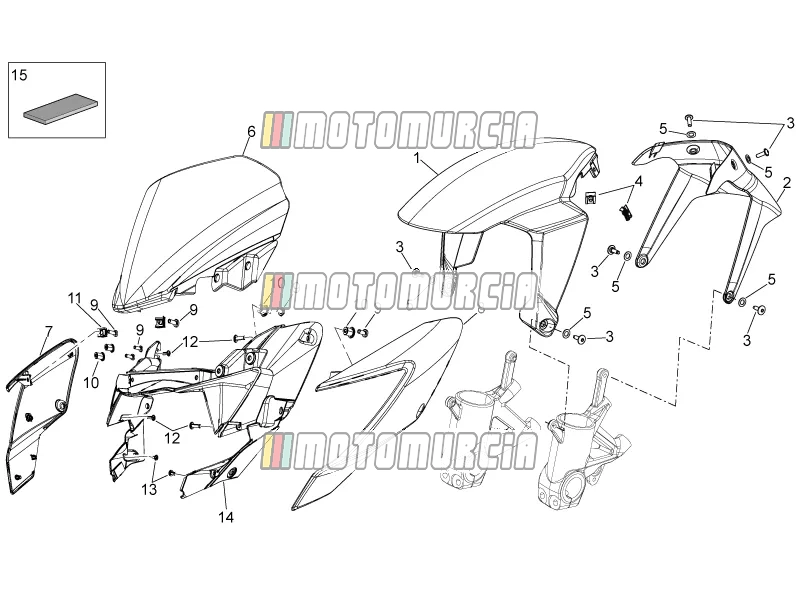

Exploded view — Front Body - Front Mudguard
‹ Back to model
Aprilia Shiver 750 2014
Products
1 Front mudguard
-
86054000XN5 Front mudguard
- Colour: Aprilia Black
- Colour: Competition Black
- Colour: Glam white
- Without decals
- Year of manufacture: 2012
-
- Colour: Aprilia Black
- Colour: Crowd Silver
- Colour: Fluo Red (s.t.893088)
- With 2 connections
- Without decals
Mudguard front, red, Suffix: XR4_red fluo Piaggio Group · 86054000XR4 Available · Shipped in 3–5 working days€ 289,87
2 Front mudguard rear side black Backorder
-
- Without decals
Mudguard without decals, front, black Piaggio Group · 85166600XN3 Backorder · Shipped in 2–4 weeks€ 11,37
3 Screw Available
-
- Country: Australia
Flanged Screw M5x9 Piaggio Group · AP8152339 · Quantity needed: 6 Available · Shipped in 3–5 working days€ 2,35
4 Clip nuts (M5) Available
-
Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,47
5 Washer (spring) Available
-
- Colour: Tuscany Tibet 2003
- Year of manufacture: 2012
- Year of manufacture: 2013
- Country: Japan
- Country: United States of America
Shim 8,5x15x0,8 mm Piaggio Group · AP8150376 · Quantity needed: 6 Available · Shipped in 3–5 working days€ 2,04
6 Windshield Backorder
-
Cockpit screen Piaggio Group · 895992 Backorder · Shipped in 2–4 weeks€ 90,51
7 RH side panel, red
-
89599300XR4 RH side panel, red
- Colour: Aprilia Black
- Without decals
-
89599300XN5 Black painted cup. right side cover
- Colour: Aprilia Black
- Colour: Formula red
- Colour: Glam white
- Without decals
- Year of manufacture: 2012
-
- Colour: Crowd Silver
- Without decals
Side Fairing, right, silver, Suffix: XE4_silver crowd Piaggio Group · 89599300XE4 Available · Shipped in 3–5 working days€ 156,25
8 LH side panel, silver Backorder
-
- Colour: Crowd Silver
- Without decals
Side Fairing, left, silver, Suffix: XE4_silver crowd Piaggio Group · 89599400XE4 Backorder · Shipped in 2–4 weeks€ 156,25 -
- Colour: Aprilia Black
- Colour: Formula red
- Colour: Glam white
- Without decals
- Year of manufacture: 2012
Side Fairing, without decals left, black, Suffix: XN5_black Piaggio Group · 89599400XN5 Available · Shipped in 3–5 working days€ 133,72 -
89599400XR4 LH side panel, red
- Colour: Aprilia Black
- Without decals
9 5 - Screw Available
-
Oval Head Screw M4x12 Piaggio Group · AP8150359 · Quantity needed: 6 Available · Shipped in 3–5 working days€ 1,48
10 Rubber w/ insert M4 Available
-
- "R - Factory" 2004-2005 version
- "R" 2002-2003 version
Buffer M4 Piaggio Group · AP8144564 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 3,18
11 Clip M4 (M4) Available
-
- Country: Canada
- Country: United States of America
Sheet nut M4 Piaggio Group · AP8102381 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 4,51
12 Screw Available
-
- Colour: Alitalia (t.s.899864)
- Colour: Replica Alitalia (t.s.899863)
- Colour: Replica MY13
- Colour: Replica SBK MY12
Thread Screw 3,9x14 mm, stainless steel Piaggio Group · AP8150413 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 1,80
13 Screw Available
-
- Habana Retro version
- Mojito Retro version
Thread Screw stainless steel Piaggio Group · AP8150420 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,18
14 Central dashboard - Front f.
-
895995 Central dashboard - Front f.No longer available
15 Damper Available
-
- Colour: Multimedia platform
- ETV Capo Nord RALLY/RAID version
- ETV Capo Nord Standard version
Thermal Protection Piaggio Group · AP8117033 · Quantity needed: 3 Available · Shipped in 3–5 working days€ 8,66
