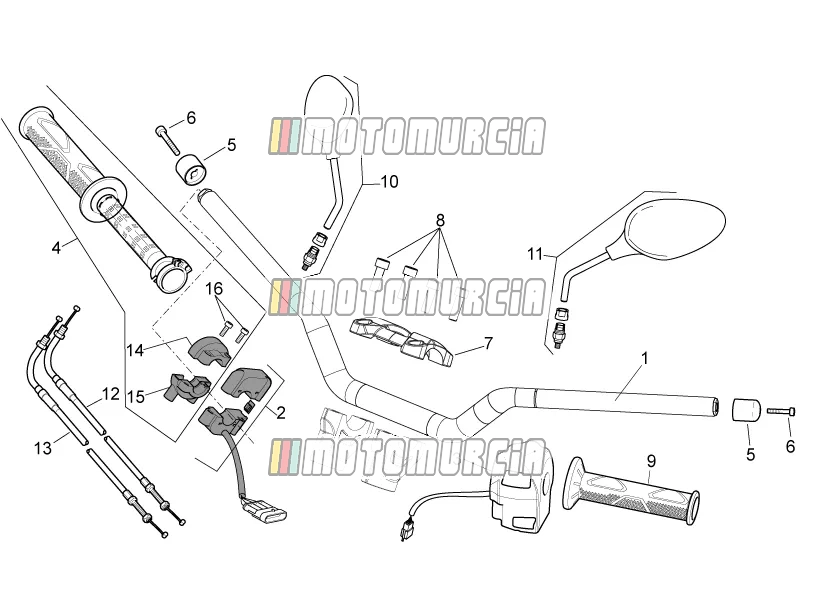

Exploded view — Handlebar - Controls
‹ Back to model
Aprilia Shiver 750 2016
Products
1 Handlebar Available
-
Handlebar Piaggio Group · 894779 Available · Shipped in 3–5 working days€ 206,21
2 RH lights selector Available
-
Combination switch, right Piaggio Group · B045066 Available · Shipped in 3–5 working days€ 85,96
3 LH lights selector Available
-
Combination switch, left Piaggio Group · 896107 Available · Shipped in 3–5 working days€ 203,30
4 Throttle cpl. Available
-
- From frame KT 111278
Throttle grip Piaggio Group · GU01603380 Available · Shipped in 3–5 working days€ 254,56
5 Handlebar weight Available
-
Handlebar end weights black Piaggio Group · AP8104509 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 34,18
6 Screw Available
-
- Year of manufacture: MY 2024/2025
Screw M6x40 Piaggio Group · AP8152003 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,48
7 Upper U-bolt Available
-
- Handlebar Ø22
- Tubular diameter 22 mm
- Country: Australia
- Country: Europe
- Country: Japan
Handlebar clamp bracket top Piaggio Group · 851901 Available · Shipped in 3–5 working days€ 131,04
8 Screw (M8x25 INOX) Available
-
Screw M8x25, inox Piaggio Group · AP8152486 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 8,19
9 Grip Left Available
-
- From frame KT 111278
Rubber Grip left Piaggio Group · AP8118579 Available · Shipped in 3–5 working days€ 24,10
10 Mirror right Available
-
- Year of manufacture: 2010
- Country: Europe
- Country: Great Britain
- Country: Japan
Mirror, right Piaggio Group · AP8104921 Available · Shipped in 3–5 working days€ 55,53Alternatives from other brands
Universal Mirror Right GHMparts · E113D Available · Shipped in 4–7 working days€ 29,95
11 Mirror left Available
-
- Year of manufacture: 2010
- Country: Europe
- Country: Great Britain
- Country: Japan
Mirror, left Piaggio Group · AP8104922 Available · Shipped in 3–5 working days€ 55,53Alternatives from other brands
Universal Mirror Left GHMparts · E113I Available · Shipped in 4–7 working days€ 29,95
12 Throttle cable (opening)
-
895476 Throttle cable (opening)No longer available
13 Throttle cable (closing) Available
-
Throttle cable closing Piaggio Group · 895477 Available · Shipped in 3–5 working days€ 41,07
14 Rear gas lever U-bolt Available
-
- ABS version
- From frame KT 111278
- Year of manufacture: 2012
- Year of manufacture: 2013
Shackle Piaggio Group · AP8118567 Available · Shipped in 3–5 working days€ 36,72
15 Front gas lever U-bolt
-
AP8118566 Front gas lever U-bolt
- ABS version
- From frame KT 111278
- Year of manufacture: 2012
- Year of manufacture: 2013
16 Cap screw Available
-
- ABS version
- From frame KT 111278
Screw Piaggio Group · AP8118492 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 14,34
