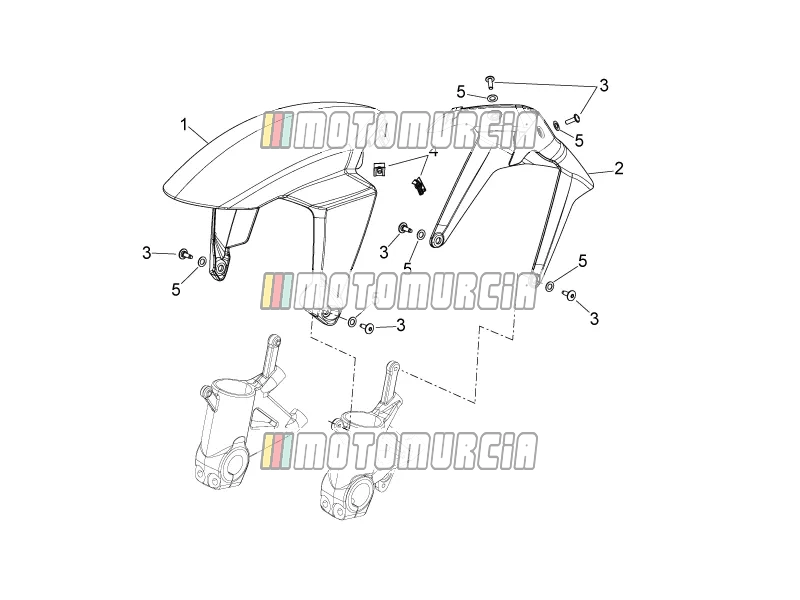

Exploded view — Front Body - Front Mudguard

‹ Back to model

Aprilia Shiver 750 GT 2013

Products

1 Front mudguard 86054000XN7 No longer available

86054000XN7 Front mudguard
- Colour: Competition Black 2009 (s.t.893088)
- Colour: Competition black (s.t.893615)
- With 2 connections
- Without decals
No longer available
86054000XE4 Front mudguard, grey
- Colour: Silver Crowd (s.t.893615)
- Without decals
No longer available
86054000XR5 Front mudguard (Red)
- Colour: Damasco Red 2009 (s.t.893088)
- Colour: Damasco red (s.t.893615)
- With 2 connections
- Without decals
No longer available

2 Front mudguard rear side black Backorder 85166600XN3

- Without decals
Mudguard without decals, front, black Piaggio Group · 85166600XN3 Backorder · Shipped in 2–4 weeks

€ 11,37
Mudguard grey, Suffix: XE9_grey Piaggio Group · 85166600XE9 Available · Shipped in 3–5 working days

€ 11,37

3 Screw Available AP8152339

- Country: Australia
Flanged Screw M5x9 Piaggio Group · AP8152339 · Quantity needed: 6 Available · Shipped in 3–5 working days

€ 2,35

4 Clip nuts (M5) Available AP8102375

Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 2,47

5 Washer (spring) Available AP8150376

- Colour: Tuscany Tibet 2003
- Year of manufacture: 2012
- Year of manufacture: 2013
- Country: Japan
- Country: United States of America
Shim 8,5x15x0,8 mm Piaggio Group · AP8150376 · Quantity needed: 6 Available · Shipped in 3–5 working days

€ 2,04
