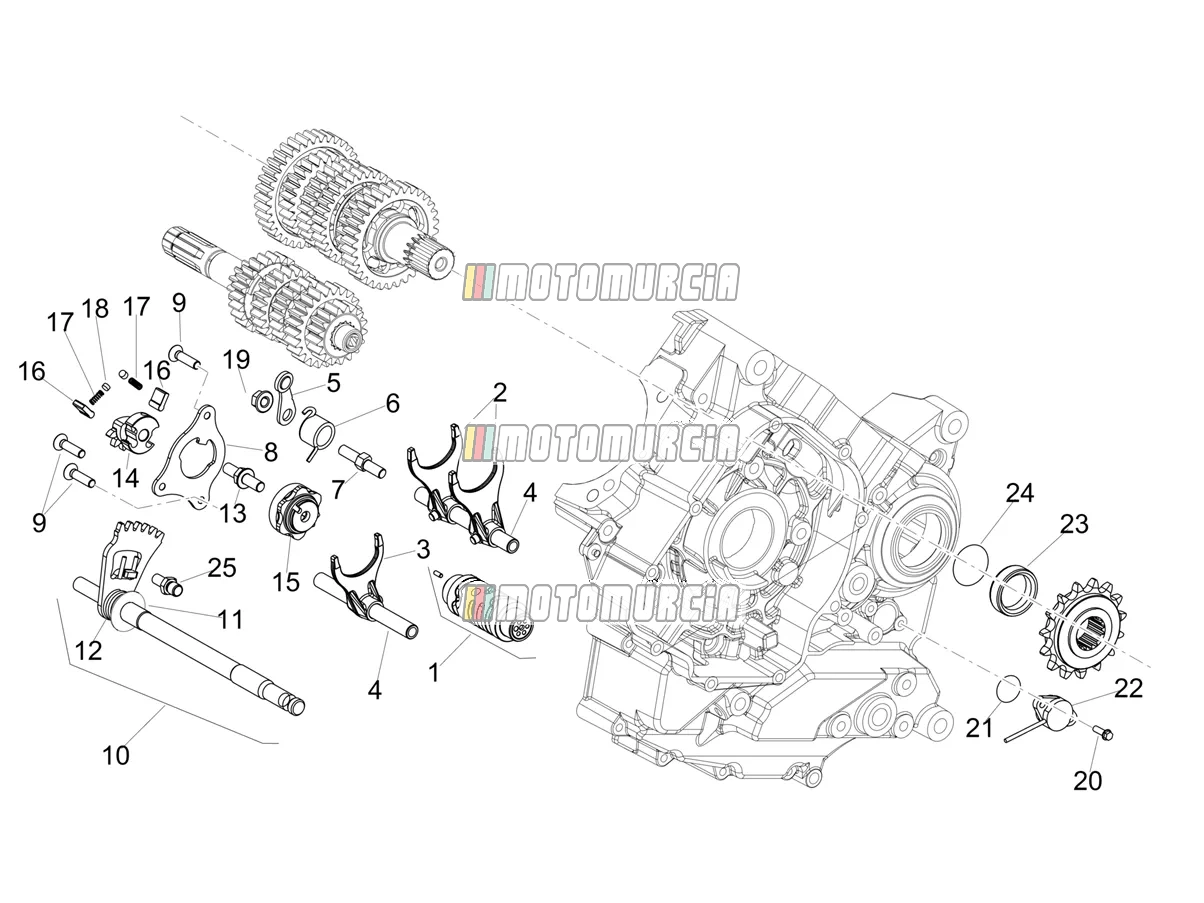

Exploded view — Gear Box / Selector / Shift Cam
‹ Back to model
Aprilia Shiver 900 ABS 2021
Products
1 Shift cam cpl. Backorder
-
Gear shift drum Piaggio Group · 1A004527 Backorder€ 176,85
2 Fork Available
-
Shift fork Piaggio Group · 849360 · Quantity needed: 2 Available€ 58,61
3 Fork output Available
-
Shift fork Piaggio Group · 874599 Available€ 62,28
4 Fork shaft Available
-
Gear Shift Shaft Piaggio Group · 873772 · Quantity needed: 2 Available€ 25,40
5 Index assy. lever Backorder
-
Index Lever Piaggio Group · 1A010982 Backorder€ 13,30
6 Gear stop lever spring Available
-
Spring Piaggio Group · B013306 Available€ 7,85
7 Threaded pin Backorder
-
Bolts Piaggio Group · B013928 Backorder€ 16,43
8 Selector lock plate Backorder
-
Stop Piaggio Group · 871649 Backorder€ 18,28
9 Screw Available
-
Screw Piaggio Group · 878867 · Quantity needed: 3 Available€ 2,77
10 Gear shaft+spring cpl. Available
-
Gear Shift Shaft Piaggio Group · B0144375 Available€ 119,50
11 Washer Available
-
Washer Piaggio Group · 971718 Available€ 1,61
12 Spring Backorder
-
Spring Piaggio Group · B014440 Backorder€ 8,66
13 Threaded pin M8x1,25 Available
-
Screw M8x1.25 Piaggio Group · 878870 Available€ 31,94
14 Shift cam plate Available
-
Pre-selector Piaggio Group · 872560 Available€ 65,28
15 Selector drum Available
-
Hub Piaggio Group · B017809 Available€ 65,76
16 Lever Available
-
Lever Piaggio Group · AP9150069 Available€ 9,14
17 Spring Available
-
Spring Piaggio Group · AP9150064 · Quantity needed: 2 Available€ 14,45
18 Spring pillar Backorder
-
Sleeve Piaggio Group · AP9150070 · Quantity needed: 2 Backorder€ 15,79
19 Self locking nut Available
-
Standard nut Piaggio Group · 597565 Available€ 1,26
20 Screw Available
-
Screw M5x16 Piaggio Group · B0167965 · Quantity needed: 2 Available€ 1,21
21 Packing Available
-
O-Ring Piaggio Group · 877441 Available€ 4,67
22 Gear position sensor Available
-
Position switch, for gearbox order Piaggio Group · 857265 Available€ 172,10
23 Spacer Available
-
Spacer Piaggio Group · 974558 Available€ 35,48
24 10 - O-Ring Available
-
O-Ring Piaggio Group · 871901 Available€ 1,32
25 Selector lock Available
-
Bolts Piaggio Group · 974130 Available€ 30,15
