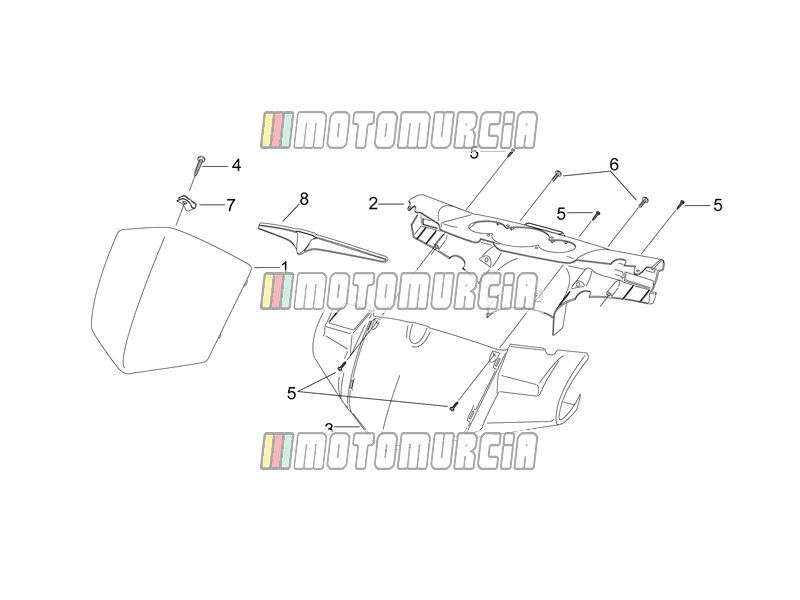

Exploded view — Front Body - Front Fairing

‹ Back to model

Aprilia Sonic 50 LC 2000

Products

1 Windshield, blue AP8239286 No longer available

AP8239286 Windshield, blue
No longer available
AP8258979 Windshield, blue
No longer available
AP8268732 Windshield, red
No longer available
AP8268236 Headlight windshield black
No longer available

2 Low. dashboard holder, black AP8248893 No longer available

AP8248893 Low. dashboard holder, black
No longer available
AP8248894 Low. dashboard holder, black
No longer available
AP8248032 Dashboard holder, met.azure
No longer available
AP8248921 Dashboard holder, grey
No longer available
AP8248922 Dashboard holder, grey
No longer available
AP8239996 Dashboard holder, titan. grey
No longer available
Handlebar Fairing, rear, red Piaggio Group · AP8239288 Available

€ 54,66
AP8248086 Dashboard holder, met.azure
No longer available
AP8239984 Dashboard holder, purple
No longer available
AP8239983 Dashboard holder, titan. grey
No longer available

3 Front fairing, hot red AP8258362 No longer available

AP8258362 Front fairing, hot red
No longer available
AP8248024 Front fairing, blade grey
No longer available
AP8249797 Front fairing, reef blue
No longer available
AP8184062 Front fairing, red
No longer available
AP8239289 Front fairing, Ap.black
No longer available
AP8258371 Front fairing, peltro grey
No longer available
AP8248015 Front fairing, solid azure
No longer available
AP8248934 Front fairing, chrome yellow
No longer available
AP8268556 Front fairing, Diablo black
No longer available

4 10 - Screw Available AP8150423

Oval Head Screw Piaggio Group · AP8150423 Available

€ 2,12

5 Screw Available AP8150413

Thread Screw 3,9x14 mm, stainless steel Piaggio Group · AP8150413 · Quantity needed: 5 Available

€ 1,69

6 Screw Available AP8152246

Screw M6x16 Piaggio Group · AP8152246 · Quantity needed: 4 Available

€ 4,37

7 Clip nuts Available AP8202449

Sheet nut Piaggio Group · AP8202449 Available

€ 2,18

8 Front fairing gasket Available AP8220528

Gasket Piaggio Group · AP8220528 Available

€ 6,97
