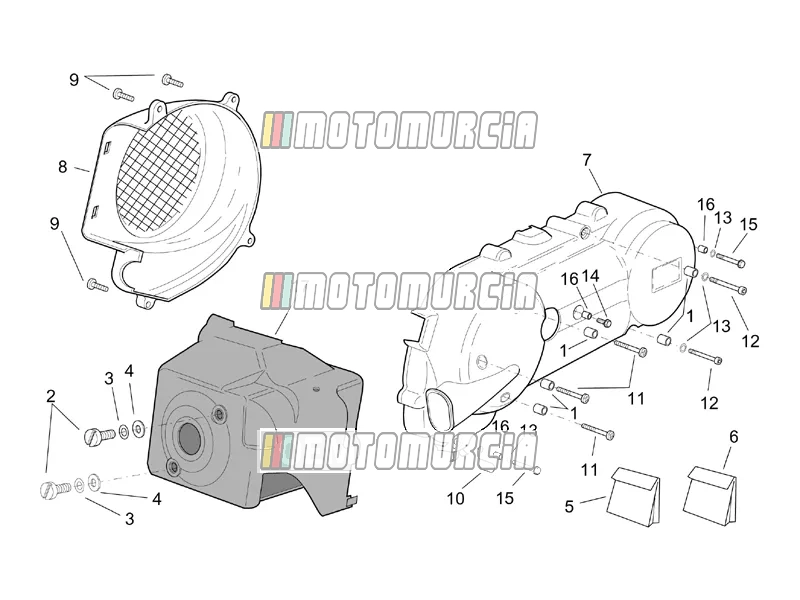

Exploded view — Engine Plastic

Products

1 Bush Available AP8121766

•

  Spacer Bush Piaggio Group · AP8121766 · Quantity needed: 5 Available

  € 8,00

  Add to cart

2 Screw Available 827061

•

  Screw Piaggio Group · 827061 · Quantity needed: 2 Available

  € 0,99

  Add to cart

3 Washer Available 006968

•

  Washer Piaggio Group · 006968 · Quantity needed: 2 Available

  € 1,26

  Add to cart

4 Washer Available 003038

•

  Shim 8,4x18x2 mm Piaggio Group · 003038 · Quantity needed: 2 Available

  € 1,43

  Add to cart

5 Oil seals kit Available 498406

•

  Engine Seal Kit Piaggio Group · 498406 Available

  € 81,66

  Add to cart

6 Engine set gasket AP8550167 No longer available

• AP8550167 Engine set gasket
  No longer available

7 Variator cover, black AP8149389 No longer available

• AP8149389 Variator cover, black
  No longer available
• AP8139704 Variator cover, grey
  No longer available

8 Cover AP8550168 No longer available

• AP8550168 Cover
  No longer available

9 Screw Available 015856

•

  Screw M5x21 Piaggio Group · 015856 · Quantity needed: 4 Available

  € 0,99

  Add to cart

10 Cable-guide Available AP8121889

•

  Cable Guide Piaggio Group · AP8121889 Available

  € 5,83

  Add to cart

11 Screw 484416 No longer available

• 484416 Screw Quantity needed: 3
  No longer available

12 Screw Available B016425

•

  Flanged Screw M6x60 Piaggio Group · B016425 · Quantity needed: 2 Available

  € 1,82

  Add to cart

13 Washer 017492 No longer available

• 017492 Washer Quantity needed: 5
  No longer available

14 Screw Available AP8152280

•

  Flanged Screw M6x25 Piaggio Group · AP8152280 Available

  € 2,77

  Add to cart

15 Screw Available AP8152284

•

  Flanged Screw M6x45 Piaggio Group · AP8152284 · Quantity needed: 2 Available

  € 2,18

  Add to cart

16 Spacer bush * AP8221043 No longer available

• AP8221043 Spacer bush * Quantity needed: 3
  No longer available

17 Cylinder air shroud 431323 No longer available

• 431323 Cylinder air shroud
  No longer available
