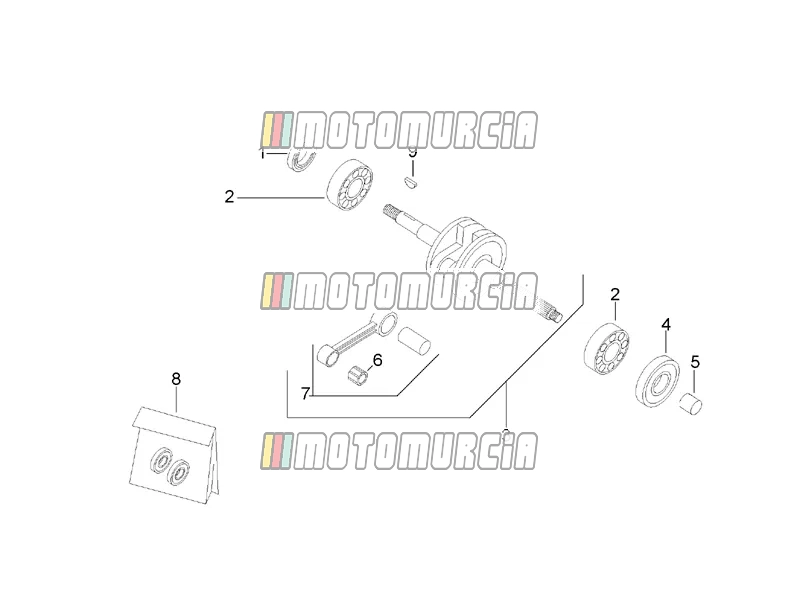

Exploded view — Connecting Rod Group

Products

1 Crankshaft oil seal AP8206212 No longer available

• AP8206212 Crankshaft oil seal
  No longer available

2 Bearing Available AP8509135

• • 6 gears


  BEARING D20X47X14 Piaggio Group · AP8509135 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 33,06

  Add to cart

  Alternatives from other brands



  Crankshaft Bearing Athena · MS200470140N4 Available · Shipped in 4–7 working days

  € 11,23

  Add to cart



  Crankshaft Bearing 6204/C4 Athena · MS200470140C4 Available · Shipped in 7–13 working days

  € 8,26

  Add to cart

3 Crankshaft AP8206501 No longer available

• AP8206501 Crankshaft
  No longer available

4 Crankshaft oil seal AP8206213 No longer available

• AP8206213 Crankshaft oil seal
  No longer available

5 Spacer AP8206187 No longer available

• AP8206187 Spacer
  No longer available

6 Needle bearing AP8206154 No longer available

• AP8206154 Needle bearing
  No longer available

7 Connecting rod AP8206223 No longer available

• AP8206223 Connecting rod
  No longer available

8 Oil seals kit AP8206500 No longer available

• AP8206500 Oil seals kit
  No longer available

9 2 - Woodruff key Available AP8206182

•

  Alternator wedge, 12,6x5x3 Piaggio Group · AP8206182 Available · Shipped in 3–5 working days

  € 4,79

  Add to cart
