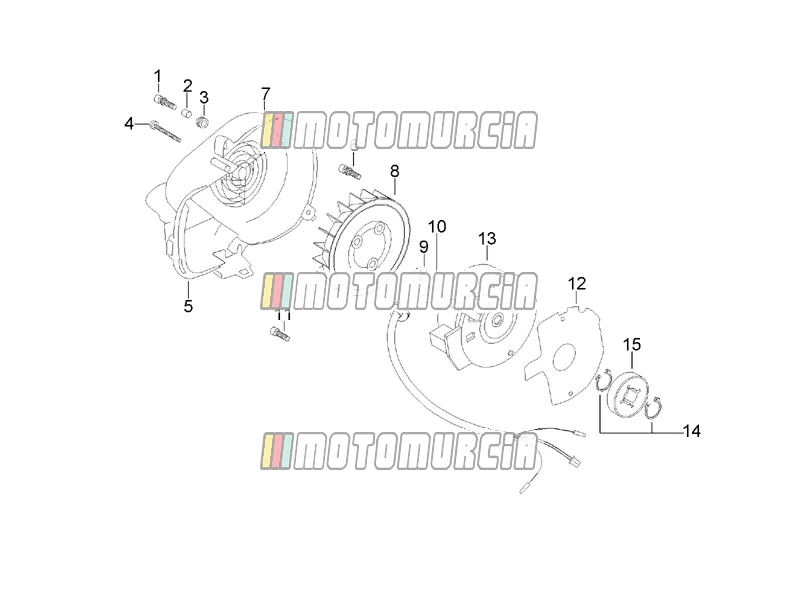

Exploded view — Flywheel

Products

1 Screw AP8206495 No longer available

• AP8206495 Screw Quantity needed: 2
  No longer available
• AP8206508 Screw Quantity needed: 2
  No longer available

2 Spacer AP8206480 No longer available

• AP8206480 Spacer
  No longer available

3 Silentblock AP8206471 No longer available

• AP8206471 Silentblock
  No longer available

4 Screw AP8206494 No longer available

• AP8206494 Screw
  No longer available

5 Duct gasket AP8206474 No longer available

• AP8206474 Duct gasket
  No longer available

6 Screw AP8206499 No longer available

• AP8206499 Screw Quantity needed: 3
  No longer available

7 Fan shroud AP8206528 No longer available

• AP8206528 Fan shroud
  No longer available

8 Plastic fan AP8206461 No longer available

• AP8206461 Plastic fan
  No longer available

9 Nut AP8206183 No longer available

• AP8206183 Nut Quantity needed: 2
  No longer available

10 Washer AP8206205 No longer available

• AP8206205 Washer
  No longer available

11 Screw M6x16 AP8502563 No longer available

• AP8502563 Screw M6x16 Quantity needed: 2
  No longer available

12 Flyw. stator gasket AP8206485 No longer available

• AP8206485 Flyw. stator gasket
  No longer available

13 Stator AP8206462 No longer available

• AP8206462 Stator
  No longer available

14 Seeger AP8206179 No longer available

• AP8206179 Seeger Quantity needed: 2
  No longer available

15 Oil pump drive gear AP8206746 No longer available

• AP8206746 Oil pump drive gear
  No longer available
